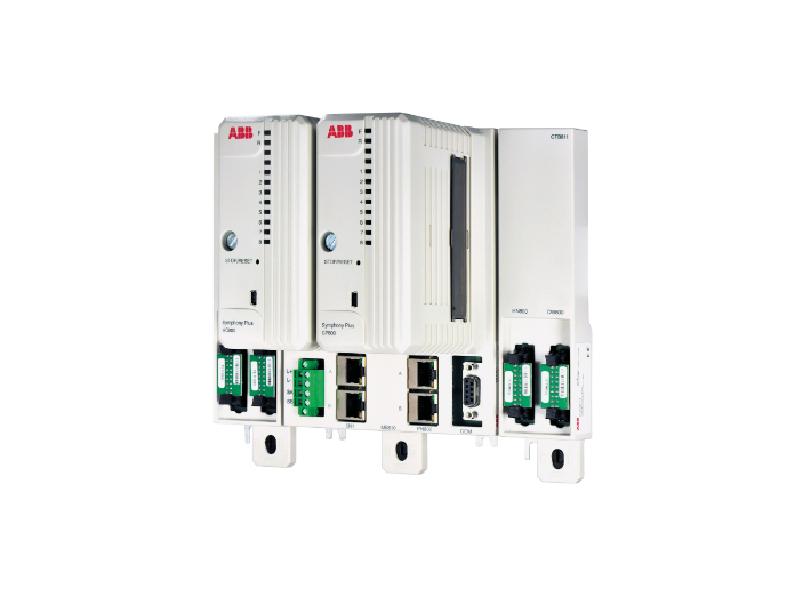

ABB HPC800 Control Processor Module of HPC800
Description:
The HPC800 is the latest in a long line of field-proven process controllers. Based on a 256 MHz, 32-bit Freescale Coldfire processor, the HPC800 controller can be adapted to a broad spectrum of applications and process requirements.
Configured by S+ Engineering tool, the HPC800 features an extensive library of more than 150 pre-defined control algorithms or function codes. These functions provide the ability to easily design complex control strategies to fit any control application, including continuous, sequential, batch and advanced control. In addition to standard function blocks, the HPC800 supports C programming, batch, and user defined function codes.

HPC800 controller features include:
− Simultaneous support for SD Series I/O, Harmony Rack I/O, and S800 I/O subsystems
− Execution of closed loop control of more than 5,000 I/O in less than 250 msec.
− Downloadable firmware
− Extended user configuration memory (NVRAM) and runtime memory (RAM)
− Support for 30,000 function blocks
− Flexible and online configuration capability
− Support for up to 8 segment tasks, each segment supporting execution cycle time down to 1 msec
− Dedicated redundant peer-to-peer controller communication bus supports update rates less than 100 msec

The HPC800 provides simultaneous support for SD Series I/O, Harmony Rack I/O and S800 I/O subsystems, and is capable of providing closed loop control for 5,000 I/O points in less than 250 msec. This provides great flexibility and a wide variety of input/output and signal condition capabilities, which in combination form the optimal automation solution.
Using standard function codes, the S+ Engineering Composer tool is used to configure and maintain all HPC800 I/O modules and channels.

Through a redundant I/O network, HN800, each HPC800 controller can communicate with up to 64 SD Series I/O modules, SD Series PDP800 PROFIBUS modules, or Harmony Rack RIO22 modules. Each PDP800 can drive more than 1,500 S800 I/O modules over PROFIBUS DP V2, while each RIO22 module can drive 64 Harmony Rack I/O modules. All HPC800 I/O can be configured as either local I/O or remote I/O or mixed. Remote I/O is communicated via a fiber optic extension. Sequence of events (SOE) with 1 msec timestamp resolution is available across the entire system.

HPC800K01 including:
1x HC800
1x CP800
1x MB810
1x CTB810
1x CTB811
4x TER8x0

HPC800K02 is Redundant HPC800 Controller Kit,  including:
2x HC800
2x CP800
2x MB810
1x CTB810
1x CTB811
4x TER8x0
