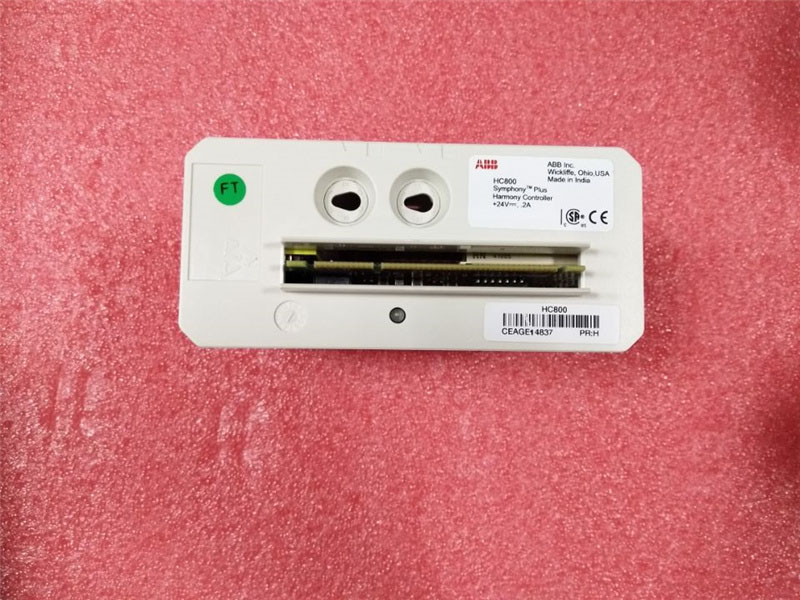

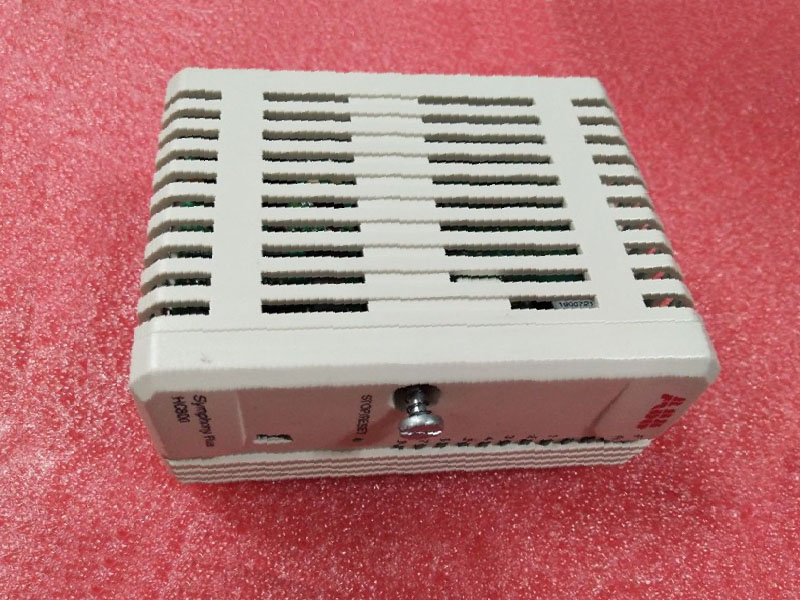

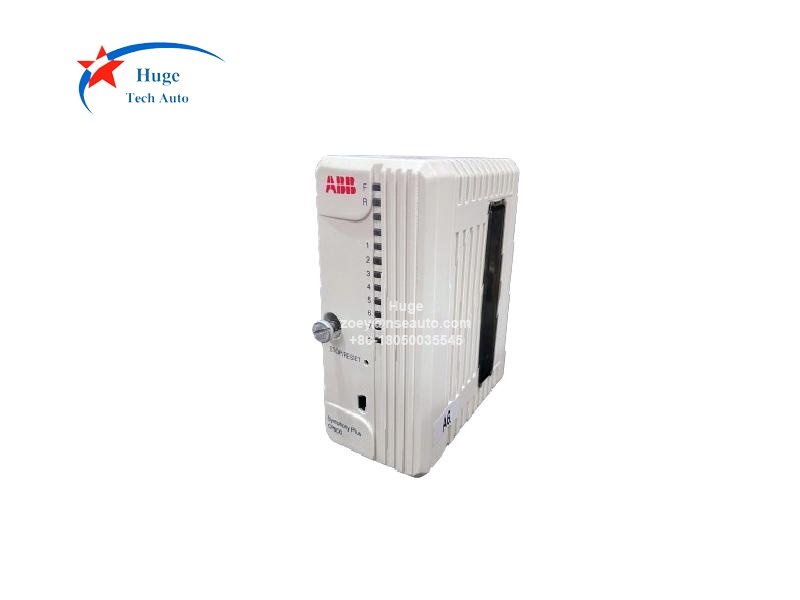

ABB HC800 Control Processor Module of HPC800
Description:
HC800 is ABB Symphony Plus Control Processor Module. HC800 is included in HPC800 controller. The HPC800 is a Harmonycontrol unit consisting of a CP800 that connects to the control network, and oneHC800 controller. Traditional Harmony systems' control units consist ofNIS/NPM modules and several controllers.

HC800 supports 30,000 Function Blocks, and ModBus TCP Communication. The memory of HPC800 is 64 MB DRAM, 4 MB ROM,2MB NVRAM.

The HC800 controller supports the PDP800 PROFIBUS Master device and the HAI805 and HAO805 HART masters. Thesemaster devices can be added under an HC800 controller. The PDP800 PROFIBUS master receives its configuration information from the HC800 controller.

Standard Symphony/Harmony function codes are used to specify the PROFIBUS slaves connected to the PDP800.
Power Requirements: 200 mA @ 24 VDC +/-10%, 5 W
Dimensions: 243.84 x 78.74 x 210.82 mm
