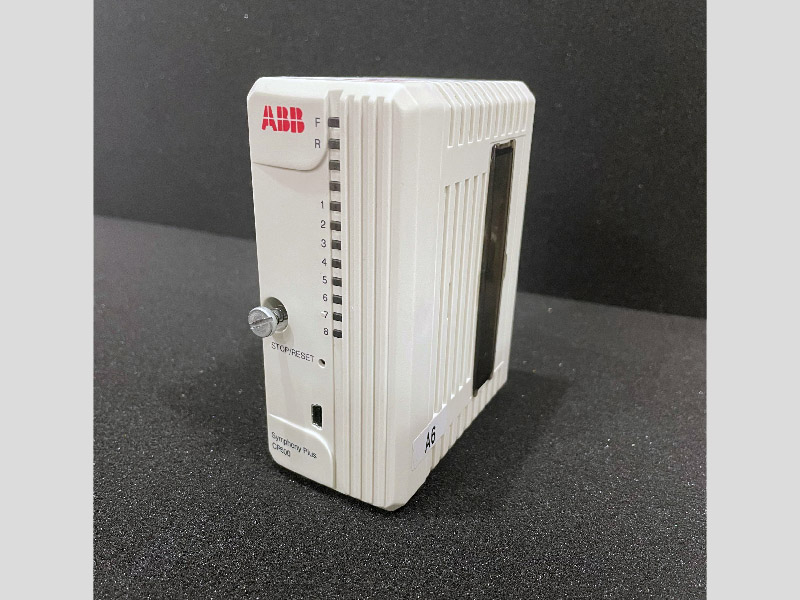

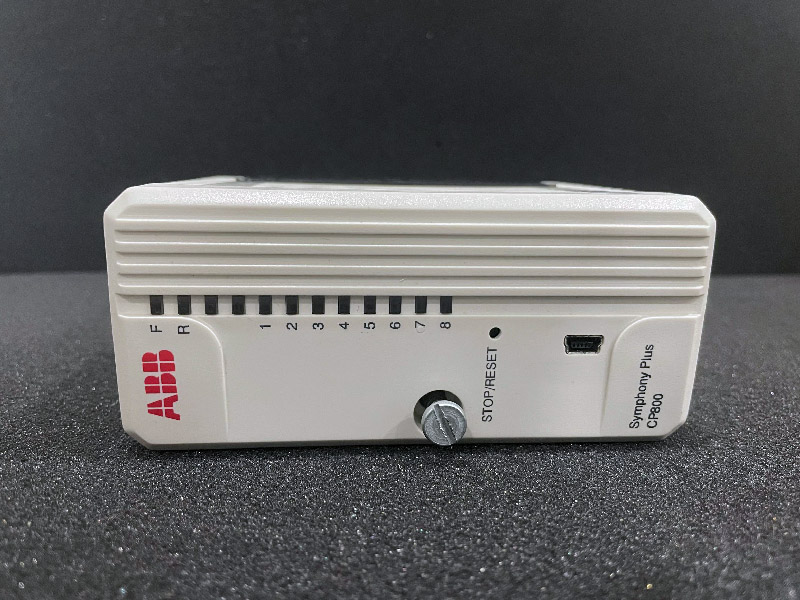

ABB CP800 Communication Processor Module
Description:

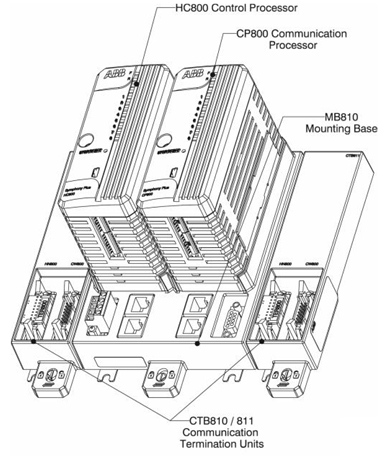

CP800 is designed as ABB Symphony Plus control system Communication Processor Module of HPC800. CP800 provides PN800 Plant Network Communications for HPC800.
CP800 is 64 MB DRAM, 4 MB ROM.

Included in Symphony Plus is a comprehensive suite of standards-based control hardware and software that meets the requirements of total plant automation. SD Series HPC800 represents the newest addition to the S+ Control family. HPC800 control-based system solutions feature modular DIN-rail packaging; a flexible, high-performance Fast Ethernet-based plant network; intelligent electrical and field device integration; PROFIBUS and HART communication protocols; integrated turbine control; an efficient, easy-to-use engineering tool, and a state-of-the-art HMI workplace.

Specifically, HPC800 solutions: − Use the extensive set of field-proven INFI 90 function code algorithms as previous generation controllers − Use traditional INFI-Net exception reporting over redundant 100 Mbps Fast-Ethernet (PN800) − Extend current Composer graphical design engineering tools with device management capabilities.

Temperature Range: 0 to +55 deg C-40 to +85 deg C
Relative Humidity (Non-Condensing)： 20% to 95% from 0deg C to 55 deg C
Control Programming：30,000INFI 90 Function Blocks, up to 8 segments (tasks) Batch 90, UDF and ‘C’ programs
Dimensions: 243.84x73.66x170.18 mm
Weight: 0.99kg
