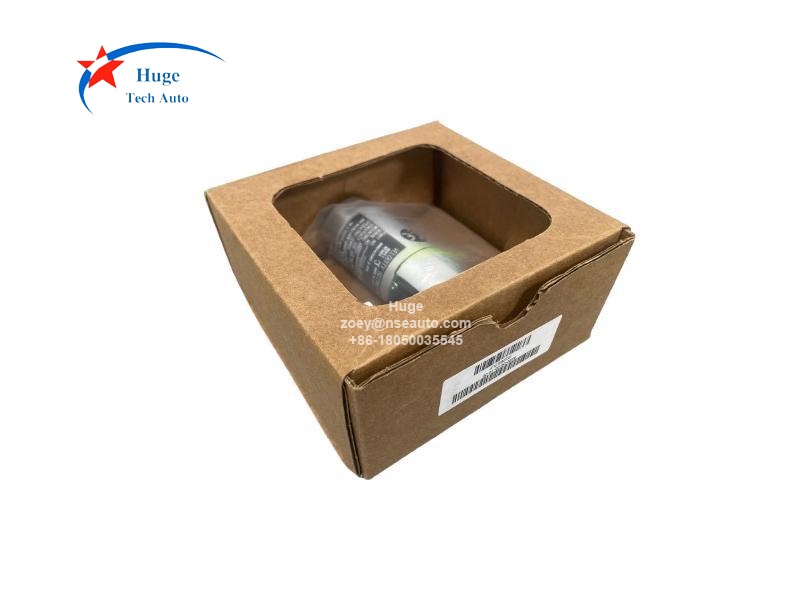

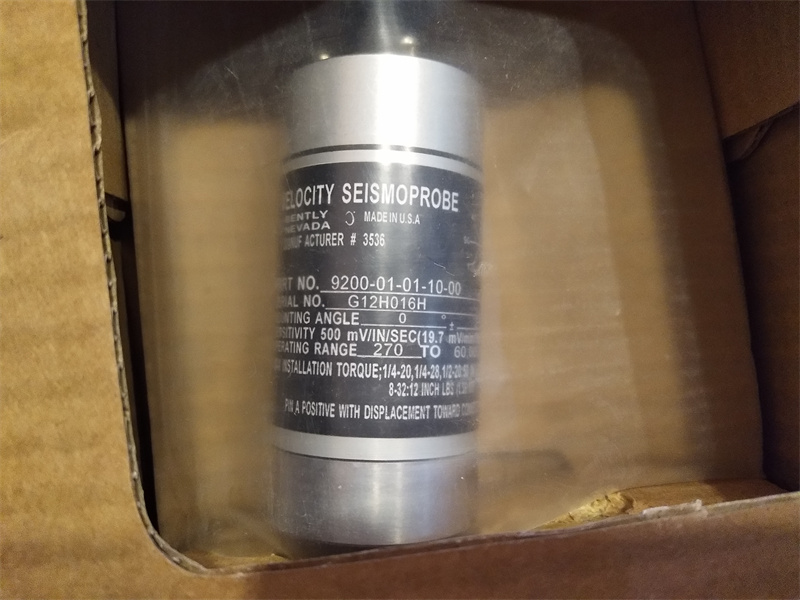

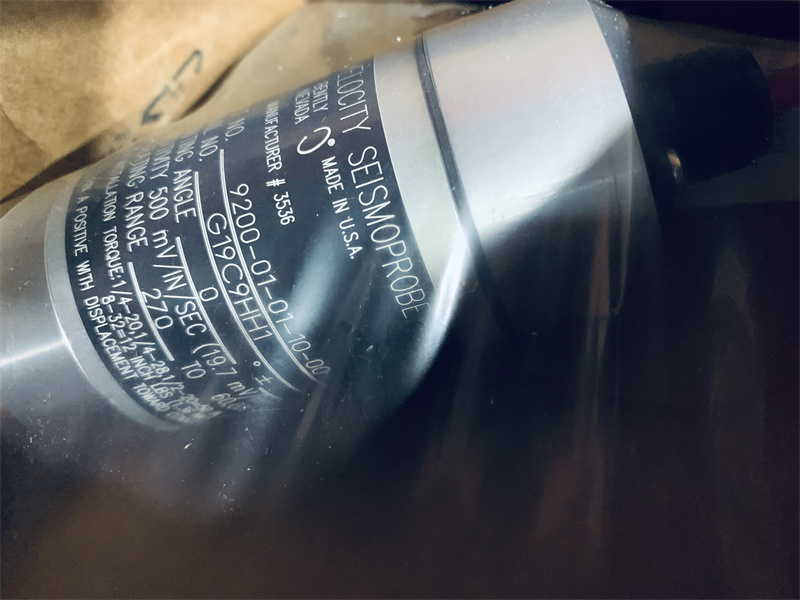

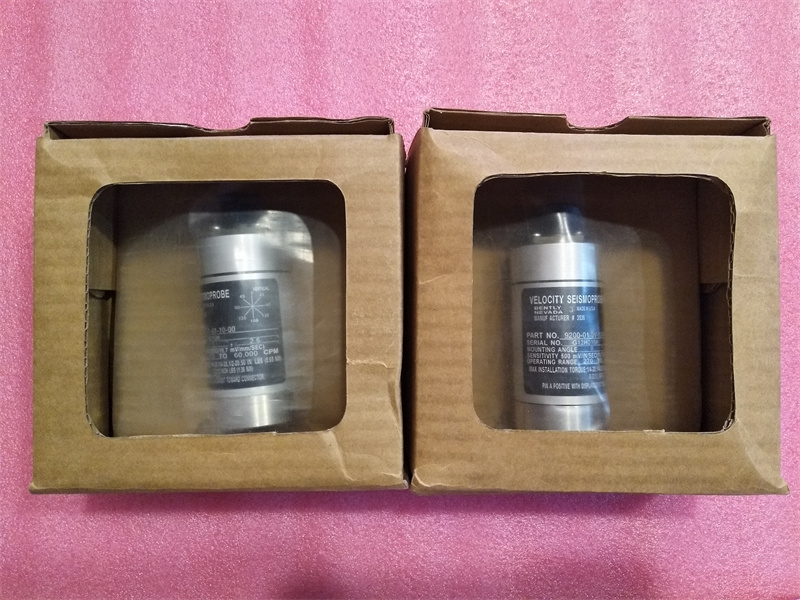

Bently Nevada 9200-01-01-10-00 Seismoprobe Velocity Transducers
Description:
9200-01-01-10-00 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.
Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.
Ordering Information:
Two-wire Transducer
9200-AA-BB-CC-DD
A: Transducer Mounting Angle/Minimum Operating Frequency Option
01 0 ±2.5, 4.5 Hz (270 cpm)
02 45 ±2.5, 4.5 Hz (270 cpm)
03 90 ±2.5, 4.5 Hz (270 cpm)
06 0 ±100, 10 Hz (600 cpm)
09 0 ±180, 15 Hz (900 cpm)
B: Connector/Cable Option
01 Top Mount (no cable)
02 Side Mount (no cable)
05 Terminal block top mount (no cable)
10 through 50
10 10 feet (3.0 meter)
15 15 feet (4.6 meter)
22 22 feet (6.7 meter)
32 32 feet (9.8 meter)
50 50 feet (15.2 meter)
C: Mounting Base Option
01 Circular; 1/4-20 UNC stud
02 Circular; 1/4-28 UNF stud
03 Rectangular flange
04 Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle
05 No base; 1/2-20 UNF-3A stud
06 Isolated circular 1/4-20 UNC stud
07 Isolated circular 1/4-28 UNF stud
08 Isolated rectangular flange
09 Isolated circular 5/8-18 UNF stud
10 Circular; M10X1 stud
11 Isolated circular M10X1
12 Isolated circular 1/2-20 UNF-2A
D: Agency Approval Option
00 No Approvals
01 CSA
04 ATEX/IECEx
