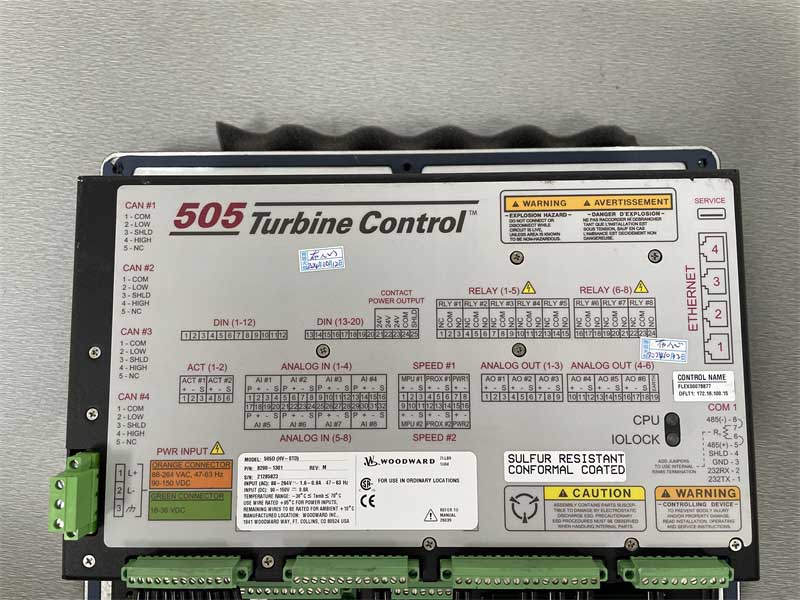

Woodward 505 Digital Governor 8200-1301 AC/DC Standard Compliance
Description:

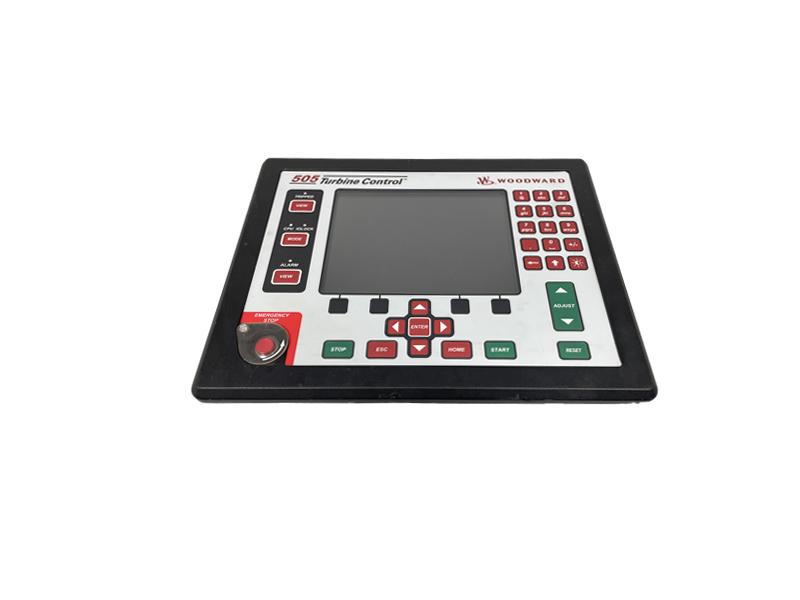

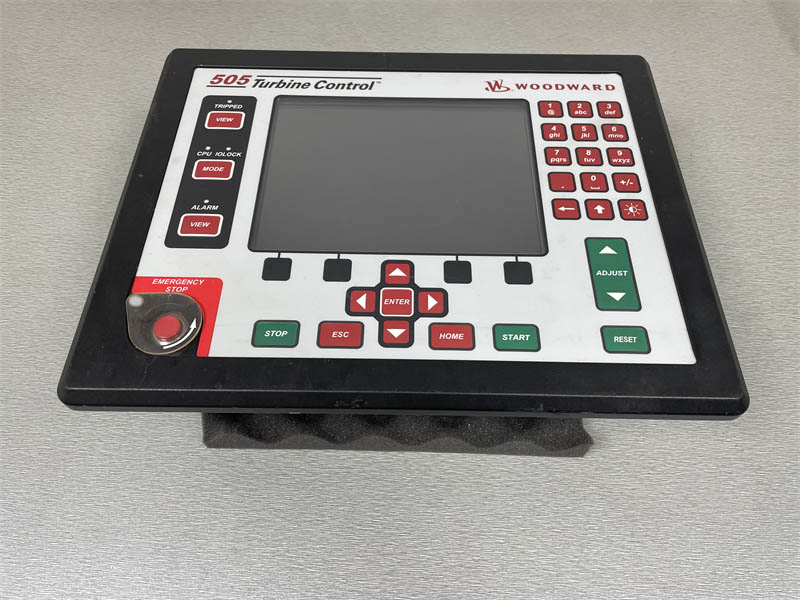

8200-1301 is Woodward 505 Digital Governor, AC/DC (88–132 Vac or 90–150 Vdc) Standard Compliance. A comprehensive graphical operator control panel display and keypad is located on 8200-1301front panel.
The 8200-1301 is designed to control single or dual (split range) actuator steam turbines (extraction steam turbines require the 505XT version). Also, is field programmable which allows a single design to be used in many different control applications and reduces both cost and delivery time. It uses menu driven software to instruct site engineers on programming the control to a specific generator or mechanical drive application. The 505 can be configured to operate as a stand-alone unit or in conjunction with a plant’s Distributed Control System.

FAQ:
What can 8200-1301 display do?
This display can be used to configure the 505, make On-Line program adjustments, and operate the turbine/system. Easy to follow instructions allow operators to view actual and set point values at anytime during turbine operation.

How can the 8200-1301 communicate?
8200-1301 can communicate directly with plant Distributed Control Systems and/or Human Machine Interface (HMI) control panels, through Modbus communication ports. One serial port support RS-232 or RS-485 communications using ASCII or RTU MODBUS transmission protocols. Two Ethernet ports are also available to communication this same information between the 505 and a plant DCS.

What are the features of 8200-1301?
The 8200-1301 provides the following features: First-Out Trip indication of Alarm and Trip events with RTC time stamp, 10 External DI trip inputs, 10 External Alarm inputs, Critical Speed Avoidance (3 speed bands), Auto Start Sequence (hot & cold starts) with Temperature Input options, Dual Speed/Load Dynamics, Zero Speed Detection, Peak Speed Indication for Overspeed trip, and Isochronous Load sharing between units (with an DSLC-2 control), Feed-forward loop, Acceleration protection at initial startup, Remote droop, Frequency deadband.
