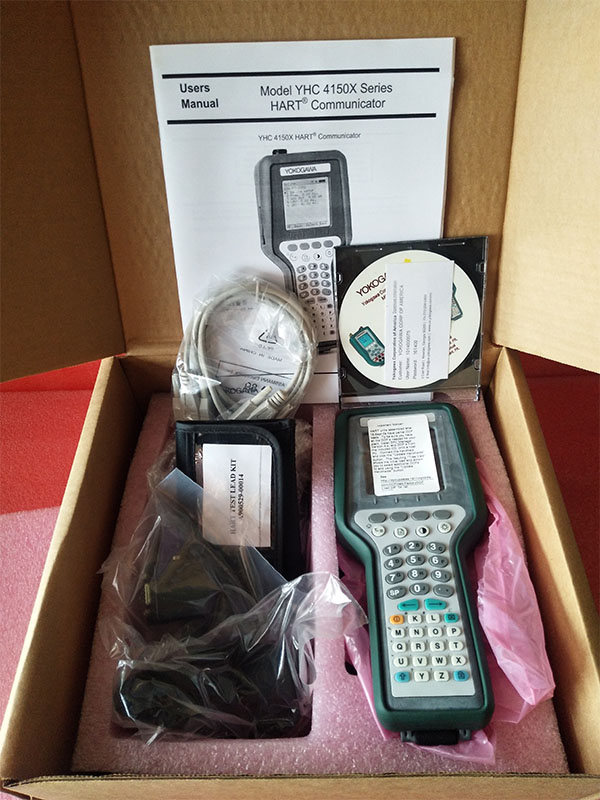

YOKOGAWA YHC4150X-01 HART Communicator
Description:
The YHC4150X HART® Communicator is the latest HART communicator from Yokogawa Corporation of America. All HART® field devices can be configured, polled, and trimmed using the YHC4150X with HART® communications. The YHC4150X is a full function HART® Communicator supporting Universal, Common Practice and Device Specific commands for commissioning, configuration and maintenance operations.
Standard features include:
• 60 hours battery life (w/o backlight) using AA alkaline batteries
• Quick startup and connect: 15 seconds!
• Update new device profiles and firmware via the Internet – YHC4150X is never out of your hands
• Dongle coordinates AC power adapter and serial communication
• Clone / Upload / Download configurations
• Off-line mode for developing / reviewing configurations
• Document and store more than 200 configurations
• As-found / As-left history with DMS software
• 13-line, 128 x 128 pixel graphic, backlit display
• Full alpha-numeric keypad
• Edit directly from Review/Edit mode
• Quick Menu access key
• HART® menu Home key
• Dedicated text edit keys
• Programmable lock-out settings
• Contrast key for direct adjustment from any mode
• Elastic hand strap and adjustable shoulder strap
• Thumb keys (left hand) for menu Up, Down, and Select
• Custom “use-in-place” soft case with lead kit compartment
SPECIFICATIONS
BASE UNIT: 103/8”L x 4 1/4” to 2 ½”W x 1 ¼” to 1 7/8”D; ABS plastic case, 1.7 lbs. (w/ batts.)
KEYPAD: Membrane keypad: 4 soft, 8 single function, 30 dual function, 3 thumb keys
DISPLAY: 13 line, 128 x 128 pixel graphic display, 2.1” x 2.1” viewable area, backlight
POWER: Six AA alkaline; or 100 – 240 Vac power adapter. Use only approved alkaline batteries for Intrinsically Safe certified YHC4150X
TEMPERATURE SPECIFICATIONS:
Storage: -40° F to 140° F (-40° C to 60° C)
Operating: 23° F to 122° F (-5° C to 50° C)
CONNECTIONS:
Standard banana jacks (¾” center) for HART®, Odu connector for dongle. Dongle coordinates AC power and DB-9 serial communications
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
