GE IS230TNAIH2C ANALOG I/O DIN RAIL MODULE
Description:

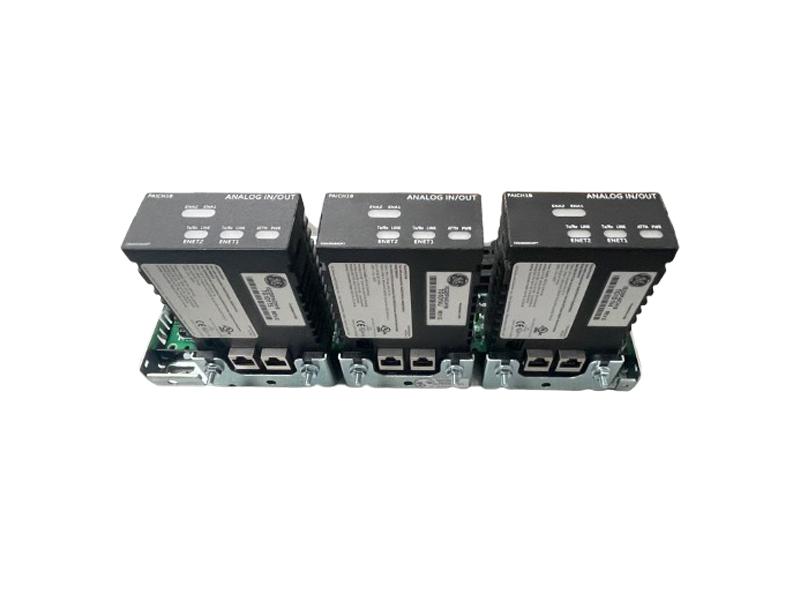

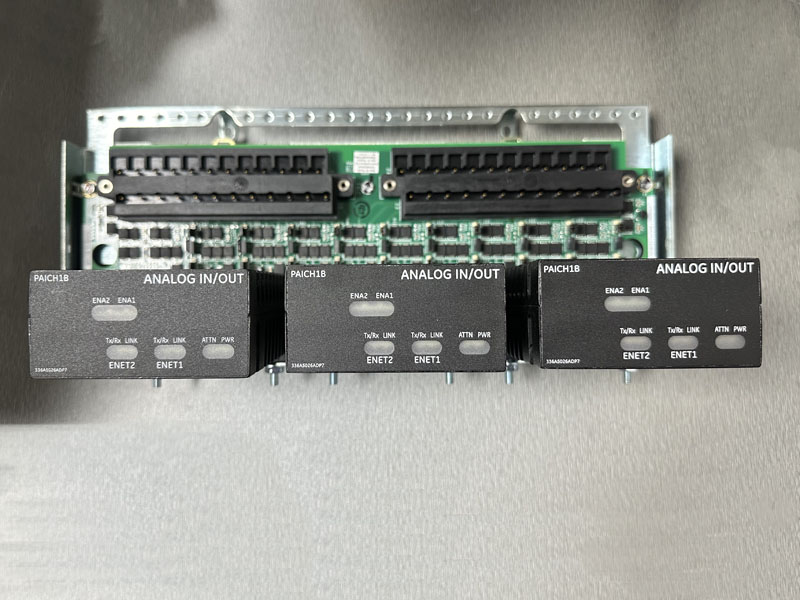

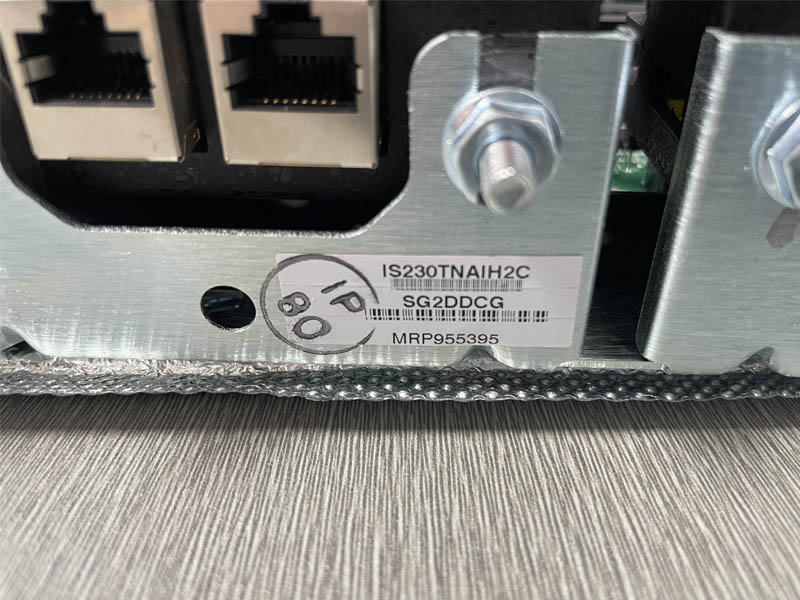

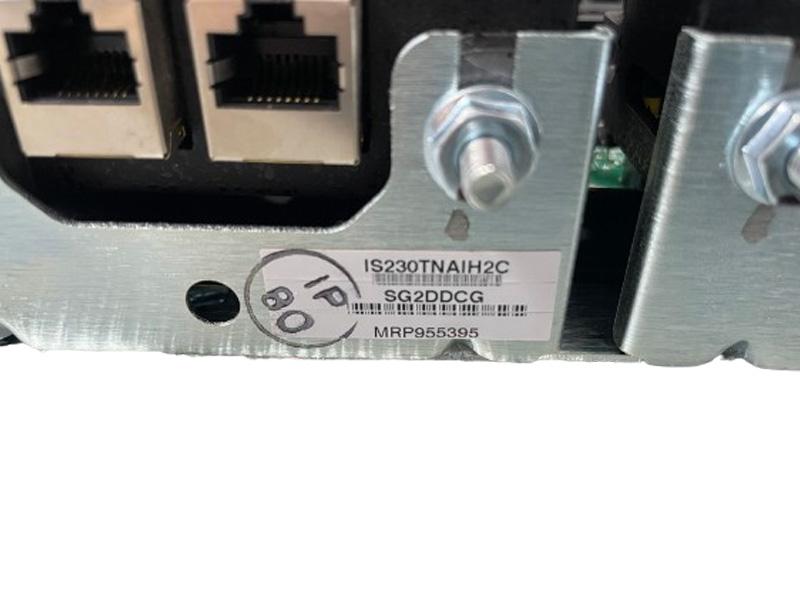

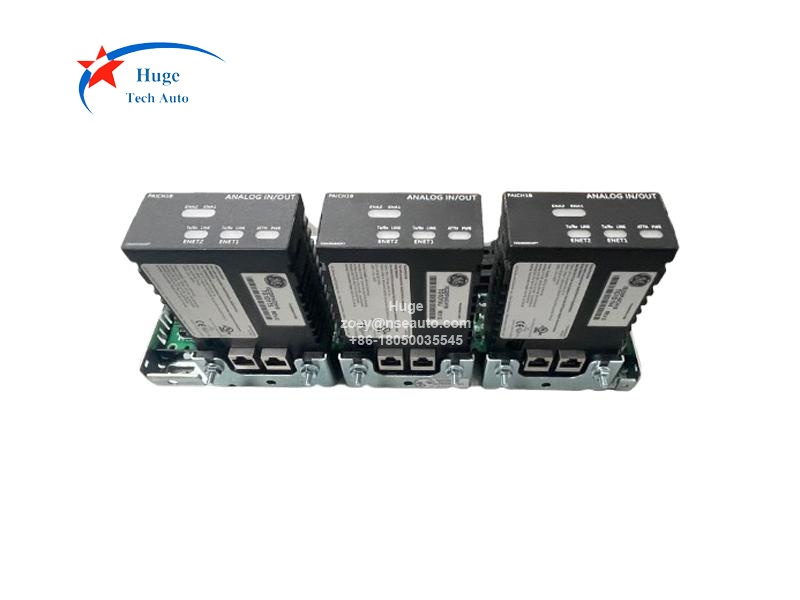

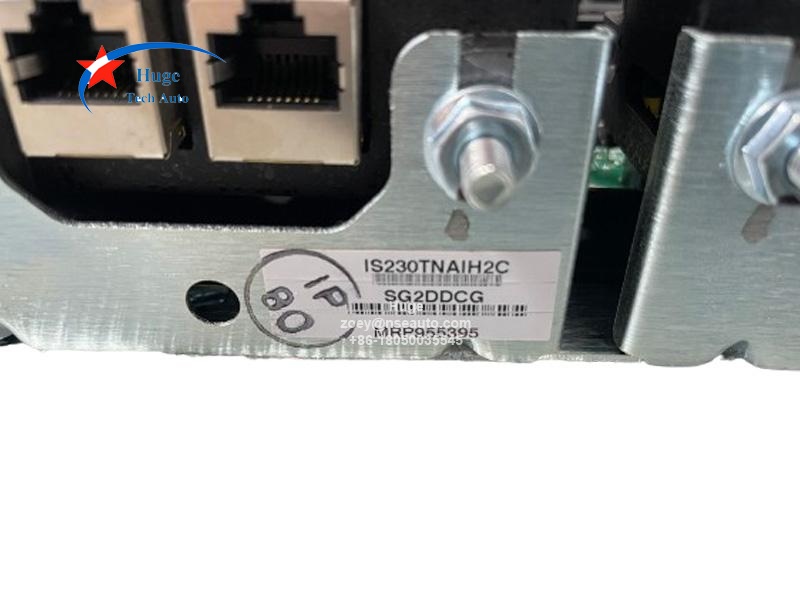

IS230TNAIH2C is designed as GE ANALOG I/O DIN RAIL MODULE. IS230TNAIH2C is the total module number, it consist of Analog I/O Module and the termial board.
The package including:
3 x IS220PAICH1B Analog I/O Module
1 x IS200TBAIH1C terminal board
IS220PAICH1B provides the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. IS220PAICH1B contains a BPPx processor board and an acquisition board specific to the analog I/O function. The IS220PAICH1B provides 10 analog inputs. The first eight inputs can be configured as ±5V or ±10 V inputs, or 4-20 mA current loop inputs. The last two inputs can be configured as ±1 mA or 4-20 mA current inputs. The load terminal resistors for current loop inputs are located on the terminal board and voltage is sensed across these resistors by the PAIC.

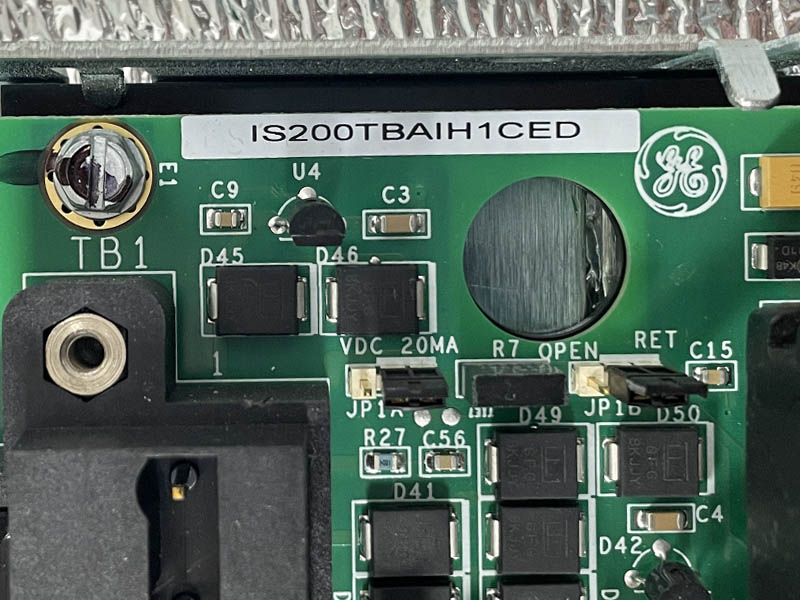

IS200TBAIH1C Analog Input/Output (TBAI) terminal board supports 10 analog inputs and 2 outputs. The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The analog outputs can be set up for 0-20 mA. With the Mark VIe PAICH2, there is also support for 0-200 mA current on the first output. Inputs and outputs have noise suppression circuitry to protect against surge and high frequency noise. The TBAI has three DC-37 pin connectors for TMR I/O packs. Simplex I/O redundancy is also supported using a single JR1 connection.
With TMR I/O redundancy, the input signals are fanned to the three connectors for the R, S, and T I/O packs. TMR outputs combine the current of the three connected output drivers and determine the total current with a measuring shunt. TBAI then presents the total current signal to the I/O packs for regulation to the commanded setpoint.
