GE Mark VIe IS220PRTDH1B Serial Communication I/O Pack
GE Mark VIe IS220PRTDH1B Serial Communication I/O Pack
Brand:
General Electric PLCItem NO.:
IS220PRTDH1BOrder(MOQ):
1 PCPayment:
T/TProduct Origin:
USAShipping Port:
XiamenLead Time：
In stockWarranty:

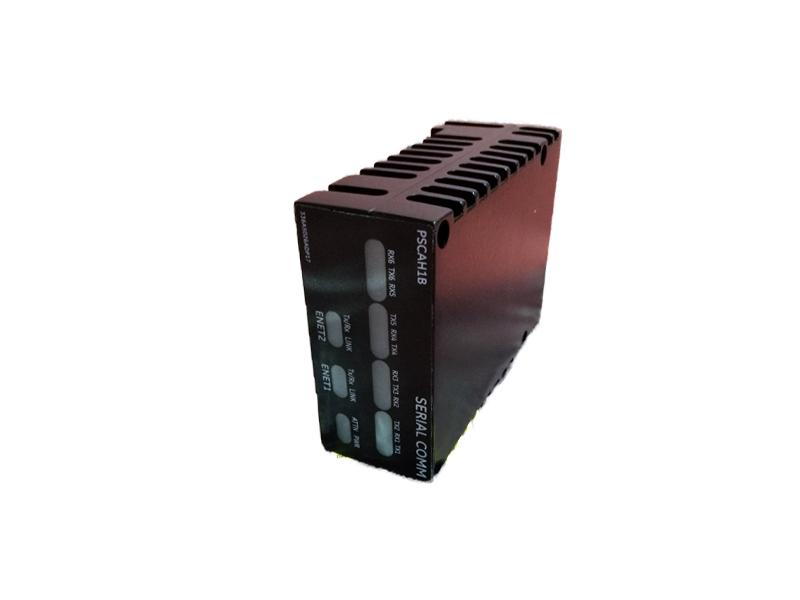

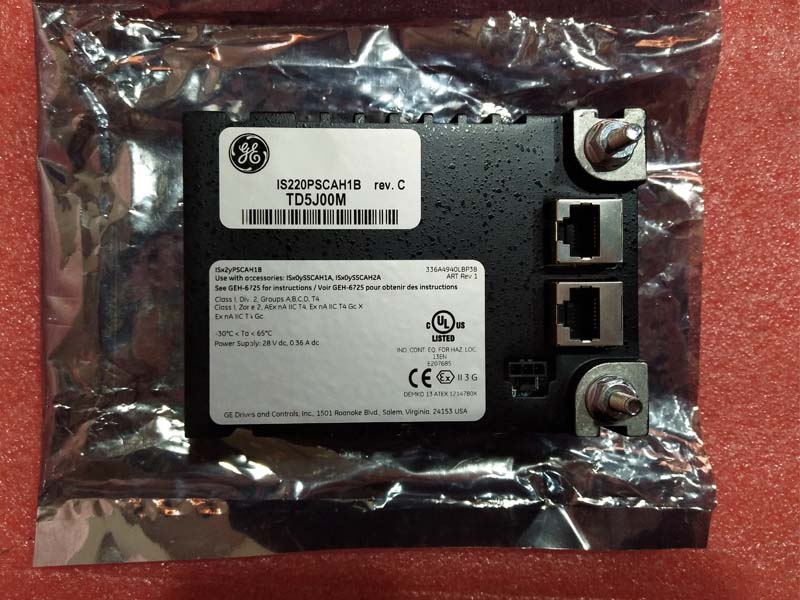

1 yearIS220PSCAH1B is one of GE Mark VIe series Serial Communication I/O Pack.
IS220PSCAH1B provides the electrical interface between one or two I/O Ethernet networks and a serial communications terminal board. The I/O pack contains a BPPx processor board common to all Mark* VIe distributed I/O packs and a serial communications board. The communications board contains six serial transceiver channels, each of which can be individually configured to comply with RS-232, RS-422, or RS-485 half-duplex standards.
Input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input. Output is through a DC-62 pin connector that connects directly with the associated terminal board connector. One of the Ethernet ports can be used to support Ethernet Modbus communication on Simplex networks. Visual diagnostics are provided through indicator LEDs.
Dataflow from the IS220PSCAH1B to the Mark VIe controller is of two types: fixed I/O and Modbus I/O. Fixed I/O is associated with the smart pressure transducers and the Kollmorgen® electric drive data. This data is completely processed every frame, the same as conventional I/O. These signals are mapped into signal space, have individual health bits, and have offset/gain scaling. Several of these signals are configured to support system limit checking.
