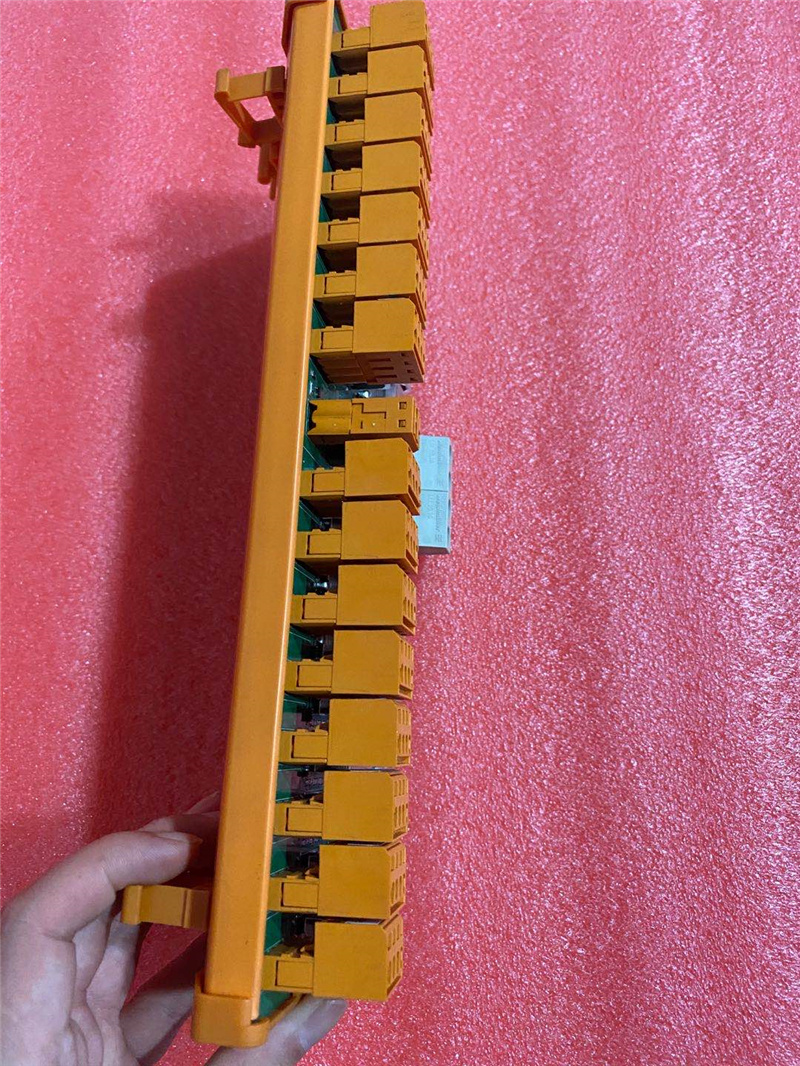

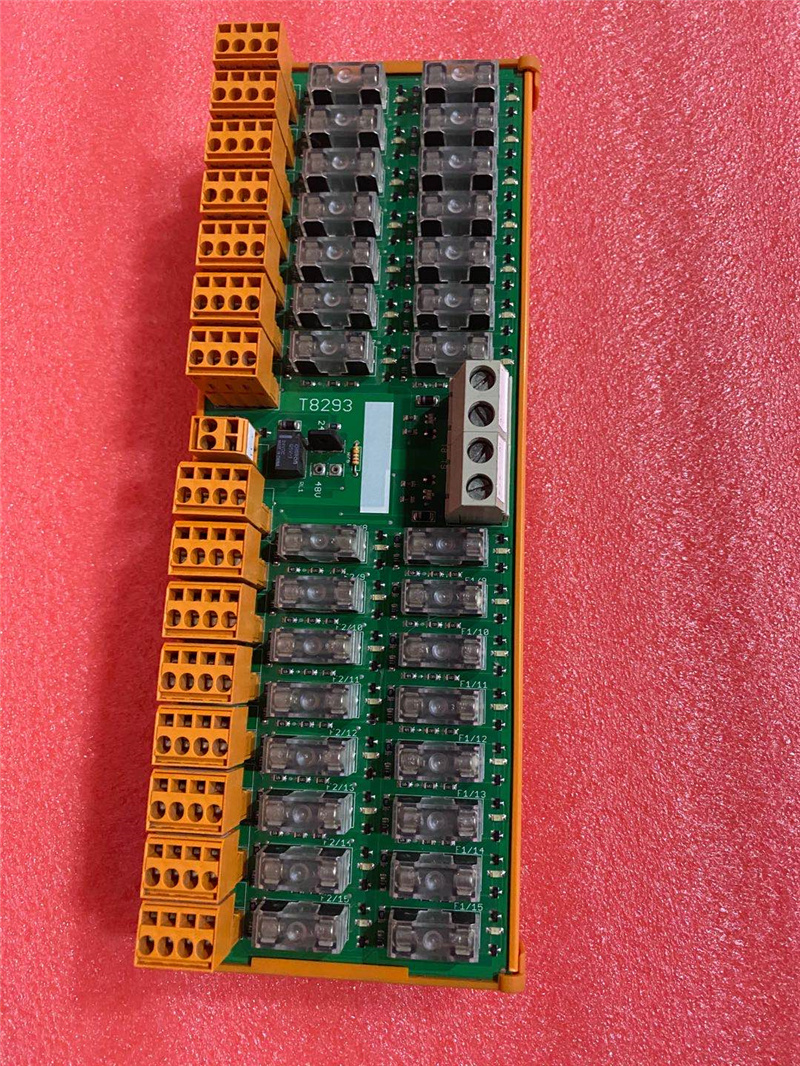

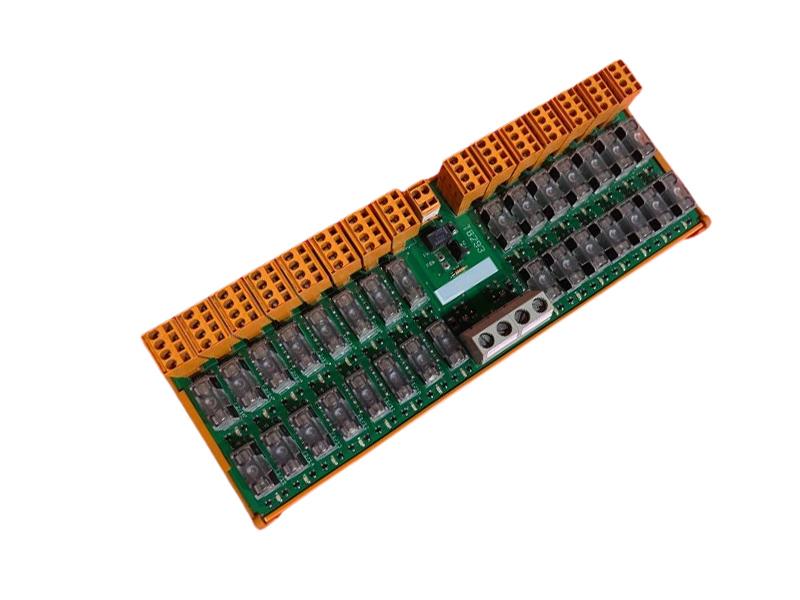

ICS trusted T8293 Power Distribution Unit 15-Way Fused MODULE
Description:
The Trusted® Power Distribution Unit 15-way Fused provides 15 dual redundant fused power outputs from dual redundant 24 Vdc or 48 Vdc incoming power feeders. The Unit is designed to bemounted on a DIN rail.
On-board monitoring circuits provide local Light Emitting Diode (LED) indication of individual fuse failure (red LED). A common fuse failure alarm signal is provided by the Unit via a volt-free relaycontact output.
Features:
• Fifteen ‘dual’ 24 Vdc or 48 Vdc, 3.15 A fuse protected outputs – suitable for direct
connection to Trusted Field Termination Assemblies (FTAs), or other equipment.
• Visual indications of input power supply status.
• Visual indication of individual fuse status.
• Common alarm of fuse status via volt-free contact.
• Link selectable supply voltage options.
Two 24 Vdc or 48 Vdc (link selectable) supplies, are distributed through 30 fuses, arranged in two banks of 15 fuses. The outputs are fed via 15 terminal blocks labelled T1 to T7, and T11 to T18.
Each supply shares a common 0 V reference.
Each fuse is monitored for open circuit condition and provides a local on-board LED indication of individual fuse failure. Red LEDs are used to display the failed state.
A volt-free relay contact provides the fuse failure common alarm signal (contact open for fuse failure) for connection to external alarm monitoring circuits
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
