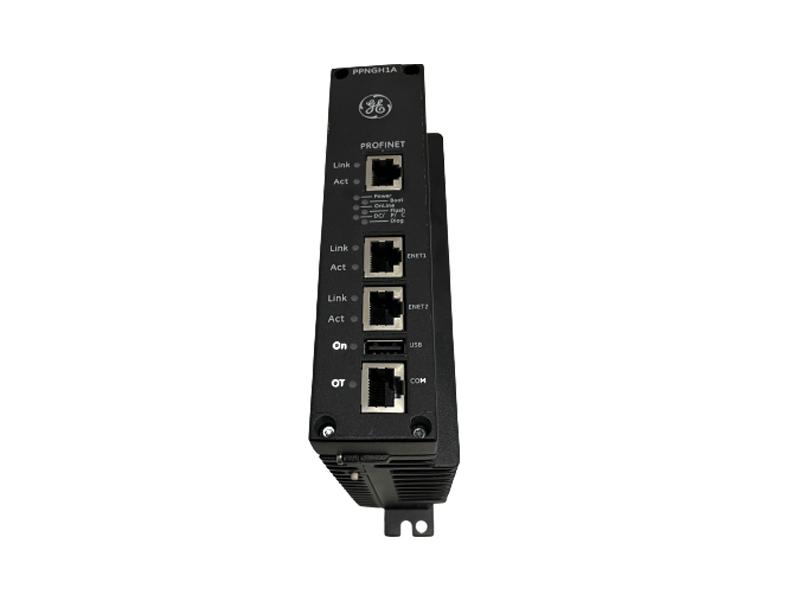

GE IS420PPNGH1A PROFINET Gateway Module
Description:
IS420PPNGH1A is GE Mark Vie series PROFINET Gateway Module.
IS420PPNGH1A as the PROFINET Gateway (PPNG) Module maps I/O from PROFINET Slave devices to the Mark* Vle controller on the lONet. The IS420PPNGH1A connects the Mark Vle controller to a high-speed PROFINET local area network (LAN), enabling communication with PROFINET I/O devices. The PPNG provides functions, services, and protocols required for certification as a PROFINET RT Version 2.2 1/O controller,running 100 Mbps Ethernet interfaces. Functioning as an I/O pack, PPNG with theToolboxST* application provides the ability to add PROFINET I/O devices and smart sensors into a typical Mark Vle control system architecture.
PPNG features are as follows:
· One RJ-45 shielded twisted pair 10/100 Mbps port for PROFINET communication
· Two RI-45 shielded twisted pair 10/100 Mbps ports (ENET1, ENET2) for IONetcommunication
· Single module
· Built-in power supply
· No jumper settings required
· No battery or fan
· Flash memory can be conveniently updated
· Status LEDs for Ethernet, power, and processor
· Internal clock synchronized with the Mark Vle controller for time-stampeddiagnostics entries
· Uses the same ControlST* configuration tools across Mark controls platforms
· Multiple PPNGs can be supported for each Mark Vle controller
· PPNG supports star (connect to switch), line (connect direct to I/O device), ormixed network topologies on the PROFINET network.
· Configuration of PROFINET I/O devices
· Cyclic exchange of input and output data from PROFINET I/O devices,asynchronous with ark Vle controller frame
· Displays values of inputs and outputs through ToolboxST application
· Displays diagnostic messages from devices to resolve issues

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment: T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
