GE IS215UCVGH1A Controller
Description:

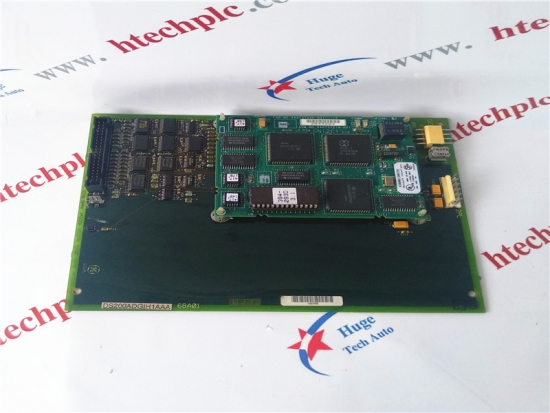

IS215UCVGH1A is GE Mark VI series Controller. It is a 6U high, single-slot board using an Intel® Ultra Low Voltage Celeron™  650MHz processor with 128 MB of flash memory and 128 MB of SDRAM. Two 10BaseT/100BaseTX (RJ-45 connector) Ethernet ports provide connectivity. The first Ethernet port allows connectivity to the UDH for configuration and peer-to-peer communication. The second Ethernet port is for use on a separate IP logical subnet and can be usedfor Modbus or private Ethernet Global Data (EGD) network. This Ethernet port isconfigured through the toolbox. The controller validates its toolbox configurationagainst the existing hardware each time the rack is powered up.

Specification:
Microprocessor: Intel Ultra Low Voltage Celeron 650 MHz
Memory: 128 MB SDRAM
               128 MB Compact Flash Module
                256 KB Advanced Transfer Cache
Operating System: QNX
Programming: Control block language with analog and discrete blocks; Boolean logic represented in relayladder diagram format. Supported data types include:
                Boolean
                16-bit signed integer
                32-bit signed integer
                32-bit floating point
                64-bit long floating point
Primary Ethernet: Twisted pair 10BaseT/100BaseTX,RJ-45 connector:
Interface(Ethernet 1): TCP/lP protocol used for communication between controller and toolbox
EGD protocol for communication with ClMPLICITY" HMl, and Series 90-70 programmable logic controllers (PLCs)
Ethernet Modbus protocol supported for communication between controller and third-party DCS
SecondaryEtheret: Twisted pair 10BaseT/100BaseTX, RJ-45 connector:
Interface(Ethernet 2): EGD protocol
Ethernet Modbus protocol supported for communication between controller and third-party DCS
COM Ports: Two micro-miniature 9-pin D connectors:
COM1 Reserved for diagnostics, 9600 baud, 8 data bits, no parity, 1 stop bitCOM2 Used for serial Modbus communication, 9600 or 19200 baud
Power Requirements: +5 V dc, 4 A typical, 5.4 A maximum
UCVGH1: +12 V dc, less than 1 mA typical
                -12 V dc, less than 1 mA typical
Expansion site: PMC expansion site available,IEEE 1386.1 5V PCI
Environment: Operating temperature: 0°C to 70°C (32 °F to 158 °F)
                     Storage temperature: -40C to 80°C(-40 °F to 176 °F)
