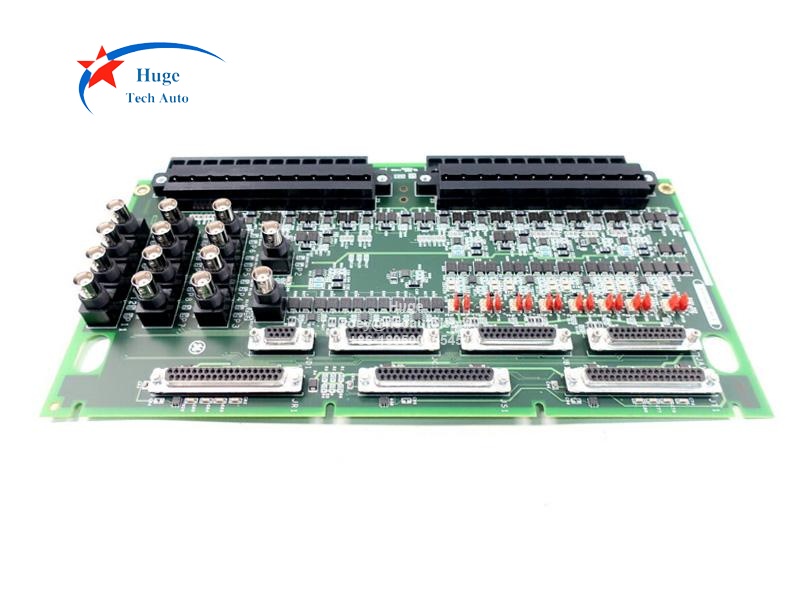

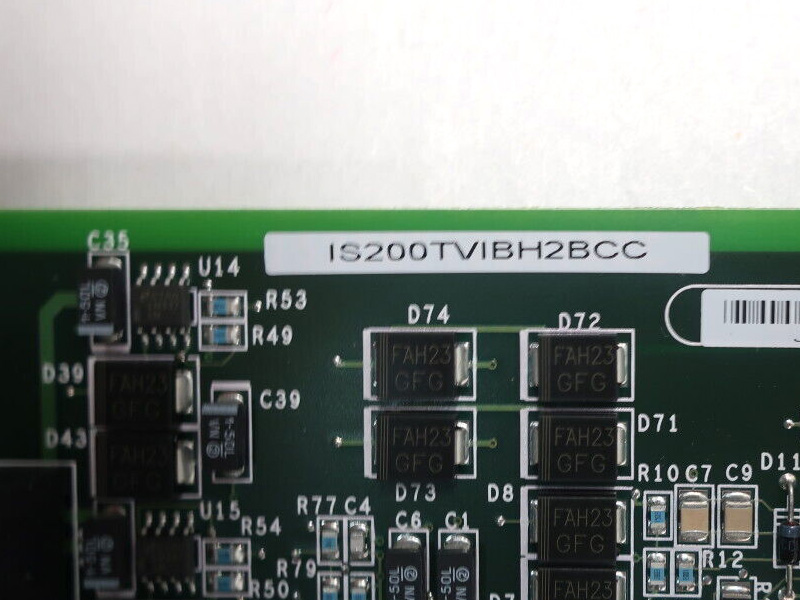

GE IS200TVIBH2BCC MKVI, Vibration Terminal Board
GE IS200TVIBH2BCC MKVI, Vibration Terminal Board
Brand:
General Electric PLCItem NO.:
IS200TVIBH2BCCOrder(MOQ):
1 PCPayment:
T/TMarket Price:
999Product Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time:
IN STOCKWarranty:
1 Year
GE IS200TVIBH2BCC MKVI, Vibration Terminal Board
Description:
In the GE Mark VI system, IS200TVIBH2BCC is a vibration terminal board. The GE vibration card (VVIB) provides a direct interface to seismic (velocity), Proximitor®, Velomitor®, and accelerometer (via charge amplifier) probes. The 16 vibration inputs, 8 DC position inputs, and 2 Keyphasor inputs on the VVIB are divided between 2 TVIB termination boards for
3,000 rpm and 3,600 rpm applications. Faster shaft speeds may require faster sampling rates on the VVIB processor, resulting in reduced vibration inputs from 16-to-8.
Type: Barrier
8 Vibration: Seismic, Proximitor, Velomitor, accelerometer charge amplifier
4 Positions: DC inputs
1 KP: Keyphasor, Current limited –24Vdc, provided per probe
