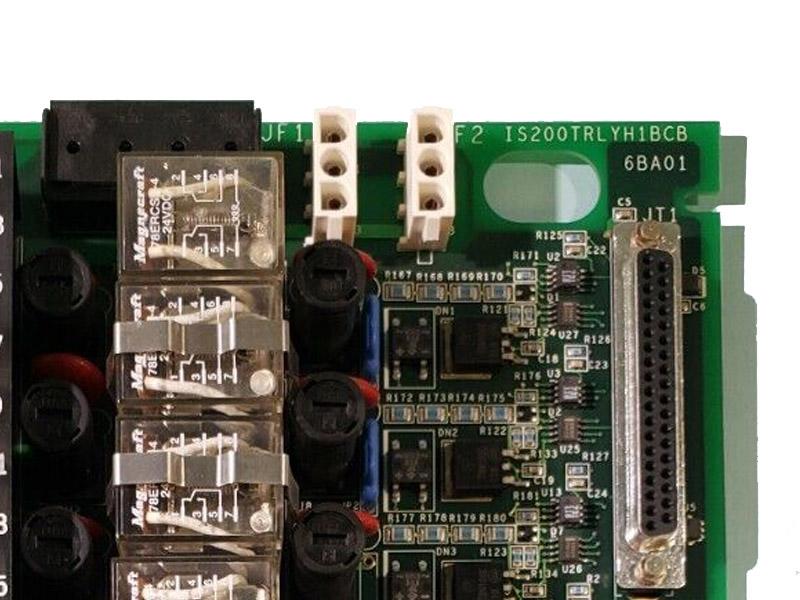

General Electric IS200TRLYH1B Relay output Terminal Board
Description:

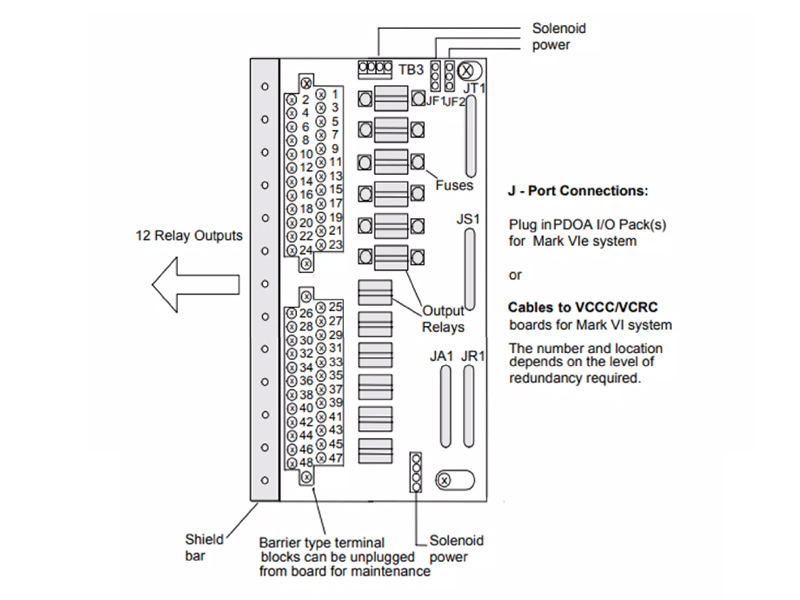

TRLYH1B holds 12 plug-in magnetic relays. The first six relay circuits can be jumpersconfigured for either dry, Form-C contact outputs, or to drive external solenoids. A standard 125V dc or 115/230 V ac source, or an optional 24 V dc source, with individual jumper selectablefuses and on-board suppression can be provided for field solenoid power. The next five relays(7-11) are unpowered isolated Form-C contacts. Output 12 is an isolated Form-C contact, usedfor special applications such as for ignition transformers.
In Mark VI systems, TRLY is controlled by the VCCC or VCRC board. Cables with moldedplugs connect the terminal board to the VME rack where the I/0 boards are mounted. Simplexand TMR systems are supported. Plug JA1 is used on simplex systems, and plugs JR1, JS1, andJTl are used for TMR systems.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment: T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
