GE IS200STTCH2A Thermocouple Terminal Board
Description:

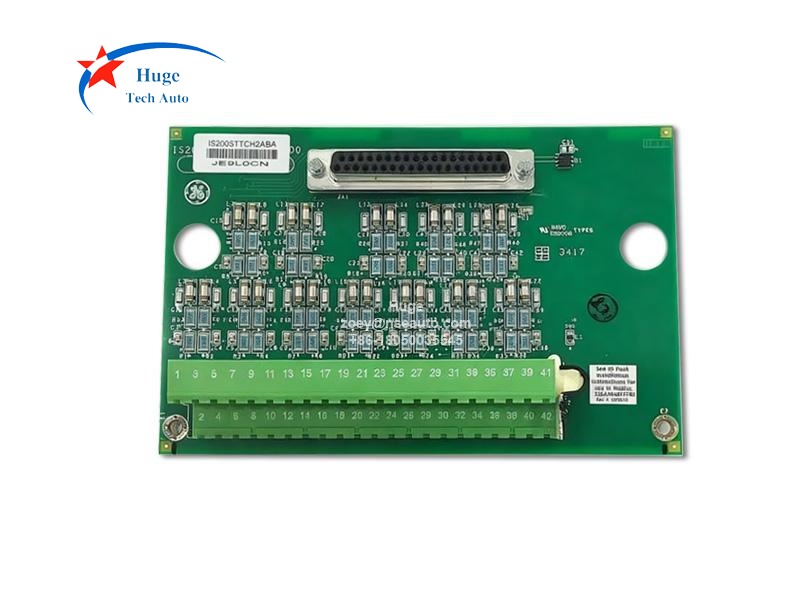

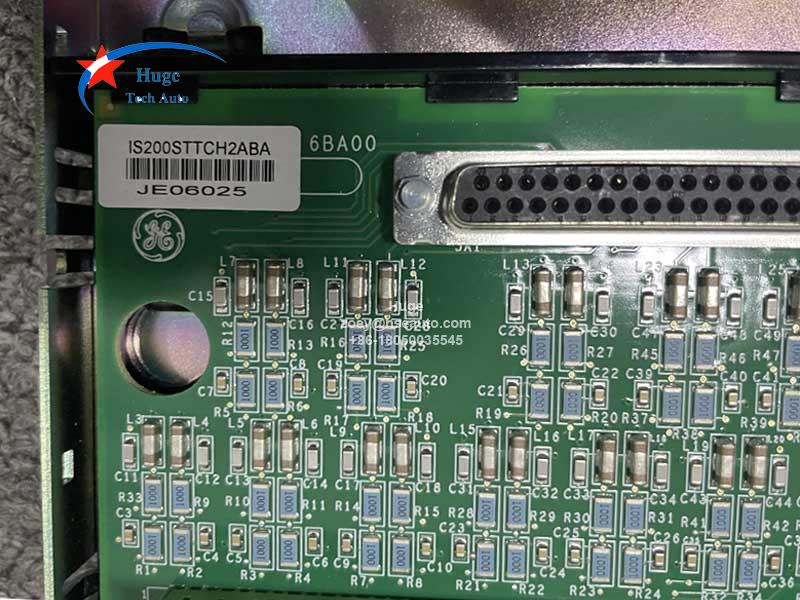

The IS200STTCH2A is a small board component manufactured by the GE company for their Speedtronic Mark VI system.The Speedtronic line, which was created to deliver reliable and efficient management to GE's heavy duty steam and gas turbines, started production in the late 1960s when GE released the first MKI system.The Mark VI is a fully integrated control system with hardware and software built to work cooperatively to improve the overall performance of the turbine system. The Mark VI can manage both large or small systems and can be built as either a Simplex or as a triple redundant system. The IS200STTCH2A functions as a DIN Rail mounted Thermocouple Terminal board. This is a small board with few components. Each of the short board edges has two factory-made holes, one to allow for mounting options and the smaller that is a terminal connector.The center of the board is populated by lines of resistors, capacitors, and inductors (ferrite beads.) The board has one integrated circuit (U1) that is a read-only chip. Codes on the board include CCTC, 94V-0, Type 6, L99006, and 6BA00. The IS200STTCH2A has two larger components.One of these components is a 37-pin female cable connector.The other is a 48-connector terminal block. This block has two rows of screw connectors, with 24 screws per row. Terminal blocks simplify the termination or connection of wires to the board. More information about board components, installation procedures, and handling instructions can be found by accessing publications from the manufacturer like datasheets and manuals.
