GE IS200BPIIH1AAA Bridge Power Interface Board
Description:

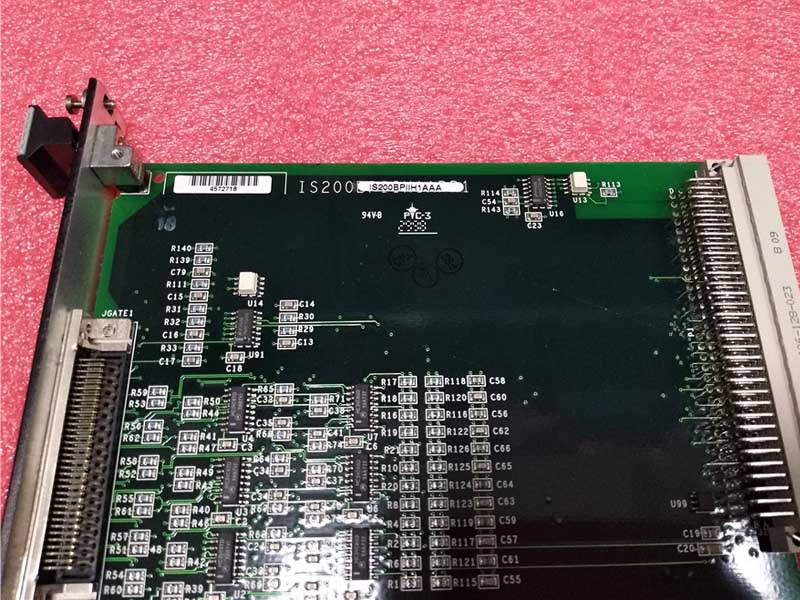

IS200BPIIH1AAA is GE power interface for bridges using Integrated Gate Commutated Thyristor (IGCT)switching devices. The board occupies connectors Jl6 and J21 ofthe IS200CABP Cable Assembly Back-plane Board (CABP)in an Innovation Seriesrm board rack.

IS200BPIIH1AAA provides for the relay of 24 gate firing commands and 24 gate status feedback signals between the IS200BICI Bridge Interface Control Board (BICI) and two remotely mounted IS200GGXI Expander Load Source Boards (GGXI). The GGXI board translates the firing and status commands between these signals and the fiber-optic interfaces for access to gate driver modules located in the bridge.

IS200BPIIH1AAA is designed to interface with and complement the BICI board. The BPll board is connected to the BICI board through the Innovation Seriesrm board rack backplane. Card front connectors on both boards connect to the GGXI boards. High voltage isolation to the BPl and BICI boards isprovided by fiber-optic connections to the GGXIboards. Voltage feedback isolation is provided by attenuation from the DS200NATO Voltage FeedbackScaling Board (NATO).
