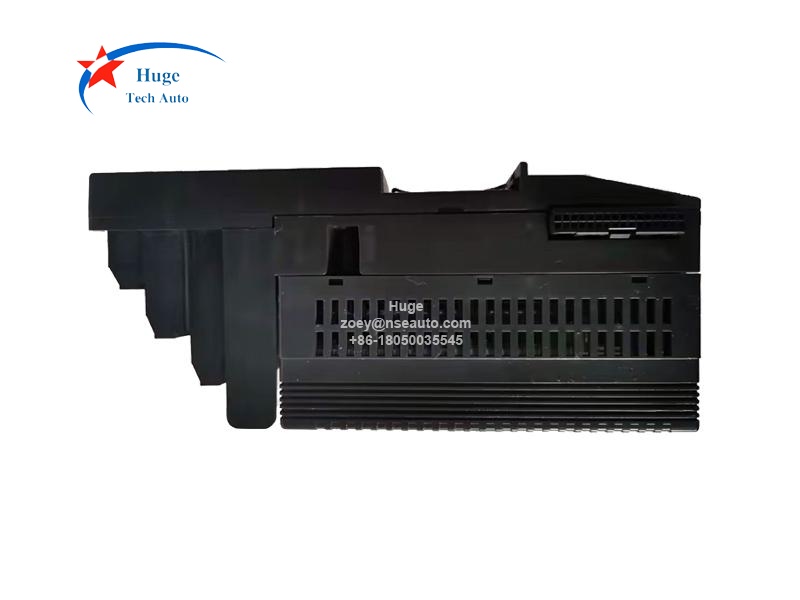

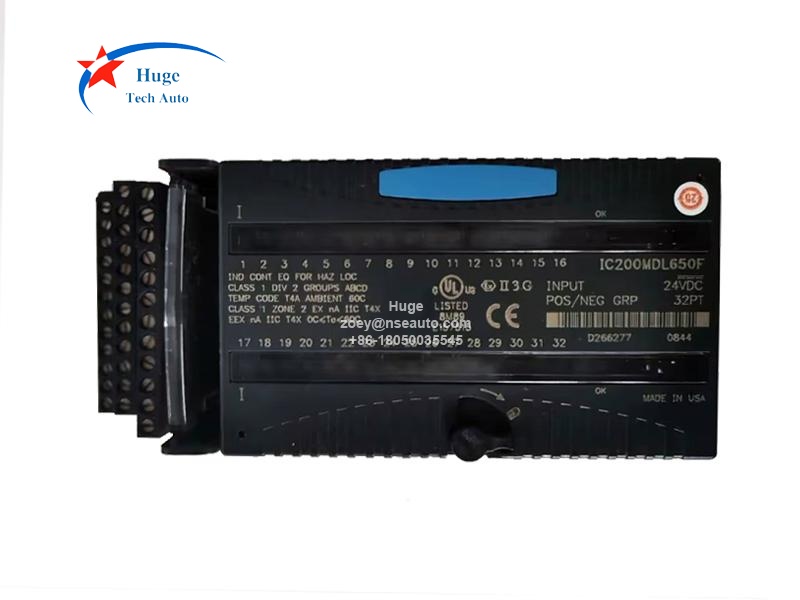

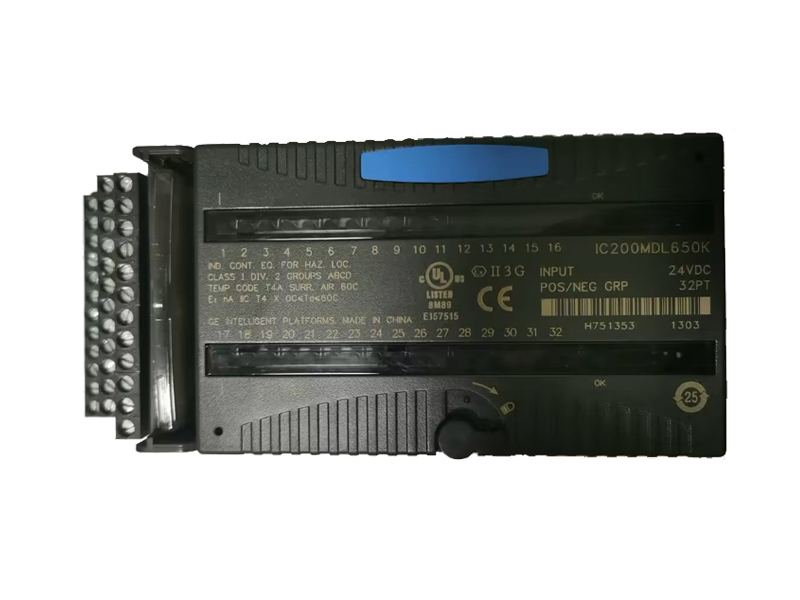

General Electric IC200MDL650

General Electric IC200MDL650 Discrete Input Module 24VDC Pos/Neg Logic 32 Points

Brand:
General Electric PLC
Item NO.:
IC200MDL650
Order(MOQ):
1
Payment:
T/T
Market Price:
999
Price Range:
1 - 5
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK

Product Detail

General Electric IC200MDL650 Discrete Input Module
Description:
Discrete input module IC200MDL650 provides four groups of 8 discrete inputs. Inputs in each group can be either positive logic inputs that receive current from input devices and return the current on the common, or negative-logic inputs that receive current from the common and return current to the input device. Input devices are connected between the input terminals and common terminals.
Note: Negative-logic functionality requires module version IC200MDL650C / BXIOID3225C or higher.
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU.
Product Revision:
IC200MDL650A
IC200MDL650C
IC200MDL650D
IC200MDL650E
IC200MDL650F
IC200MDL650G

Model Number	IC200MDL650
Points	32 (4 groups of 8)
Isolation: User input to logic (optical) and to frame ground Group to group Point to point	250VAC continuous; 1500VAC for 1 minute 250VAC continuous; 1500VAC for 1 minute None
LED indicators	One LED per point shows individual point ON/OFF status OK LED indicates backplane power is present
Backplane current consumption	5V output: 50mA maximum
External power supply	None
Configuration parameters	Input response times
*Input Characteristics*
Input voltage	0 to +30VDC,+24VDC nominal
On state voltage	+15 to +30VDC
Off state voltage	0 to +5VDC
On state current Off state current	2.0 to 5.5mA 0 to 0.5mA
On response time Off response time	0.5ms maximum
Configurable filter time	0 ms, 1.0ms (default), or 7.0ms
Input impedance	10kOhms maximum
