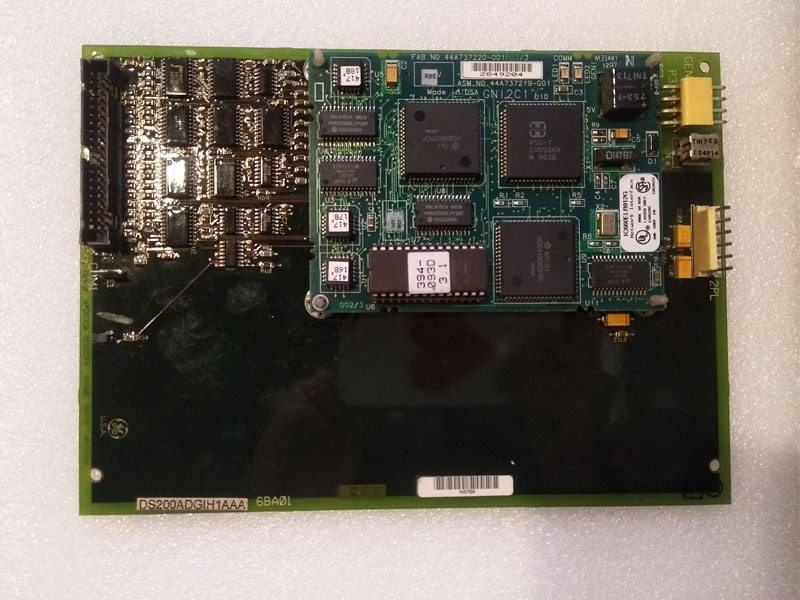

GE DS200ADGIH1A Auxiliary Genius Interface Board
Description:
The DS200ADGI Auxiliary Genius Interface Board(ADGI) provides an interface between the drive and aGenius® l/O system. As shown in Figure l, the ADGI requires an IC660ELB912 μGENI® Network InterfaceBoard (μGeni), and enables the drive to act as a drop tothe Genius /O system, Actual communications are han-dled by the drive’s control and communications boards. The ADGI board requires a DS200LDCCdrive control board and is not compatible withthe DS200SDCC drive control board.
