GE IS220PSCAH1A MKVIe series Unmanaged Ethernet IONet Switches
GE IS220PSCAH1A MKVIe series Unmanaged Ethernet IONet Switches
Brand:
General Electric PLCItem NO.:
IS420ESWBH3AOrder(MOQ):
1Payment:
T/TProduct Origin:
USAShipping Port:
XIAMENLead Time:
IN STOCKWarranty:
1 Year

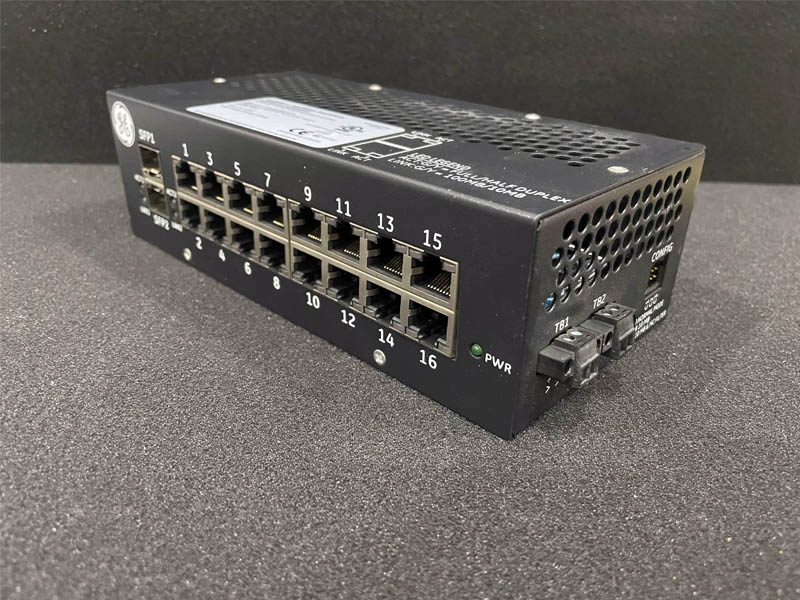

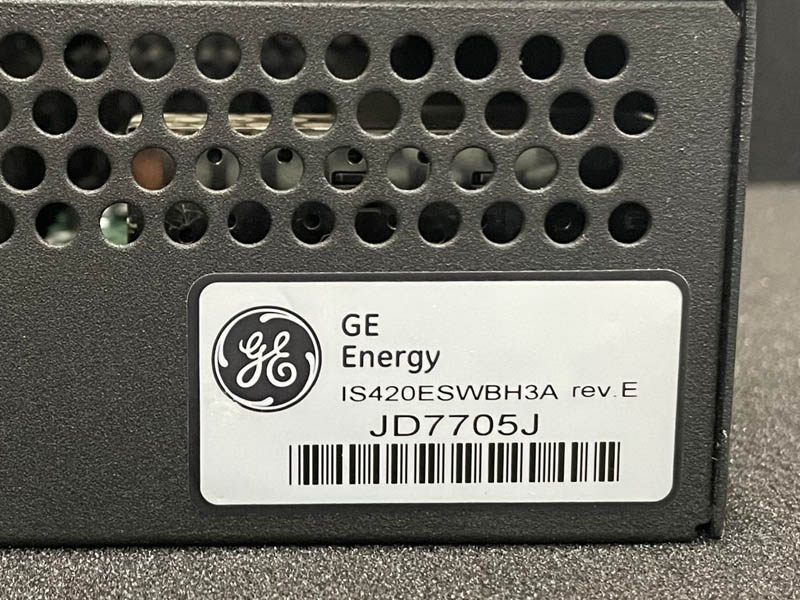

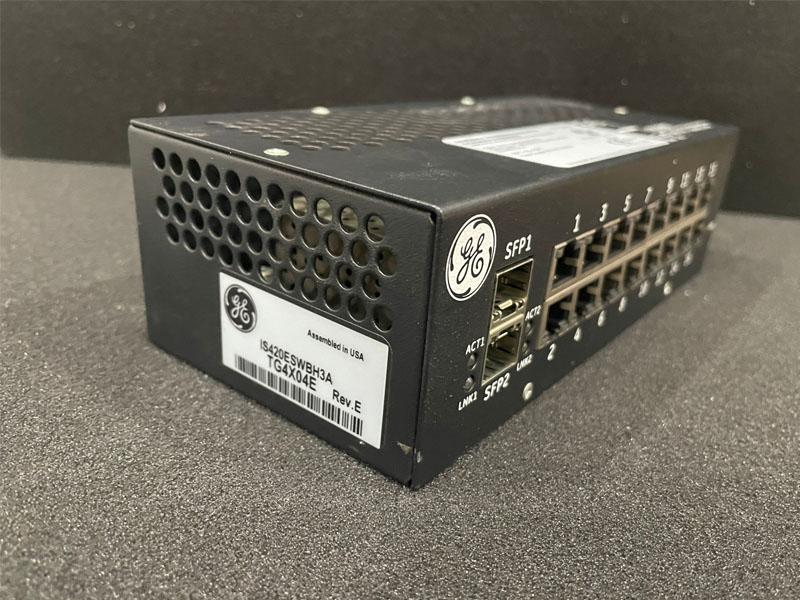

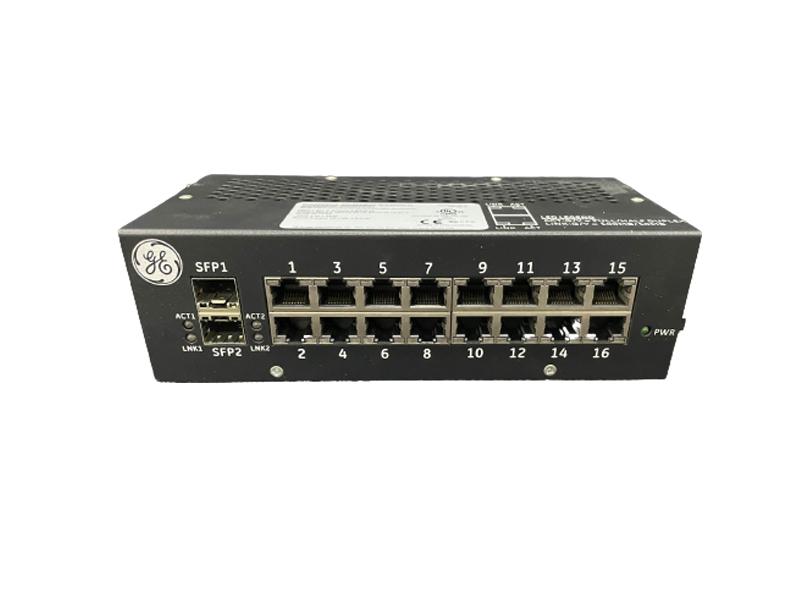

GE IS420ESWBH3A Unmanaged Ethernet IONet Switches
Description:
IS420ESWBH3A is designed to meet the needs of real-time industrial control solutions and are required for all IONet switches used in a Mark* VIe and Mark VIeS Safety control system. It is 16 ports 10/100BASE-TX, and there are 5 versions (H1A to H5A) of IS420ESWBH3A, which vary in fiber- optic port configuration options.
Dimensions (width x depth x height):188 x 86 x 56 mm (7.40 x 3.40 x 2.20 in).
The GE Ethernet/IONet switches are available in two hardware forms: ESWA and ESWB. Each hardware form is available in five versions (H1A through H5A) that vary in fiber- optic port configuration options, which include no fiber ports, multi-mode fiber ports,
or single-mode (longer distance) fiber ports. Refer to the IS420ESWAH#A IONet Switch Specifications table and the IS420ESWBH#A IONet Switch Specifications table for these fiber option details.
The ESWx switches can be DIN-rail mounted using one of three GE qualified DIN-rail mounting clips, depending on the hardware form (ESWA or ESWB) and the selected DIN-rail mounting orientation. The clips are ordered separately, in accordance with the following table. Mounting screws are included with each switch.
