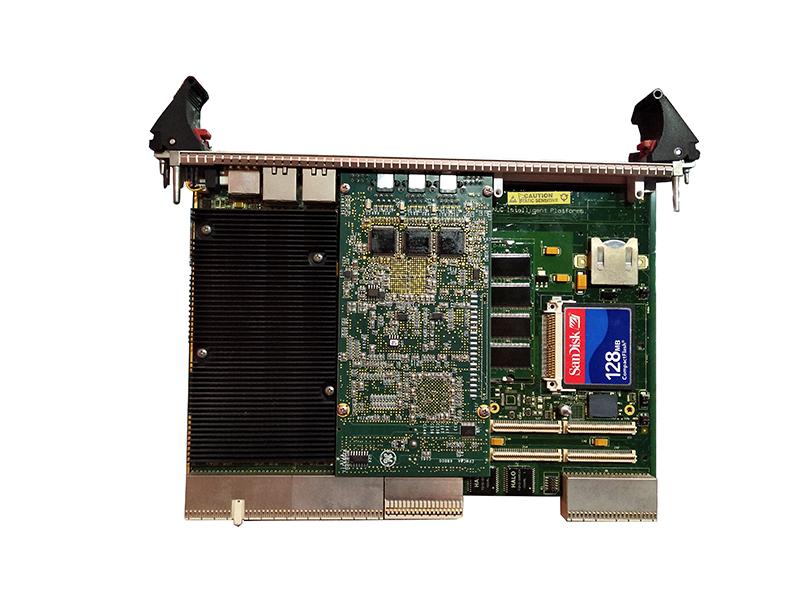

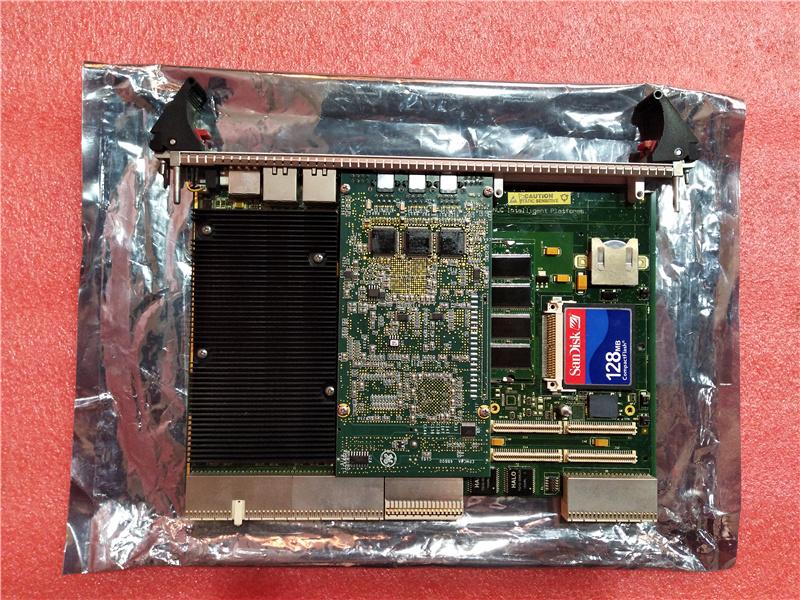

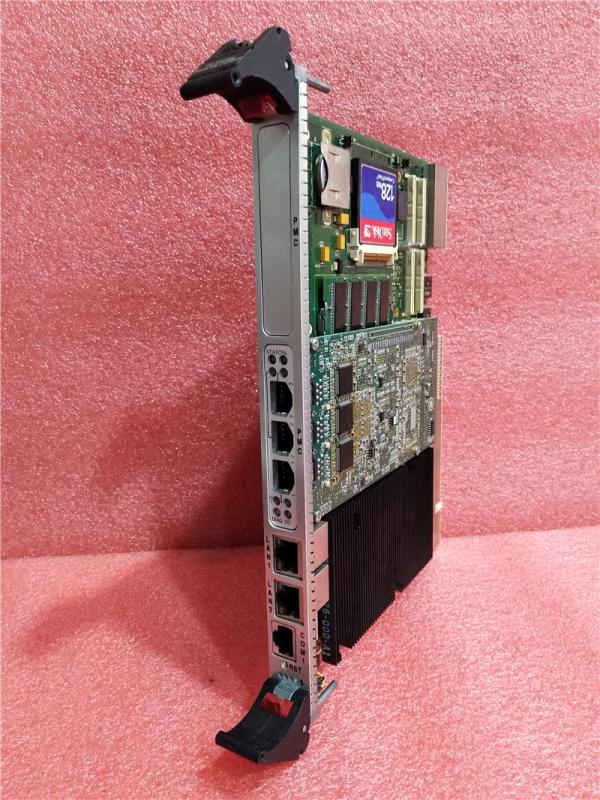

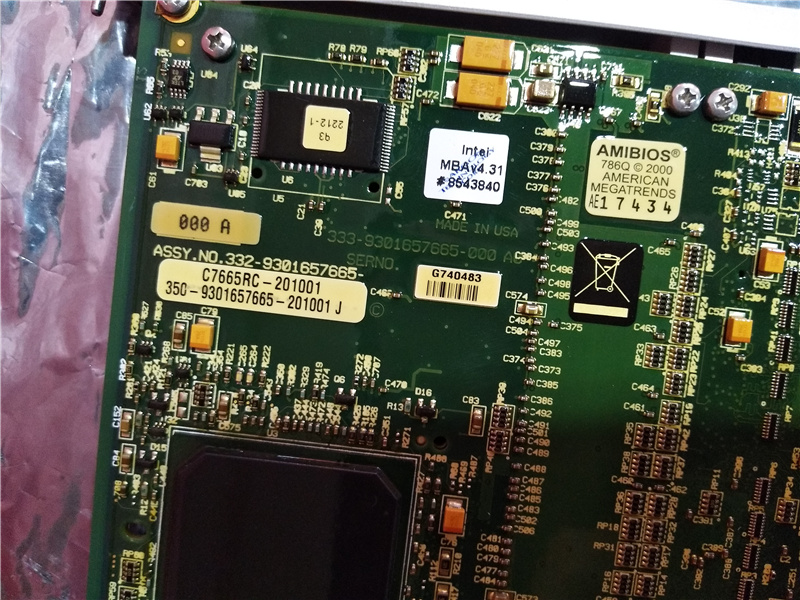

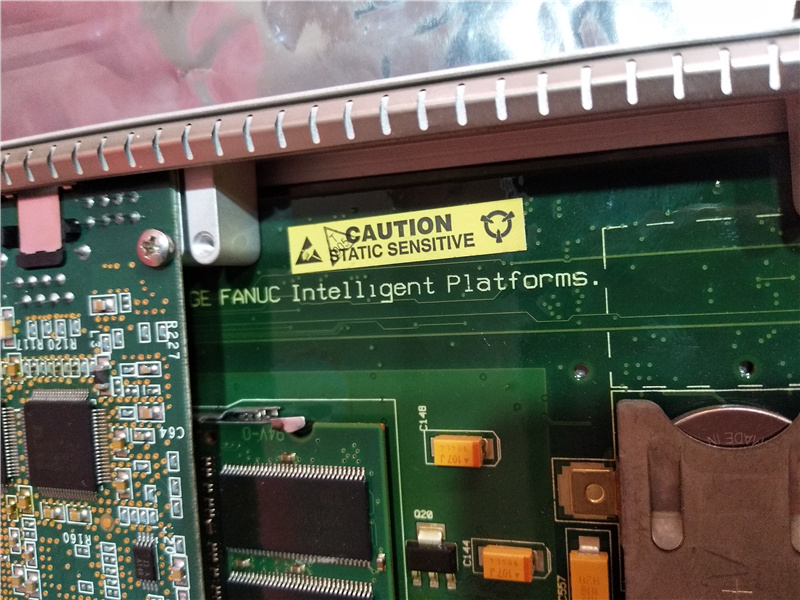

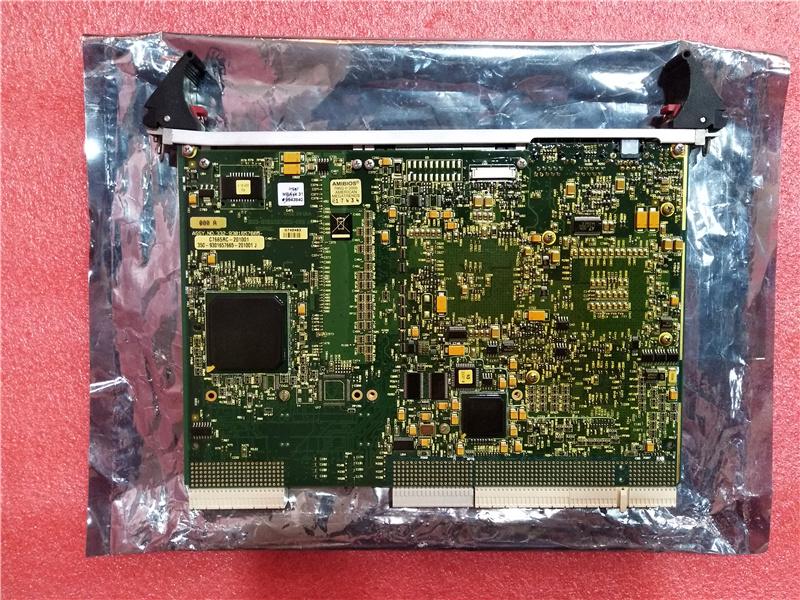

GE IS415UCCCH4A CPCI CPU BOARD
Description:
IS415UCCCH4A is GE Mark Vie series CPU board.

The IS215UCCCH4 is a single-slot CPCI controller board containing a 1.6 GHz Pentium M processor. Two 10/100/1000Base-TX Ethernet ports provide connectivity to the UDH and an optional Control Data Highway (CDH). The IS215UCCCM04 is a module assembly that includes the IS215UCCCH4 combined with 128 MB of flash memory, 256 MB of DRAM, and the IS200EPMC.

The UCCx controller is a single-board computer that runs the application code. The controller mounts in a CompactPCI (CPCI) enclosure and communicates with the I/O packs through on-board I/O network interfaces. The CPCI enclosure typically consists of a 6U high rack, one or two 3U high power supplies, a 6U high single board, and a cooling fan. The rack backplane is CPCI compliant, but is used only to provide power from the power supply(s) to the controller and cooling fan. The CPCI power supply converts the bulk incoming power to +12 V dc, 5 V dc, and 3.3 V dc. These voltages are distributed to the controller(s) and fan through the backplane.

The CPCI power supply takes the incoming bulk power from the CPCI backplane and creates +12, 5, and 3.3 V dc. This power is provided to the backplane through one or two Mate-N-Lok® connectors, for use by the power supply(s), controller(s) and cooling fan. The power supply is a CPCI hot swap compliant 3U power supply using the standard CPCI 47-pin connector. Two power supplies can be used to provide power supply redundancy in an optional rack.

The controller operating system (OS) is QNX® Neutrino®, a real-time, multitasking OS designed for high-speed, high-reliability industrial applications. The following communication ports provide links to I/O modules, operator, and engineering interfaces:
· Ethernet connection for the Unit Data Highway (UDH) for communication with HMIs, and other control equipment. The UCCC controller has an additional Ethernet connection for the Control Data Highway (CDH).
· RS232C connection for setup using the COMI port
· Ethernet connection for the R, S, and T I/O network

Note: Mark VIeS Safety Controller V05.03 is the most current firmware version that still supports the UCCx platform. Beginning with ConstrolST V07.02, the UCCx is installed from the ControlST Software Suite DVD by selecting the ControlST Supplement Package installation option. Refer to the ToolboxST User Guide for Mark Controls Platform (GEH-6703), the section Installation for more information.
