GE IS215VCMIH1B VCMI Bus Master Controller

GE Mark VI system VCMI Bus Master Controller IS215VCMIH1B

  • Brand:

    General Electric PLC
  • Item NO.:

    IS215VCMIH1B
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Market Price:

    9999
  • Price:

    $6666
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 year
Product Detail

 GE IS215VCMIH1B VCMI Bus Master Controller
Description:
IS215VCMIH1B is designed as GE Mark VI series VCMI Bus Master Controller.

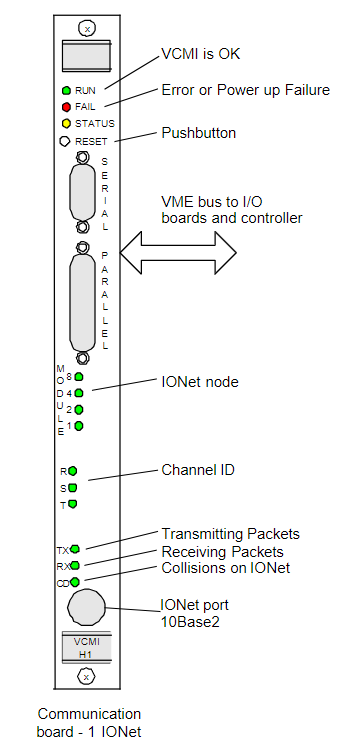

The VCMl is the communication interface between the controller and the l/O boards and the communication interface to the system control network, known as IONet. VCMI is also the VME bus master in the control and I/O racks, and manages the IDs for all the boards in the rack and their associated terminal boards.
This figure shows three simplex system configurations with local and remote I/O using the VCMl Multiple I/O racks can be connected to lONet, each rack with its own VCMI board. To increase data through put for applications requiring low latency, a second IONet port on the VCMI can be used as a parallel IONet as shownin the lower portion of the figure.
Features:
The VCMl architecture is based on the 32-bit Texas Instruments TMS320C32 digital signal processor (DSP). The main hardware features are:
Interface to VMEbus
Three 10Base2 Ethernet ports
One RS-232C serial port
One parallel port
Power system monitoring
Board and cable ID reading
Processor watchdog timer
