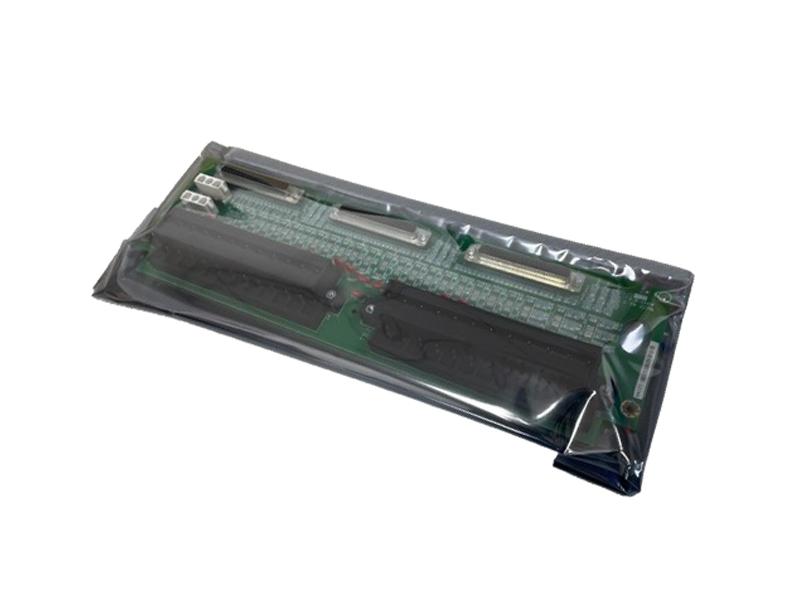

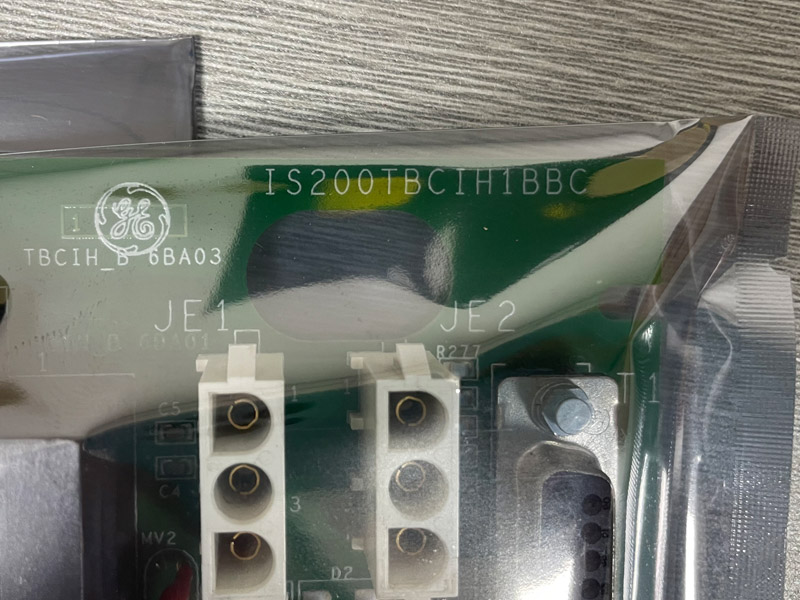

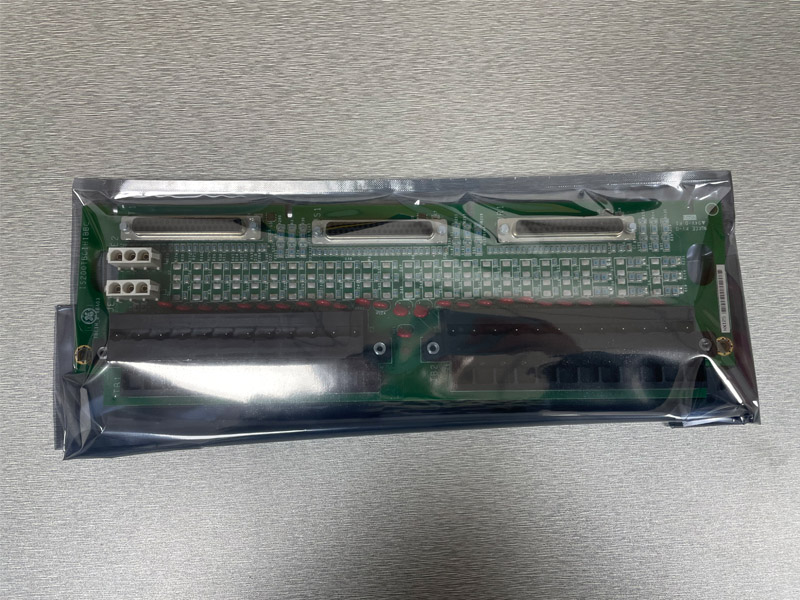

GE IS200TBCIH1BBC Contact Input Terminal Board
Description:

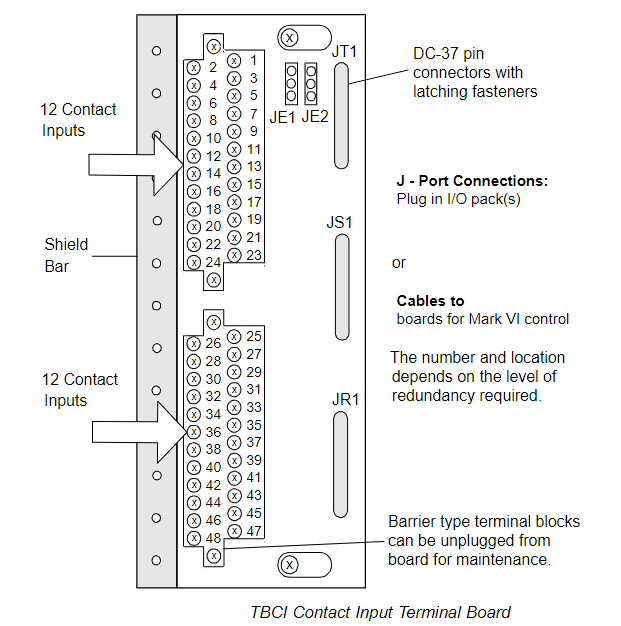

IS200TBCIH1B is part ot GE Mark VI series terminal board. The Contact Input with Group Isolation (TBCI) terminal board accepts 24 drycontact inputs wired to two barrier-type terminal blocks. Dc power is wired toIBCI for contact excitation. The contact inputs have noise suppression circuitryto protect against surge and high-frequency noise.
Mark VI control: TBCI works with VTCCVCRC and supports simplex and TMRapplications. Cables with molded plugs connect TBCI to VMErack where the VCCC or VCRC processor board is located.Both board versions TBCIH B and TBCIH C work correctlywith Mark VI and are functionally identical.
Mark Vle control: TBCI works with the PDIA I/O pack and supports simplex,dual, and TMR applications. One, two, or three PDIAs can beolugged directly into the TBCl. Mark Vle requires the C versionof this board for correct mechanical alignment of connector JT1 with I/O pack mechanical support.
Mark VleS control: Board revisions TBCIS1C,TBCIS2C, and TBCIS3C are safetycertified.
