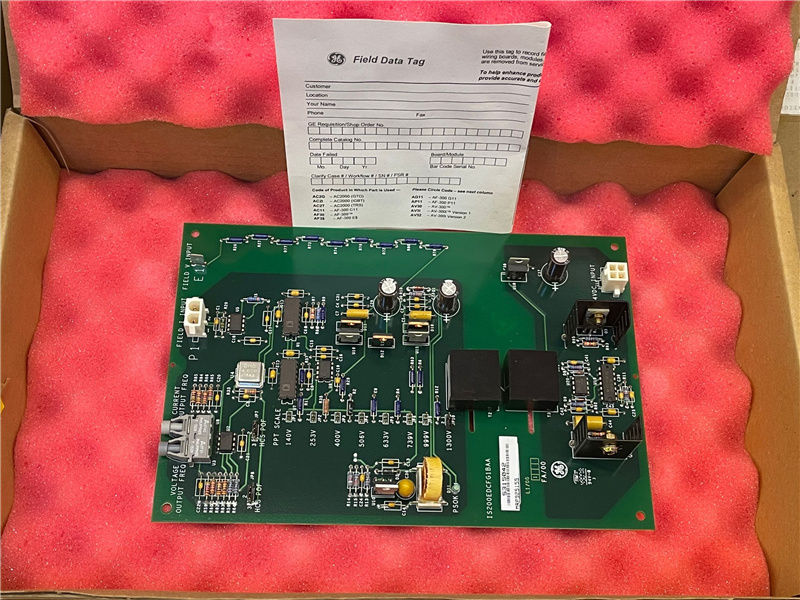

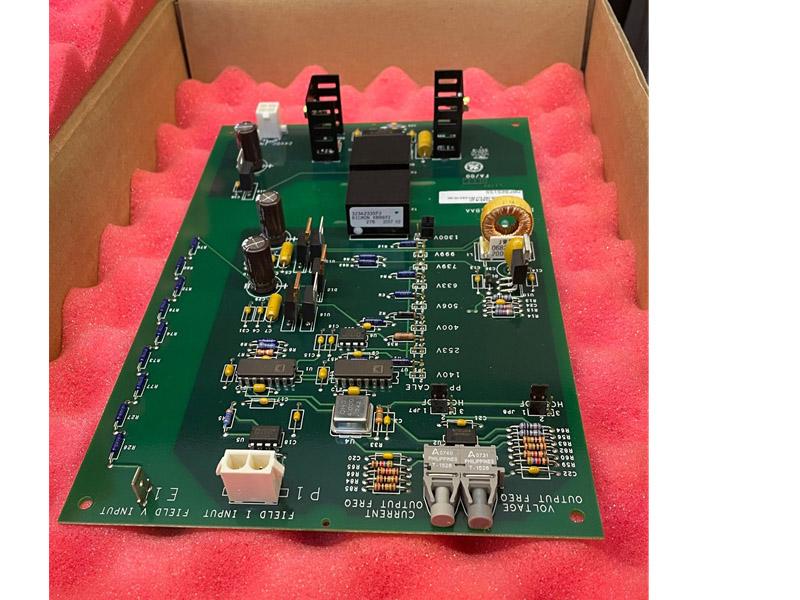

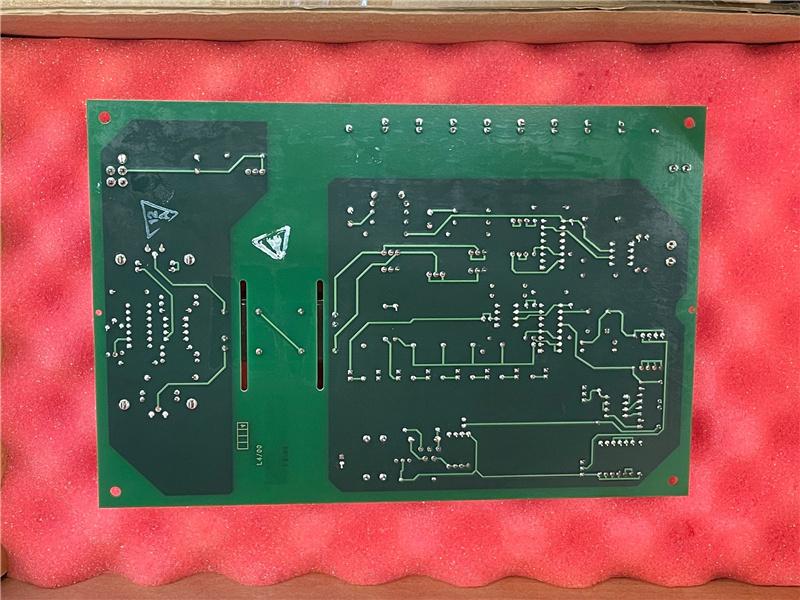

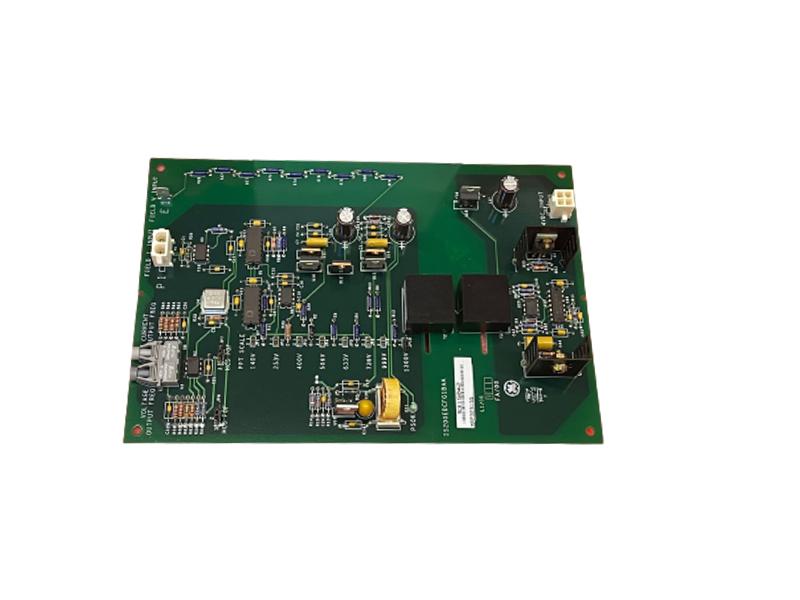

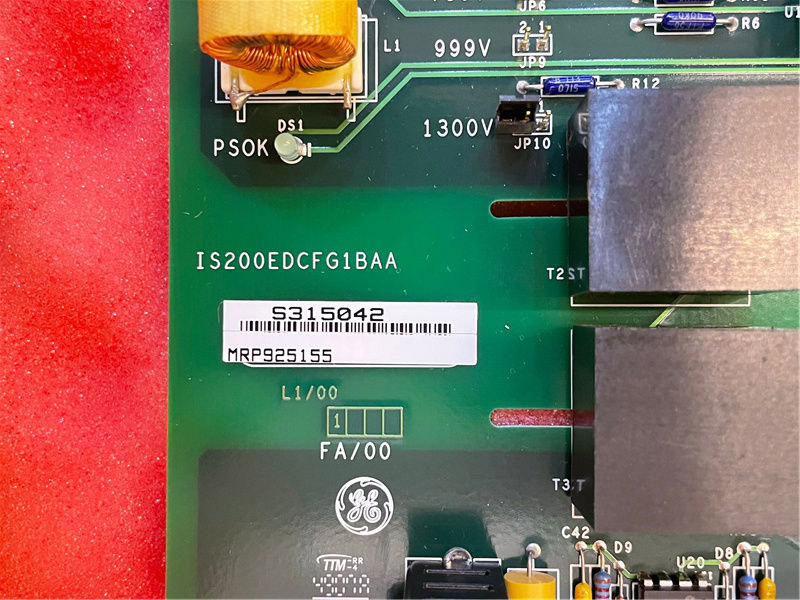

GE IS200EDCFG1B EX2100 DC Feedback Board

GE IS200EDCFG1B EX2100 Exciter Dc Feedback board

Brand:
General Electric PLC
Item NO.:
IS200EDCFG1B
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK

Product Detail

GE IS200EDCFG1B EX2100 DC Feedback Board
Description:
IS200EDCFG1B is part of GE EX2100 Excitation controller series board. Meanwhile, it is a DC output and feedback board.
The EDCF board measures field curent and field voltage at the SCR bridge, andinterfaces to the EISB board in the control panel over a high-speed fiber-optic linkThe fiber-optics provides voltage isolation between the two boards, and high noiseimmmunity. Field current is measured using a shunt in the dc field circuit. The fieldvoltage feedback circuit provides seven selector settings to scale down the bridgevoltage, depending on the type of bridge application.
