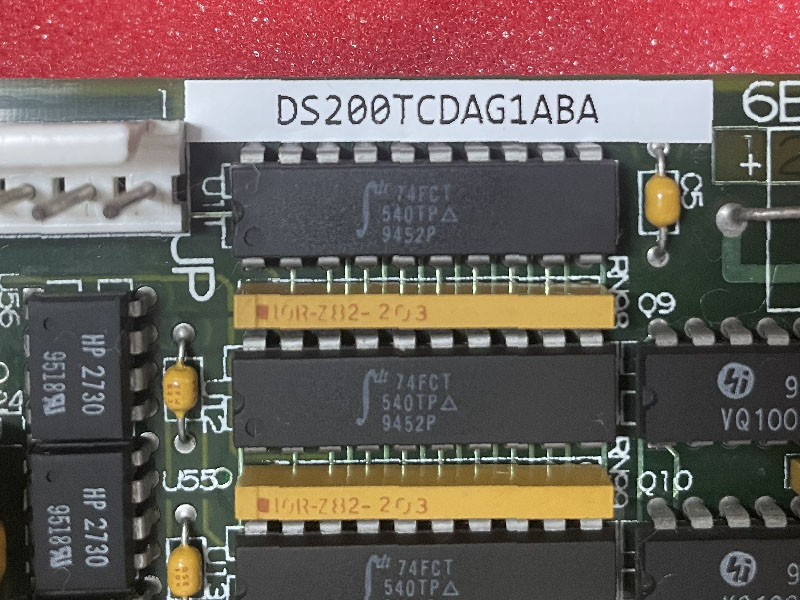

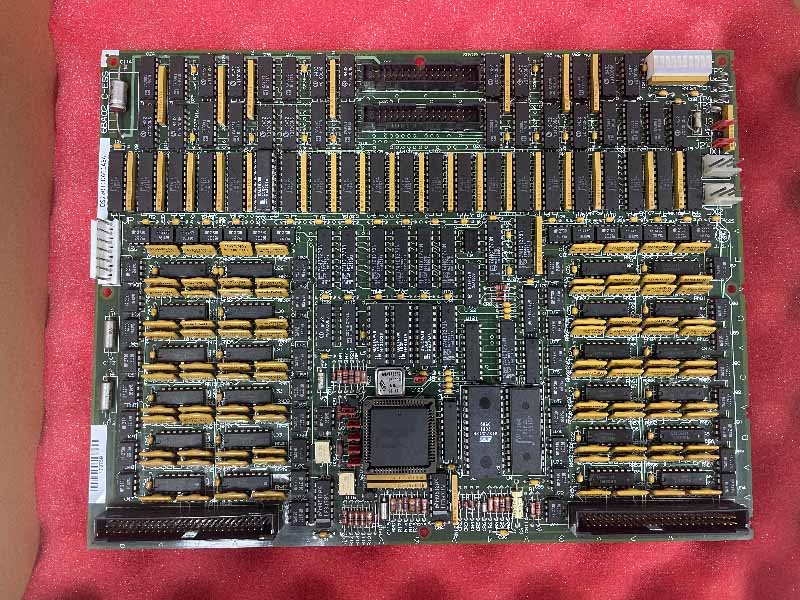

GE DS200TCDAG1ABA Digital I/O Board

GE DS200TCDAG1ABA Mark V series Digital I/O Board

Brand:
General Electric PLC
Item NO.:
DS200TCDAG1ABA
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price:
$999
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
0.53kg
Warranty:
1 year

Product Detail

GE DS200TCDAG1ABA Digital I/O Board
Description:
DS200TCDAG1A is GE Mark V series board. It is a Digital I/O Board (TCDA), located in the digital I/O cores <O11>,<051> and<Q21> if present TCDA processes digital contact input signals from the DTBA andDTBB terminal boards and contact output (relay/solenoid) signals from the two TCRA boards. The signals are transmitted over the IONET to the TCOC board in<R1>,<R2> if<021> is installed and the CTBA terminal board in <R5>.
Hardware. There are eight hardware jumpers on the DS200TCDAG1A board. Jl and J8 are forfactory test. J2 and J3 are for IONET termination resistors. J4, J5. and J6 are used to set up the IONET ID for the board. J7 is the stall timer enable. Refer to Appendix A and the hardware jumper screen on the operator interface for information on the hardware jumper settings for this board.
Software. DS200TCDAG1A I/O configuration constants for the contact input inversions are entered in the I/O Configuration Editor located on the HMI as described below.
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
