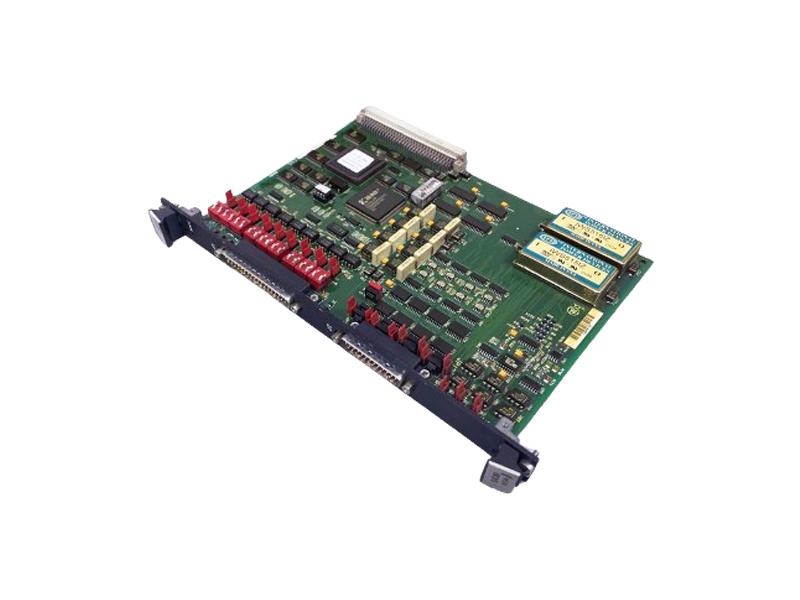

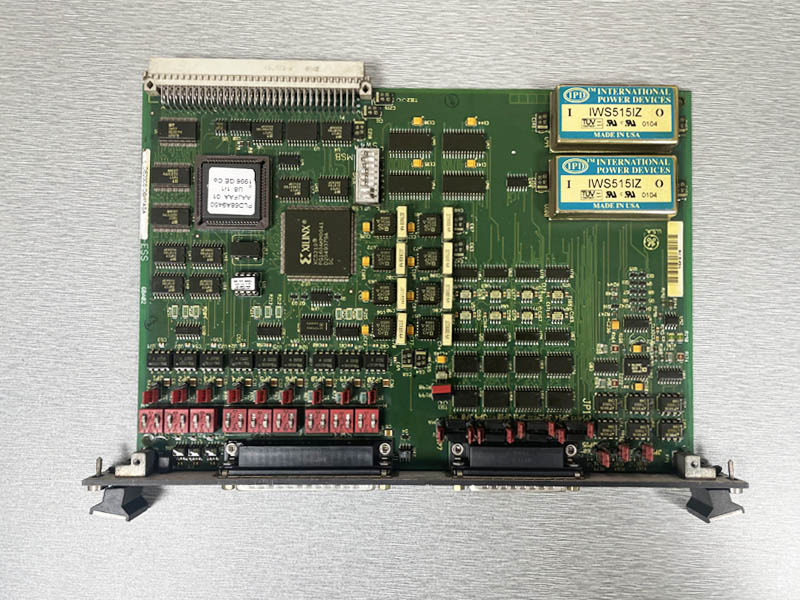

GE DS200SIOBH1ABA VME Stand I/O Card
Description：
DS200SIOBH1ABA is part of GE Mark V series
The SC2000 VME I/O Board (SIOB) is a universal I/O board that can be used with the UC2000V for additional I/O needed in some applications. The SIOB board connects to a standard VME Pl connector and occupies one VME slot. It supports 16-bit data transfers and thestandard I/O address modifier type. The faceplate of the SIOB board provides two l/O connectors (Jl and J2). These are to be attached (by special cables) to theTBA/TBB Terminal Board assembly for external connections. One LED is furnished on the faceplate that is lit when the SlOB board is accessed by the VME.
