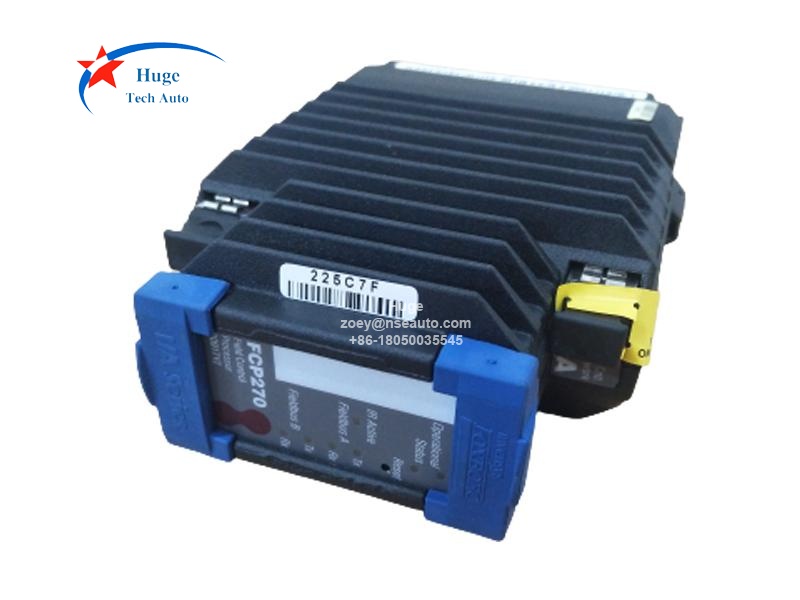

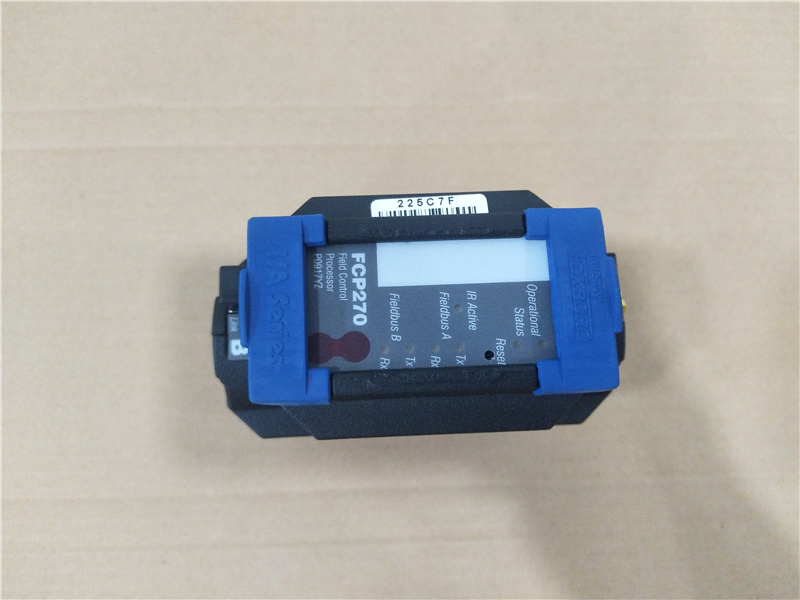

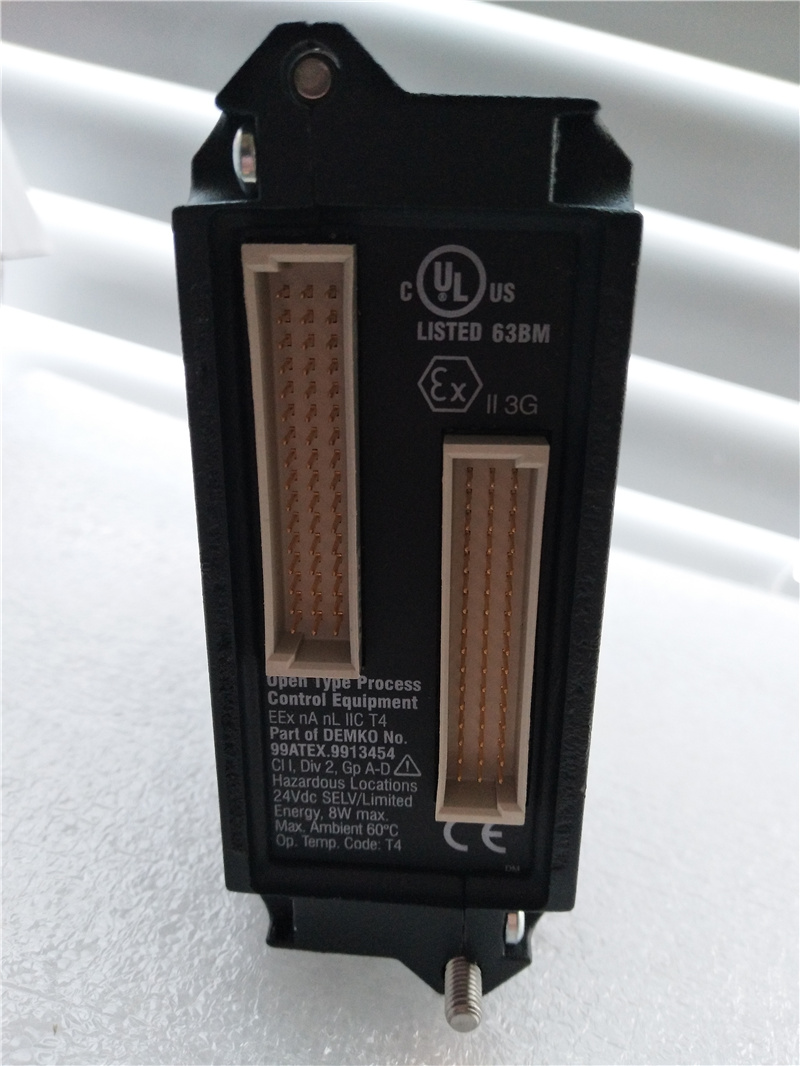

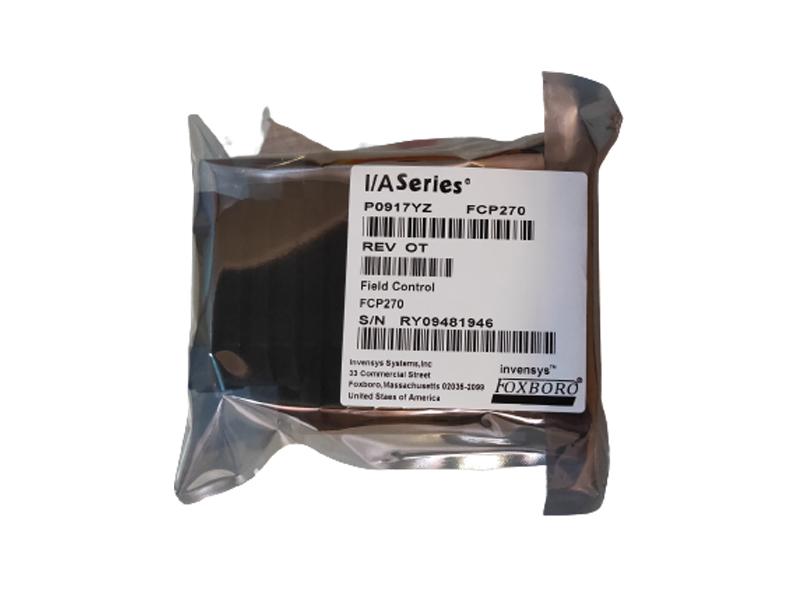

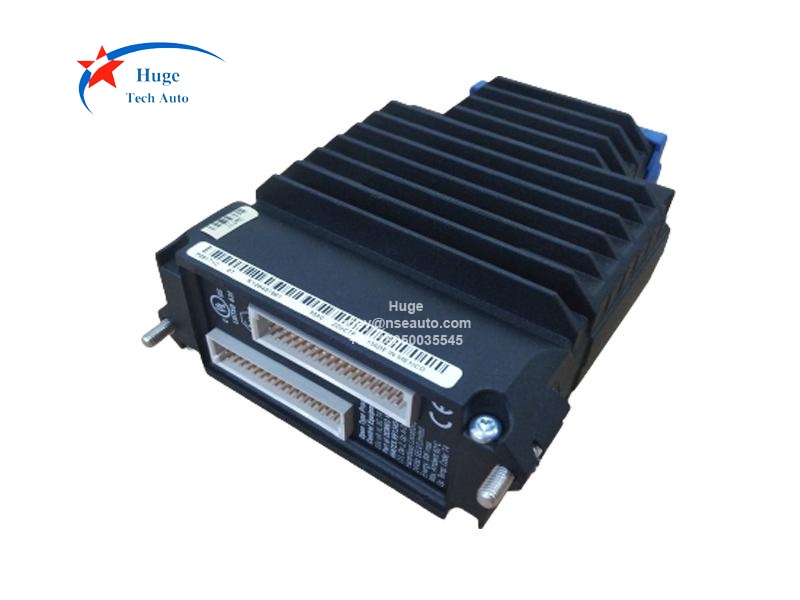

FOXBORO FCP270 P0917YZ Field Control Processor
Description:
The Field Control Processor 270 (FCP270) is a distributed, optionally fault-tolerant, field-mounted
controller module. The FCP270 performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules. It also performs data acquisition and alarm detection and  notification.
The FCP270 connects to The MESH control network via standard fiber optic 100 Mbps Ethernet.

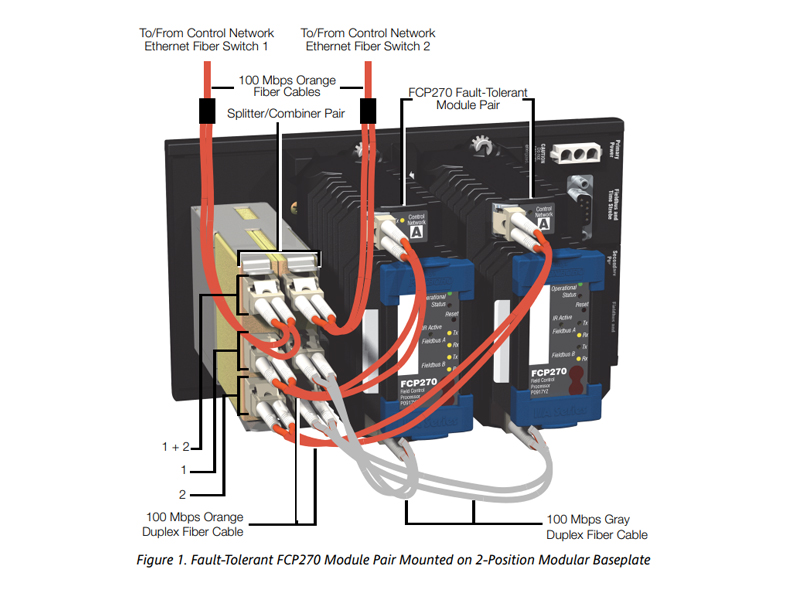

The fault-tolerant version of the FCP270 consists of two processor modules. These modules install in adjacent FCP270 slots in a supported FCP270 baseplate for high speed communication between
the modules.
