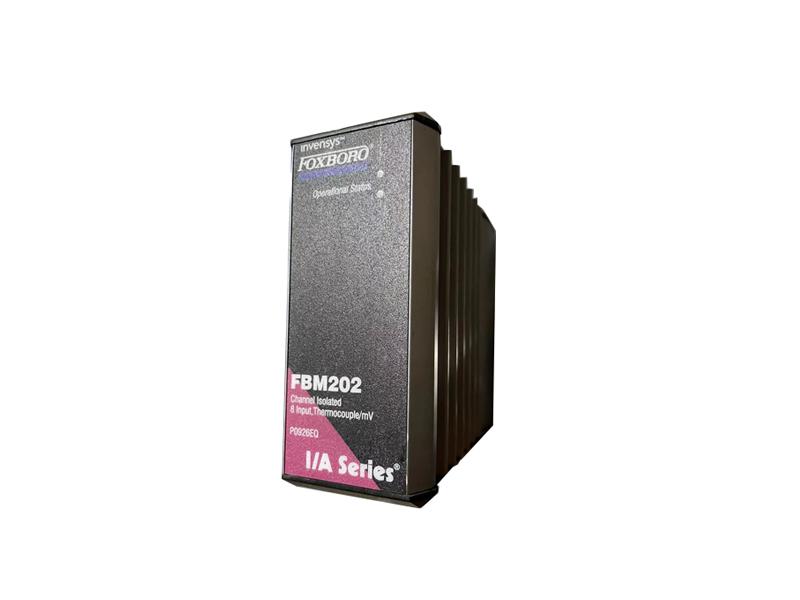

FOXBORO FBM202 P0926EQ Thermocouple/mV Input Module
Description:
FBM202, Thermocouple/mV Input contains eight thermocouple input channels, and one isolated RTD reference junction compensation channel (for terminal temperature sensing). Each thermocouple/mV channel accepts standard thermocouples for various temperature ranges, and each provides thermocouple burnout detection (up-scale). The inputs are galvanically isolated from other channels and ground. The module performs the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant Fieldbus. It executes an Analog Input application program, which provides integration time and Rate of Change Limits configurable options.

Two types of passive termination assemblies (TAs) are available for the FBM202:
• DINrail mounted TAs, similar to those used with the other 200 Series FBMs
• Baseplate-mounted TA, which mounts directly onto the field I/O connectors of the 200 Series baseplate. These TAs provide field I/O wiring support for two FBM202s in paired slots
Whenconnected to the appropriate TAs, the FBM202 module provides functionality formerly provided by the 100 Series Fieldbus Modules (FBMs) I/O subsystem. TAs are available and support the functionality of the 100 Series FBM02.

Features
• 8channelsfor thermocouple input signals
• 1isolated RTDreference junction compensation channel (for terminal temperature sensing)
• Eachinput channel is galvanically isolated • Ruggeddesignsuitable for enclosure in Class G3 (harsh) environments
• Execution of an analog input application program that provides conversion time and configurable options for Rate of Change Limits
• Highaccuracy achieved by sigma-delta data conversions for each channel
• TAsforlocally or remotely connecting field wiring to the FBM202
