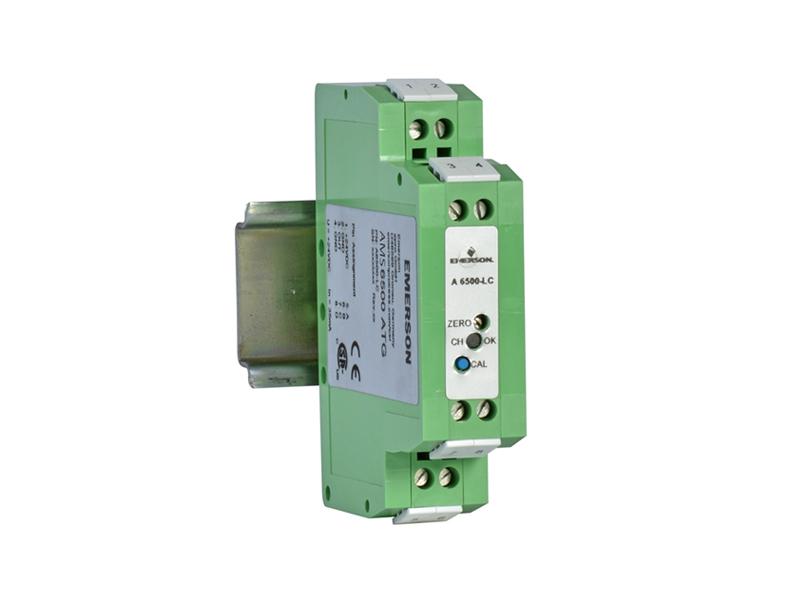

Emerson A6500-LC, LVDT Converter
Description:
A6500-LC is a member of AMS 6500 ATG family. It is a Converter for inductive sensors, Part of the protection system for rotatingequipment with integrated prediction capabilities. The A6500-LC LVDT Converter is a single channel device to connect inductive half-bridge sensors or LVDT sensors to the A6500-UM Universal Measuring Card. The converter powers the sensor with an excitation voltage and converts the displacement proportional sensor signal to an output voltage range that is suitable to the Universal Measuring Card. The converter can be powered either by the Universal Measuring Card or by an external power supply. The following sensor types can be connected:
• All types of the PR 9350/xx linear displacement transducers
• K20315/xx linear displacement transducer sets
• Inductive half-bridge sensors
• Inductive LVDT sensors as PR 9314/41
The A6500-LC has a fixed sensitivity of 4 V / (100 mV/V). The output voltage range depends on the connected sensor. On request, the A6500-LC can be calibrated on one sensor (factory calibration). The measuring range of the sensor is scaled on the full output voltage range of 2 V to 18 V. Then, the sensor and the A6500-LC form a measuring chain. Replacing the sensor requires a recalibration of the A6500-LC. The sensor supply voltage, supply current, and the sensor signal are supervised by the internal supervision function.
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
