ABB DP820 3BSE013228R1 Pulse counter 2 channels, separate returns, 0.25 Hz - 1.5 MHz, signal voltage: 5 / 12 V d.c.
ABB DP820 3BSE013228R1 Pulse counter 2 channels, separate returns, 0.25 Hz - 1.5 MHz, signal voltage: 5 / 12 V d.c.
Brand:
ABB DCSItem NO.:
DP820Order(MOQ):
1 PCPayment:
T/TMarket Price:
999Product Origin:
Sweden (SE)Shipping Port:
XIAMENLead Time：
IN STOCKWeight：
0.15 kgWarranty:
1 year

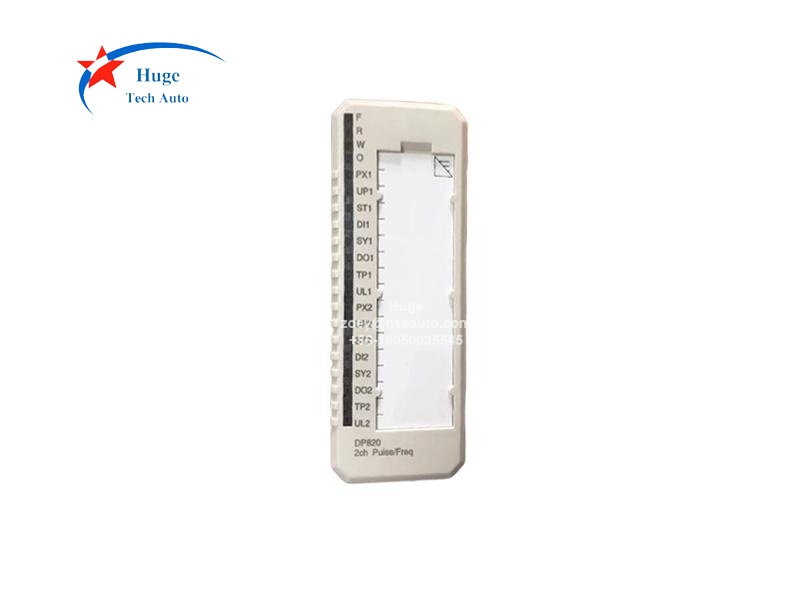

ABB DP820 3BSE013228R1 Pulse counter 2 channels
Description:
DP820 is an two-channel pulse counting module for incremental pulse transmitters up to 1.5 MHz. Each channel contains counters and registers for position/length and speed/frequency measurement. Each channel provides three balanced inputs for connection of a pulse transmitter, one digital input and one digital output. Pulse transmitters with RS422, +5 V, +12 V, +24 V and 13 mA interfaces can be connected to DP820.
Use DP820 with Module Termination Units TU810V1, TU812V1, TU814V1, TU830V1, TU833.
Features：
Two channels
Interface for RS422, 5 V, 12 V, 24 V and 13 mA transducer signal levels
Simultaneous pulse count and frequency measurement
Pulse count (length/position) by accumulation in a bidirectional 29 bit counter
Frequency (speed) measurement 0.25 Hz - 1.5 MHz
