DI830 3BSE013210R1 ABB Digital Input 24V 16 channels

ABB DI830 3BSE013210R1 Digital Input 2x8 channels, 24V

Brand:
ABB DCS
Item NO.:
DI830 3BSE013210R1
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
800
Price:
$500
Product Origin:
Sweden (SE)
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
0.3 kg
Warranty:
1 year

Product Detail

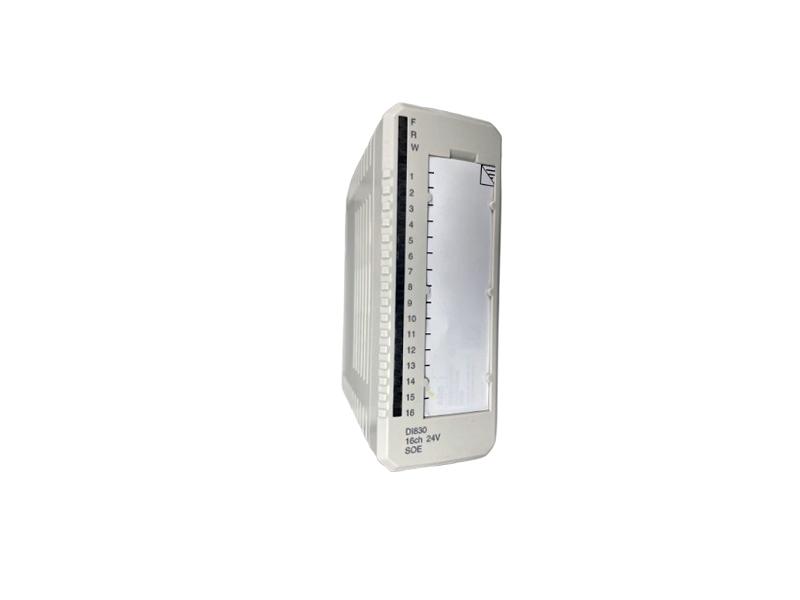

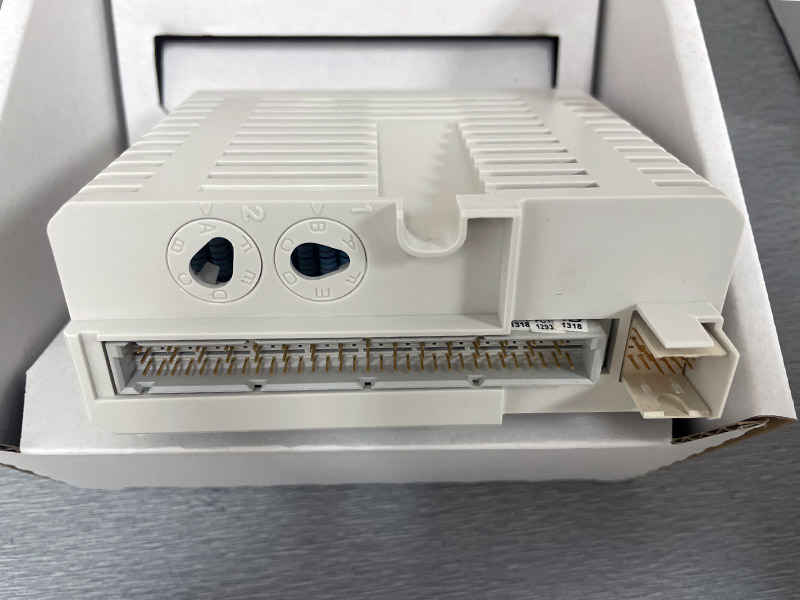

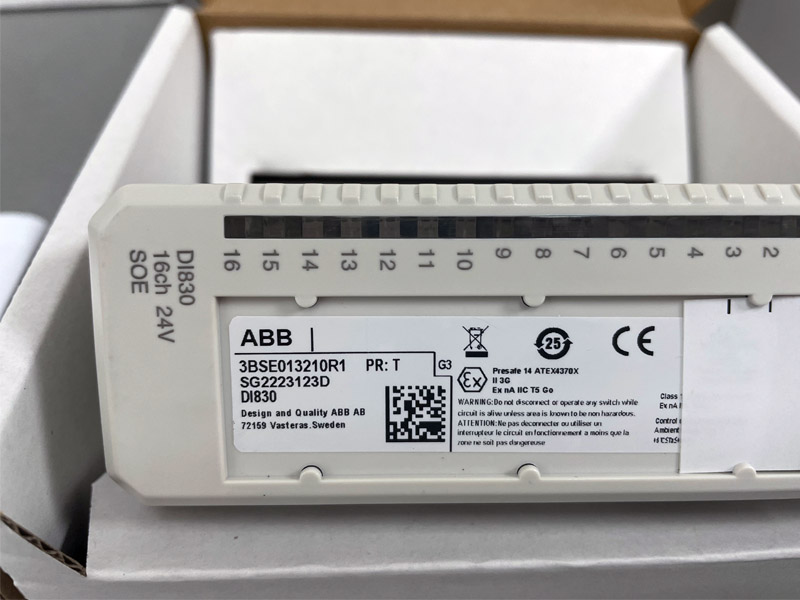

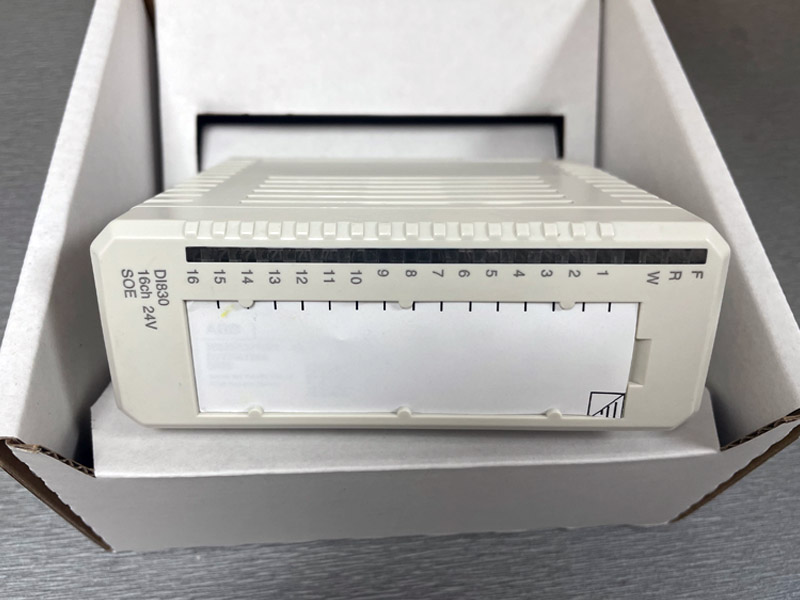

ABB DI830 3BSE013210R1 Digital Input 24V 16 channels
Description:
DI830 is belong to ABB 800xA control system I/O module. The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
Process power supply supervision (results in a module warning, if detected).
Event queue full.
Time synchronization missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.

Features:
· 16 channels for 24 V d.c. inputs with current sinking
· 2 isolated groups of 8 channels with voltage supervision
· Input status indicators
· Sequence of event (SOE) functionality
· Shutter filter

FAQ:

How long is the warranty of DI830?
We supply 1 year warranty for free.

What's the features of DI830?
Features:
· 16 channels for 24 V d.c. inputs with current sinking
· 2 isolated groups of 8 channels with voltage supervision
· Input status indicators
· Sequence of event (SOE) functionality
· Shutter filter

How about the connectivity of DI830?
S800 I/O is a comprehensive and modular process I/O system that communicates with parent controllers either direct connected using the Modulebus or over industry-standard field buses. Thanks to its broad connectivity it fits a wide range of process controllers from ABB and others.
