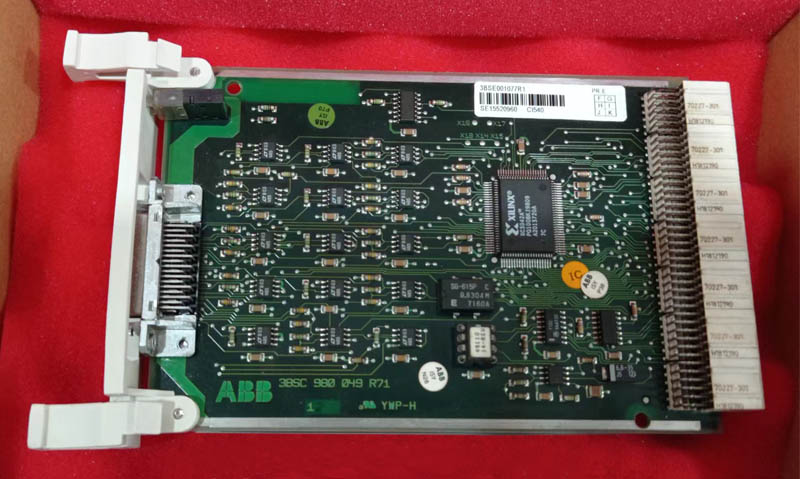

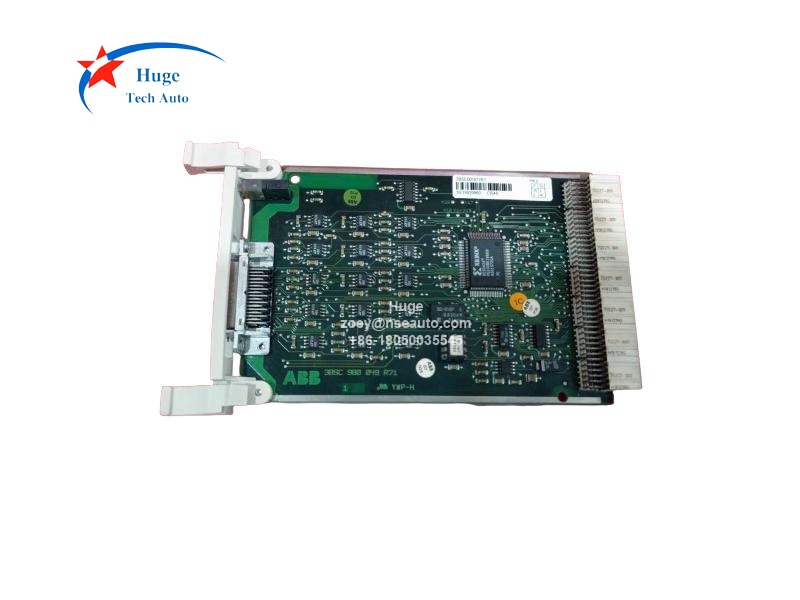

CI540 3BSE001077R1 ABB S100 I/O Bus Extension Submodule
Description:
CI540 is one of ABB Advant OCS system Personality Modules. The CI540 S100 I/O Personality Module uses one of the two available positions on a Carrier Module and can support up to five S100 I/O Subracks. When pairs of S100 I/O Personality Modules are installed, they may be configured either as one redundant S100 I/O Bus or as two independent, non-redundant S100 Buses. Normally, a redundant pair of S100 I/O Personality Modules would reside on separate Carrier Boards when using the AC460.
In a redundant communication configuration, two CI540 submodules in the AC 460 are used, and two DSBC 175 Bus Extender Boards are inserted into the last two positions of the I/O subrack. Together, they interface between the Controller’s main Processor Module and the backplane bus on the I/O subrack.
Dimensions：234x 31.5x 108 mm
Weight: 0.115 kg
