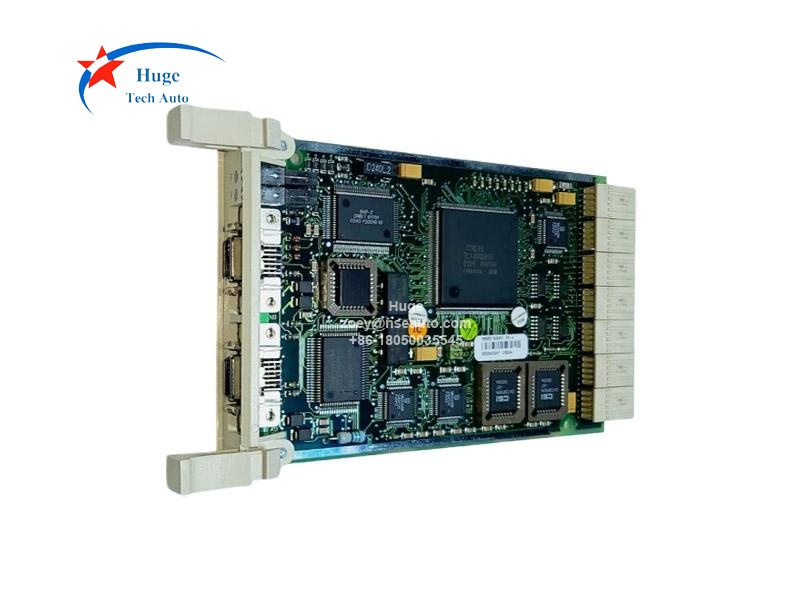

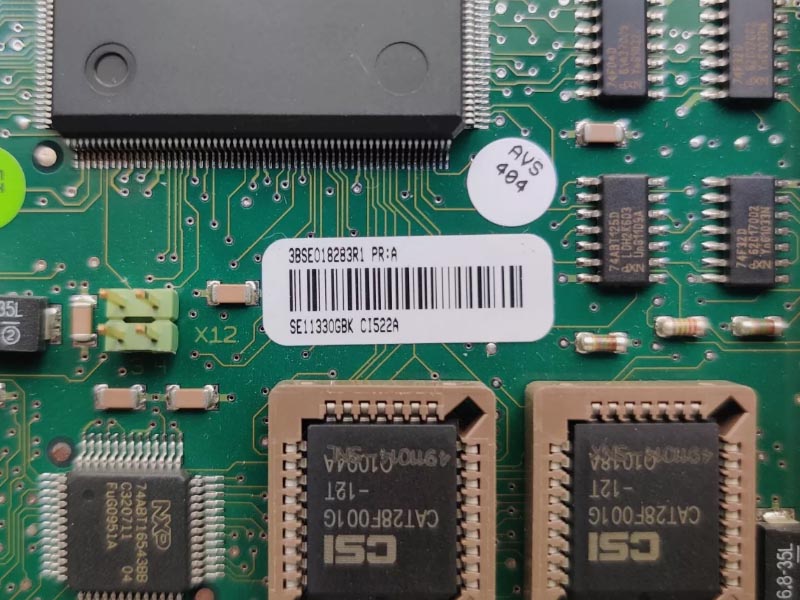

ABB CI522A 3BSE018283R1 AF100 Interface Module
Description:
CI522A is ABB Advant Fieldbus 100 Interface Module. CI522A is the successor of CI522.
Advant Controller 400 Series is connected to Advant Fieldbus 100 using the communication interface CI522, which is mounted in a submodule carrier. The CI522 can be configured as single or redundant, where two CI522s can form a redundant pair.

Communication interface redundancy is achieved by using two CI522s connected to a media redundant bus. CI522 Communication interface redundancy is available for Advant Controller 400 Series. CI522 is mounted in a submodule carrier module in Advant Controller 400 Series. CI522 must always have external modems – TC516 (for twisted pair), TC625 (4 items) or TC512 (4 items). The cables that are used between CI522 and the external modems are TK803V018 (AC 450/AC 460) or TK803V036 (AC 410).
