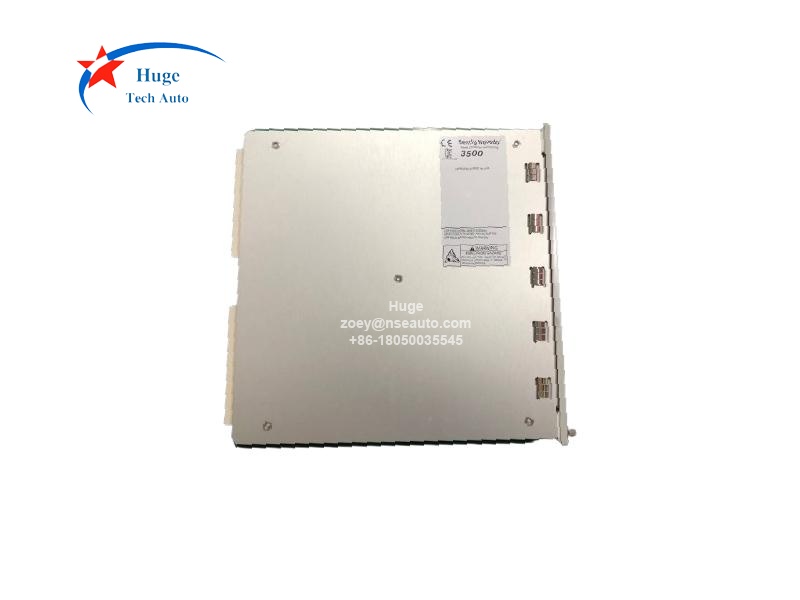

Bently Nevada 3500/60 Temperature Monitor (without recorders) 163179-01
Bently Nevada 3500/60 Temperature Monitor (without recorders) 163179-01
Brand:
Bently Nevada TSIItem NO.:
163179-01Order(MOQ):
1Payment:
T/TMarket Price:
999Product Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time:
IN STOCKWeight:
0.91 kgWarranty:
1 year
Bently Nevada 3500/60 Temperature Monitor (without recorders) 163179-01
Description:
163179-01 is 3500/60 Temperature Monitor. Compare to 133811-01, 163179-01 is the new version of 3500/60. Temperature Monitor 133811-01 is replaced by 163179-01 now.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them
against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user
can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate
operation and to avoid single-point failures.
Ordering information:
