Bently Nevada 3500/15 AC Power Supply Module 127610-01
Description：

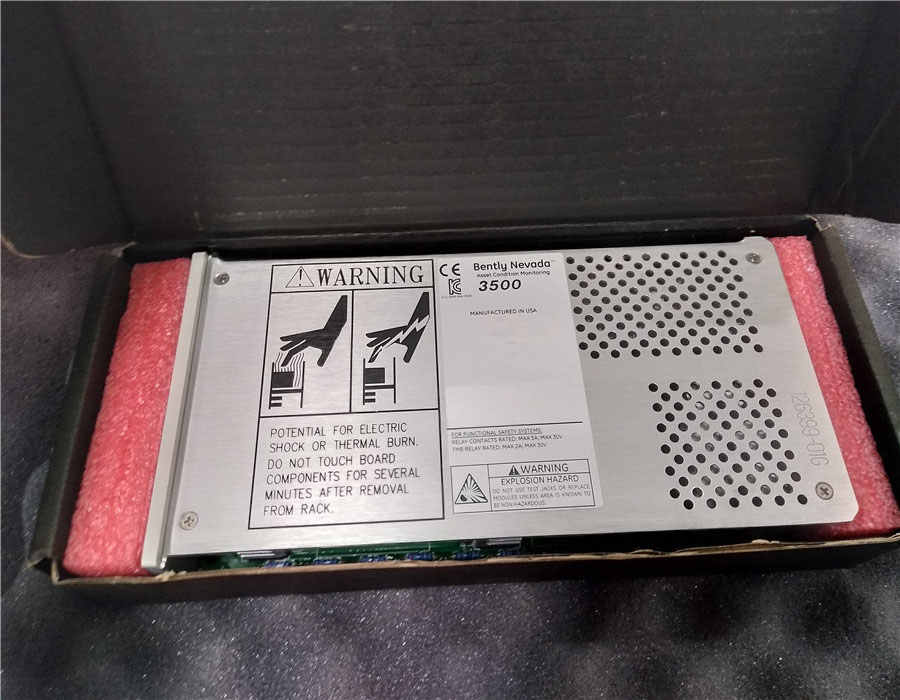

127610-01 is Bently Nevada 3500/15 AC Power Supply Module.
The 3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed,the second supply is the backup for the primary one. Removing or inserting either power supply module does not disrupt operation of the rack as long as a second powersupply is installed.
The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
LegacyACPower
Universal AC Power
HighVoltage DC Power Supply
LowVoltage DC Power Supply
Usually, we called 127610-01as 3500/15 front card. For 127610-01 is are located on the left side of the rack. Each slot accommodates one power supply. Both slots can hold a power supply at the same time, allowing for redundant power supplies.
Dimensions: 120.7 mm x 50.8 mm x 251.5 mm(4.75 in x 2.0 in x 9.9 in)
Weight: 1.39 kg (3.06 lb)
