Bently Nevada PN 125800-01 of 3500/25 module new arrival stock for promotion

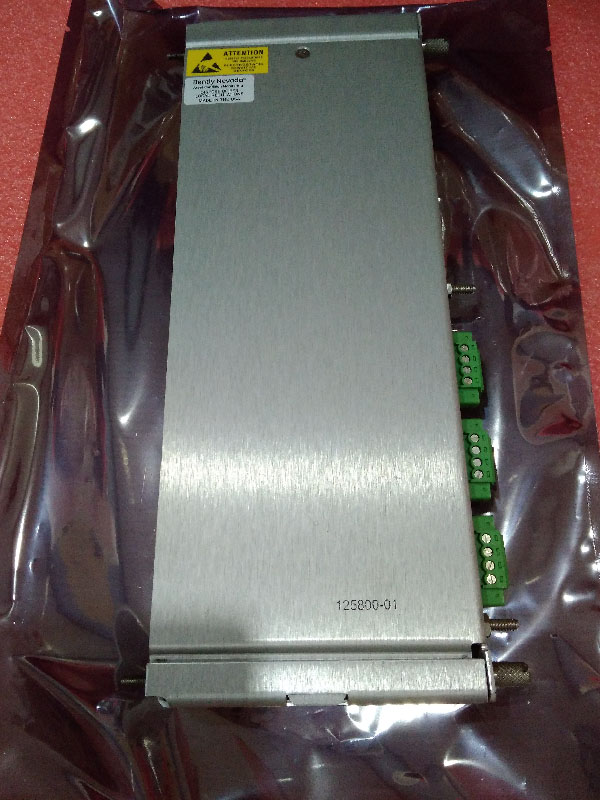

Bently Nevada 125800-01 3500/25-01-01-00 Keyphasor I/O Module (Internal Terminations)

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    125800-01
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Market Price:

    999
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Weight:

    0.46kg
  • Warranty:

    1 year
Product Detail
Bently Nevada 125800-01 3500/25-01-01-00 Keyphasor I/O Module (Internal Terminations)
Description:
125800-01 is 3500/25 Keyphasor Module Non-Isolated Internal Termination Keyphasor I/O Module. For Internal Termination Keyphasor I/O Modules you must wire each Keyphasor transducer to the I/O Module individually. 25800-01 is 1 full-height rear slot height, installed behind 3500/25 149369-01. The intent of this I/O module was primarily to measure shaft speed and not phase.
Keyphasor Modules used with the Internal Barrier Internal Termination I/O Module option require the following firmware and software versions:
3500/25 Keyphasor Module Firmware: Version 1.06 or later
3500 Rack Configuration Software: Version 2.30 or later
The 3500 System can accommodate up to four Keyphasor transducers per rack by installing two 3500/25 Keyphasor modules in the rack.
When two 3500/25 Keyphasor modules are used, they must be installed in the same rack slot, one above the other.
Keyphasor signals from the 3500/25 module(s) can be routed to appropriate monitor modules via the 3500’s rack backplane for use in speed, phase, tracking filter, and other measurements.
Ordering Information:
149369-01 Enhanced Keyphasor Module
125800-01 Keyphasor I/O Module (Internal Terminations)
126648-01 Keyphasor I/O Module (External Terminations)
125800-02 Isolated Keyphasor I/O Module (Internal Terminations) (Designed for use with Magnetic Pickups)
126648-02 Isolated Keyphasor I/O Module (External Terminations) (Designed for use with Magnetic Pickups)
135473-01 Keyphasor I/O Module (Internal Barriers and Internal Terminations
