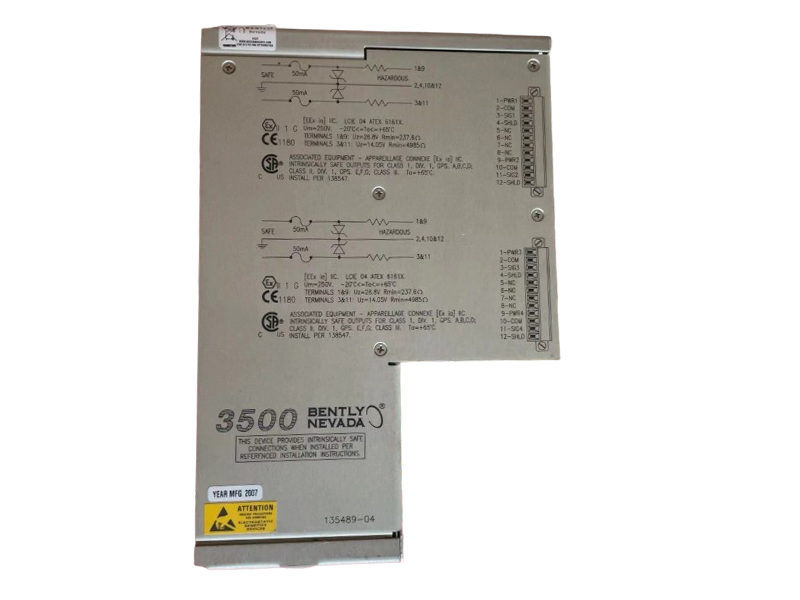

Bently Nevada 3500/40-03-00 Proximitor I/O Module with Internal Barriers and Internal Terminations 135489-04
Description:
135489-04 is 3500/40-03-00 I/O Module.
The Internal Barrier I/O modules require you to individually connect eachtransducer to the Barrier I/O module. This module provides 4 channels of intrinsically safe signal conditioning for Proximitor transducers and has 2 internally-mounted zener barrier modules, 1 module for each pair of transducerchannels. Systems that use internal barrier I/O modules require you to use a 3500Earthing Module to provide an intrinsically safe earth connection for intrinsically safe applications.

Input/Output (I/O) Modules receive signals from the transducers and route thesignals to the Proximitor/Seismic Monitor. The I/O module supplies power to the transducers and provides a 4 to 20 mA recorder output for each transducer inputchannel. You can install only 1 I/O module at any one time. You must install theI/O module behind the monitor in a rack mount or panel mount rack, or above themonitor in a Bulkhead rack.

I/O modules can have either internal or external terminations. Internaltermination requires that you wire each transducer and recorder directly to theI/O module. External termination lets you simplify the wiring to the I/O modules ina 3500 rack by using a 25-pin cable to route the signals from the 4 transducersand a 9-pin cable to route the signals from the recorders. External terminationI/O modules allow you to use External Termination blocks so that you can place the transducer wiring in any convenient location

Ordering Information:
3500/40M - AA-BB

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
