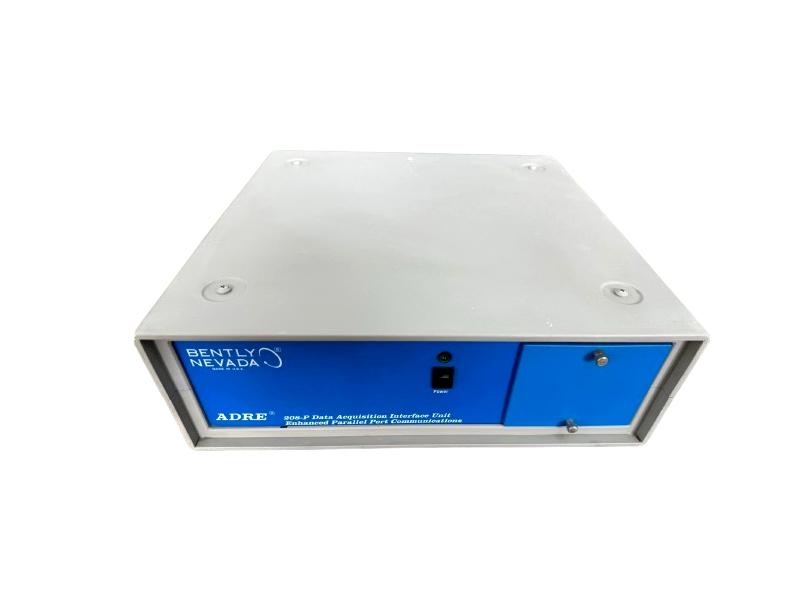

Bently Nevada ADRE 208-P Data Acquisition Interface Unit 102351-04-01
Description:
208-P DAIU (Data Acquisition Interface Unit) is a portable system for multi-channel (up to 16) machinery data acquisition.
Unlike other general-purpose computer-based data acquisition systems, ADRE for Windows is specifically designed for capturing machinery data. It is an extremely versatile system, incorporating the features and capabilities of oscilloscopes, spectrum analyzers, filters, and recording instruments. As a result, this additional equipment is seldom, if ever, needed. When using the system's real-time display capability, data is presented on the computer screen as it is captured. For users of previous ADRE systems, ADRE for Windows is backwards compatible with existing ADRE 3 databases.
An ADRE for Windows® data acquisition and reduction system consists of:
• One (or two) 208 Data Acquisition Interface Unit(s) or
• One (or two) 208-P Data Acquisition Interface Unit(s) and
• ADRE for Windows® software and
A computer system capable of running ADRE for Windows® software.
The system’s Data Acquisition Interface Units can operate using ac or battery power, and are fully portable, allowing convenient operation in test stands or at machinery sites. It is highly configurable to provide support for virtually all standard and non-standard input types including both dynamic transducer
signals (such as proximity probes, velocity transducers, accelerometers, and dynamic pressure sensors), static signals (such as process variables from transmitters), and Keyphasor® or other speed input signals. The system also supports multiple triggering modes for automated data acquisition, allowing it to be used as a data or event logger without an operator present.
Dimensions：36.8 cm x 35.6 cm x 12.7 cm
Ordering number:
208-P Data Acquisition Interface Unit:

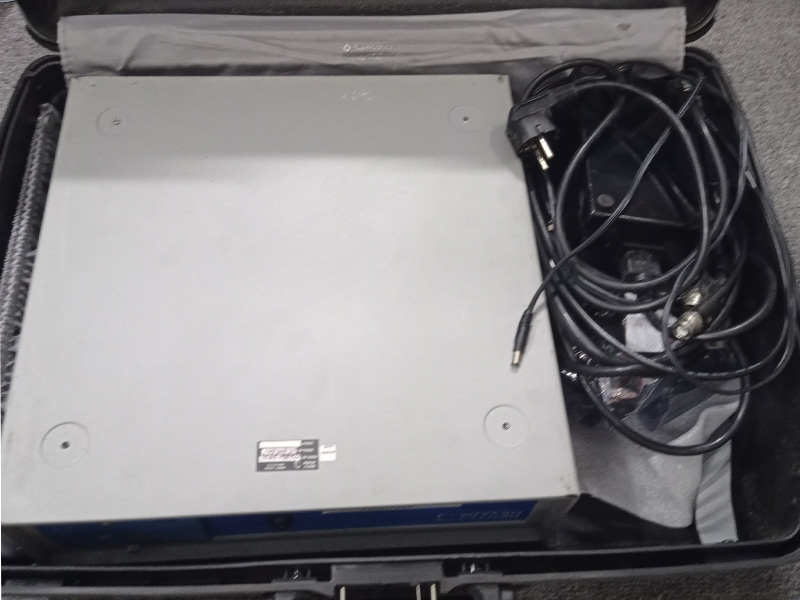

Includes power cord and communication cable.
102351-AXX-BXX
A: Adapter Type
0 0 No Adapter (208 DAIU)
0 2 ISA Interface Card (208 DAIU)
0 4 Enhanced Parallel Port (208-P DAIU)
B: Battery Types
0 1 Standard Battery
0 2 High Temperature Battery

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
