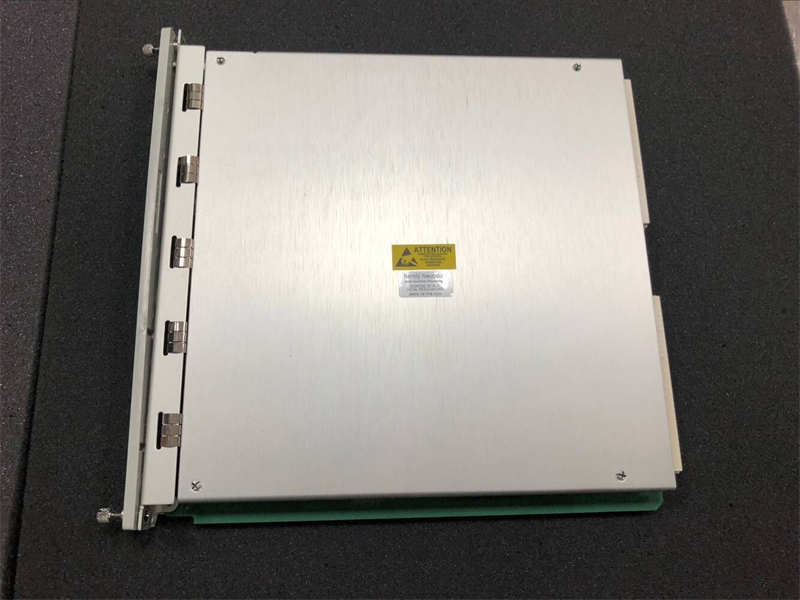

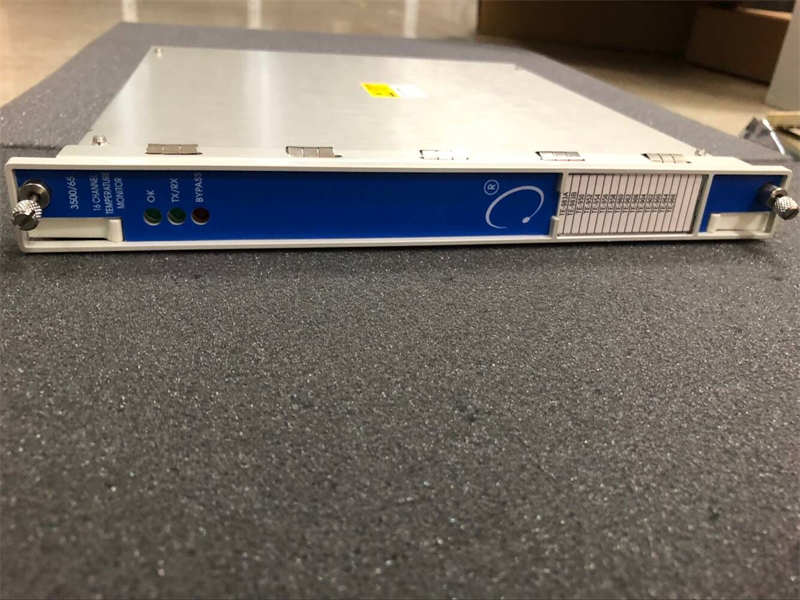

Bently Nevada  3500/65 145988-02 16-Channel Temperature Monitor
Description:

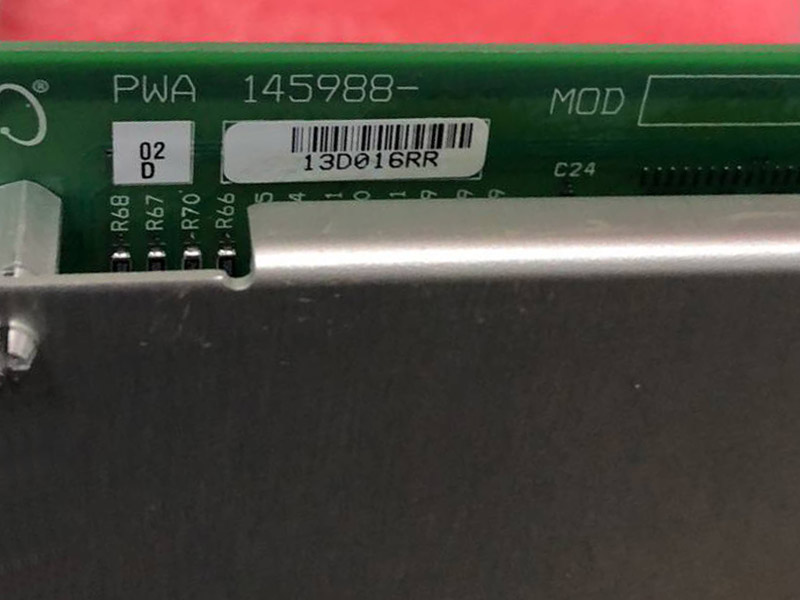

The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints. 145988-02 is the main card of 3500/65. 145988-02 need 1 full-height front slot when installed.
The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid single-point failures.
Ordering Information:
3500/65-AA-BB
A: I/O Module Type
01  RTD/Isolated Tip TC with Internal Terminations
02  RTD/Isolated Tip TC with External Terminations
B: Agency Approval Option
00  None
01  CSA/NRTL/C
02  CSA/ATEX

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
