Bently Nevada 3500/62-01-00 I/O module 136491-01

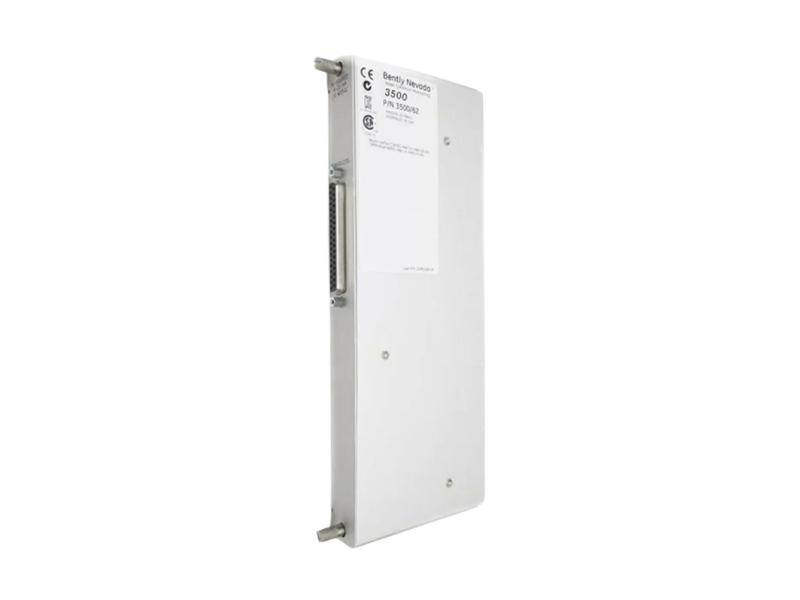

Bently Nevada 3500/62-01-00 136491-01 I/O Module with internal terminations

Brand:
Bently Nevada TSI
Item NO.:
136491-01
Order(MOQ):
1 PC
Product Origin:
USA
Weight：
0.46 kg
Warranty:
1 year

Product Detail

Bently Nevada 3500/62-01-00 136491-01 I/O Module with internal terminations
Description:
136491-01 is belong to Bently Nevada 3500/62-01-00 I/O module. It is -10 Vdc to +10 Vdc I/O Module with internal terminations.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 offers I/O modules for three signal input scenarios: +/-10 Volts DC, isolated 4-20 mA, or 4-20 mA with Intrinsically Safe zener barriers. The Internal Barrier I/O provides external power input terminals to provide intrinsically safe power to the 4-20 mA transducers.
Operating Temperature: 0°C to +65°C (+32°F to +149°F) when used with Internal Barrier I/O Module (Internal Termination).
Storage Temperature: 40°C to +85°C(-40°F to +185°F).
Humidity: 95%, noncondensing
Dimensions: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
Rack Space Requirements: 1 full-height rear slot.
Ordering Information:
