3500/61 is the 6 channels of Temperature Module of 3500/61.
3500/61 is the 6 channels of Temperature Module of 3500/61.
Brand:
Bently Nevada TSIItem NO.:
163179-02Order(MOQ):
1Payment:
T/TProduct Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time：

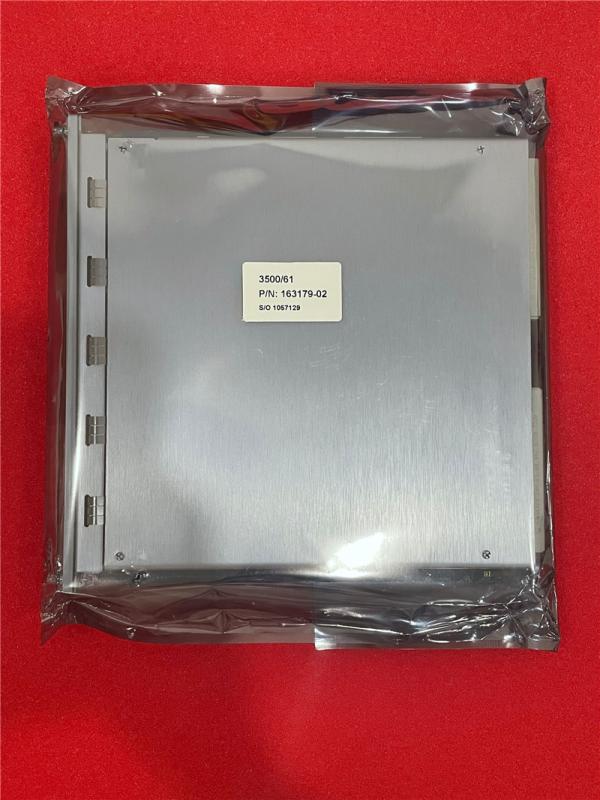

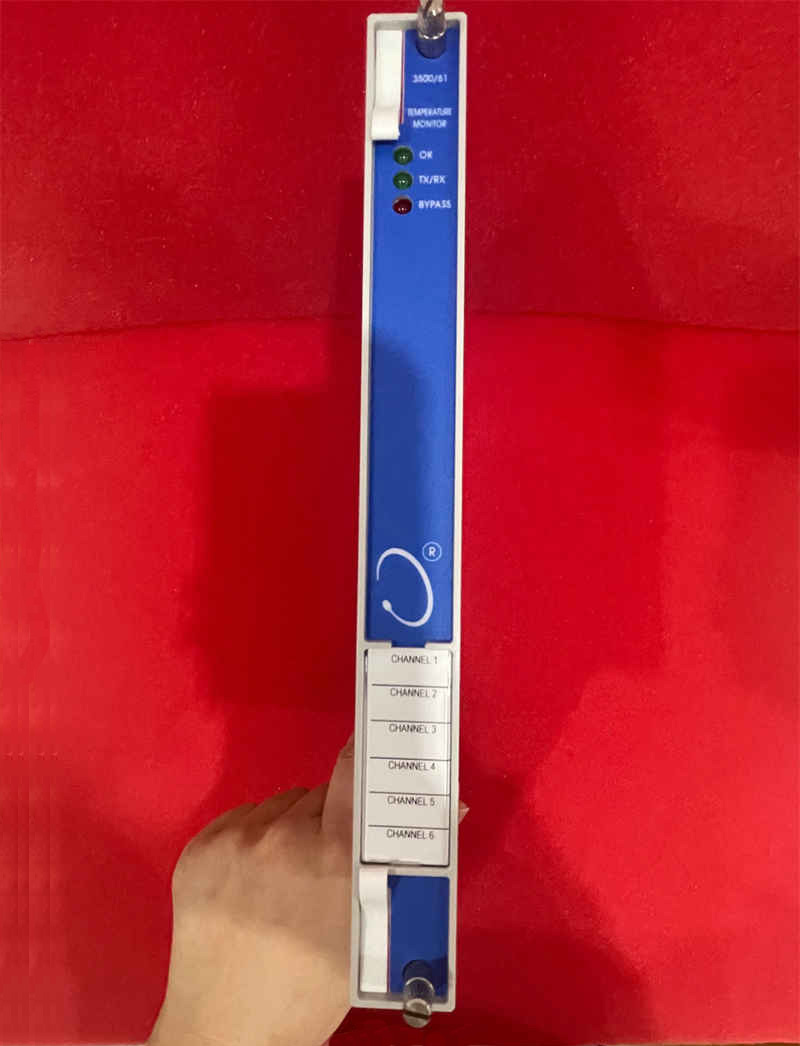

IN STOCKBently Nevada 3500/61 Temperature Module 163179-02
Description:
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The user programs the modules to perform
either RTD or TC temperature measurements using the 3500 Rack Configuration
Software. Different I/O modules are available in RTD/TC non-isolated or TC
isolated versions. The user can configure the RTD/TC non-isolated version to
accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated
version provides 250 Vdc of channel-to-channel isolation to protect against
external interference.
When used in a
Triple Modular Redundant (TMR) configuration, temperature monitors must be
installed adjacent to each other in groups of three. When used in this
configuration, the system employs two types of voting to ensure accurate
operation and to avoid single-point failures.
Ordering Information:
3500/61-AA-BB
|
A: I/O Module Type |
|
|
01 |
RTD/TC Non-isolated I/O Module Internal Terminations |
|
02 |
RTD/TC Non-isolated I/O Module External Terminations |
|
03 |
TC Isolated I/O Module Internal Terminations |
|
04 |
TC Isolated I/O Module External Terminations |
|
05 |
RTD/TC Non-isolated I/O Module with Internal Barriers |
|
B:Agency Approval Option |
|
|
00 |
None |
|
01 |
CSA/NRTL/C (Class 1, Div 2) |
|
02 |
ATEX/ IECEx/ CSA (Class 1, Zone 2) |
Declaration of Conformity:
3500/61
163179-02
3500/61
Temperature Monitor (with recorders)
133819-02
3500/61 RTD/TC
Non-Isolated I/O Module Internal Terminations.
133827-02
3500/61 RTD/TC
Non-Isolated I/O Module External Terminations.
133835-02
3500/61 TC
Isolated I/O Module Internal Terminations.
133843-02
3500/61 TC
Isolated I/O Module External Terminations.
133892-01
3500/61 Recorder
Output External Termination Block (Terminal Strip connectors).
133900-01
3500/61 Recorder
Output External Termination Block (Euro Style connectors).
136711-02
3500/61 RTD/TC I/O
Module with Internal Barriers and Internal Terminations. (Not-Isolated)
