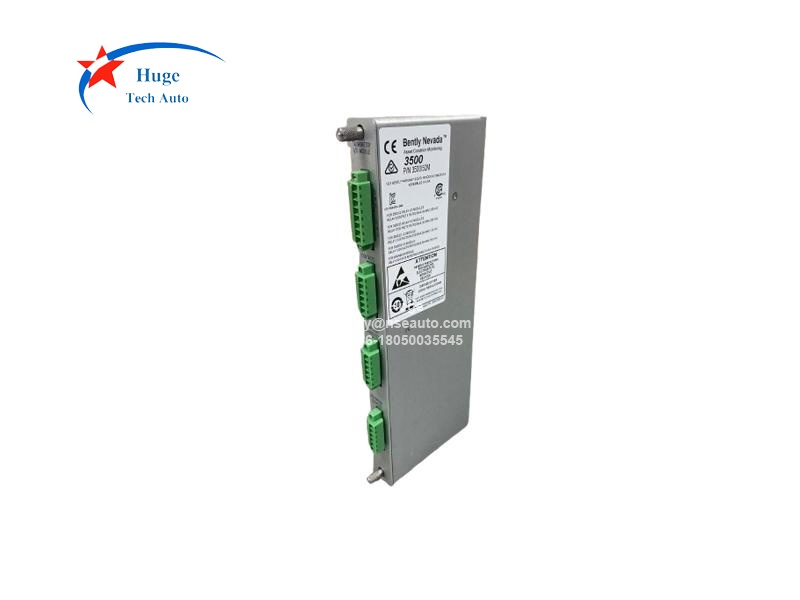

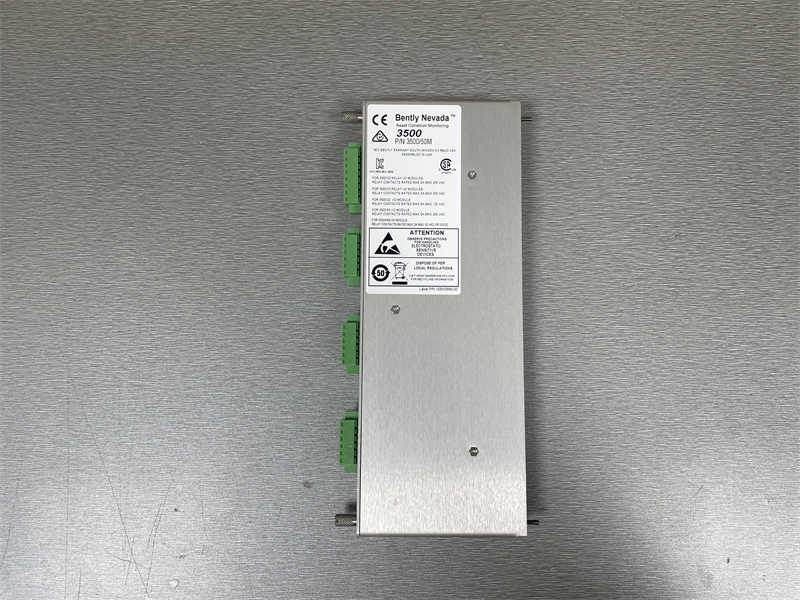

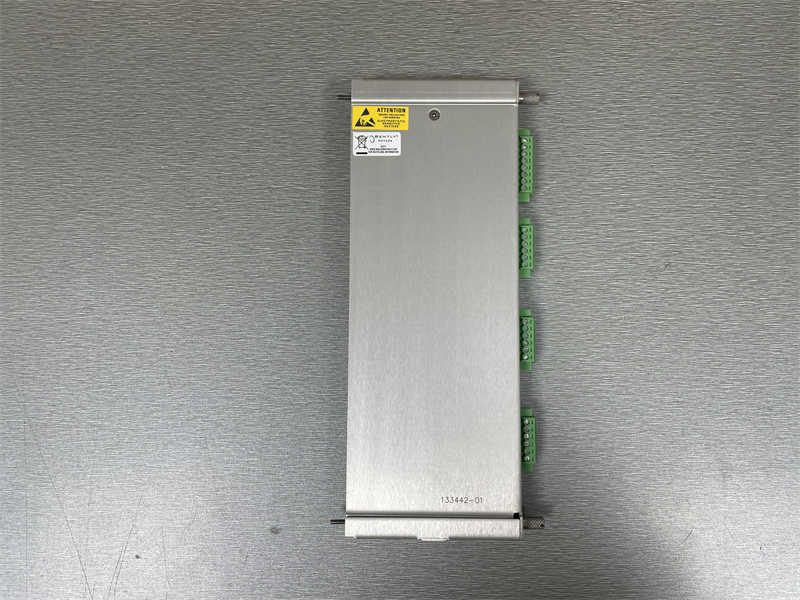

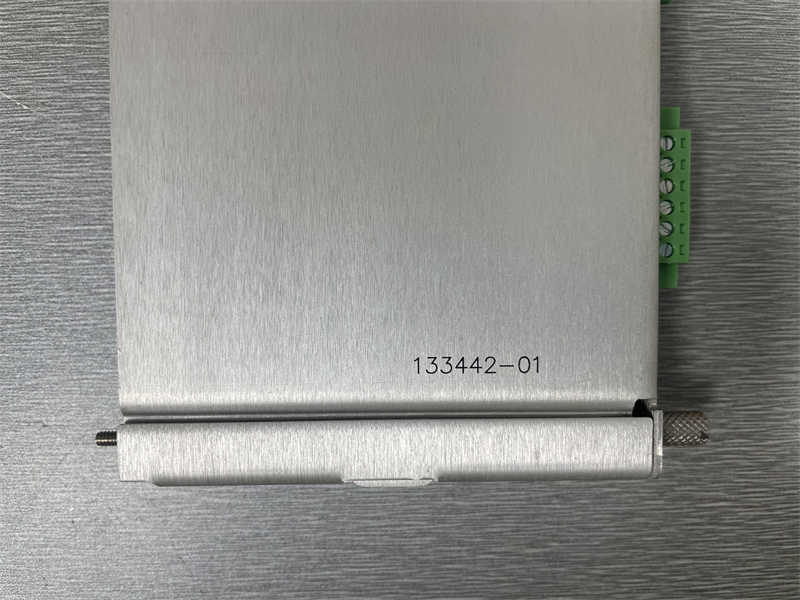

Bently Nevada 3500/50-01-00 133442-01 I/O Module with Internal Terminations
Description:
133442-01 is Bently Nevada 3500/50 I/O Module. There are 3 types of I/O module for 3500/50M. 133442-01 is the  I/O Module with Internal Terminations. 133442-01 requests 1 full-height rear slot, installed behind the 3500/50M main module 288062-02.
The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.

Signal: Each 3500/50M Tachometer Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups.
Input signal range: +10.0 V to -24.0 V
Input impedance: 7.15 k Ω
Power consumption: 5.8 watts, typical
Transducers: Accepts 1 to 2 proximity transducer signals
Transducer Power Supply: 24 Vdc, 40 mA maximum per channel
Recorder: +4 to +20 mA
Voltage: 0 to +12 Vdc range across load, Load resistance is 0 to 600 Ω

Ordering Information:
3500/50-AA-BB
A: I/O Module Type
01  I/O Module with Internal Terminations
02  I/O Module with External Terminations
04  I/O Module with Internal Barriers and Internal Terminations
B: Hazardous Area Approval Option
00  None
01  CSA/NRTL/C (Class 1, Division 2)
02  ATEX/IECEx/CSA (Class 1, Zone 2)
Spares:
288062-02  3500/50M Tachometer Module
133442-01  I/O Module with Internal Terminations
136703-01  Discrete Internal Barrier I/O Module with Internal Terminations
133434-01  I/O Module with External Terminations
133450-01  TMR I/O Module with External Terminations

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

FAQ:
1. How can we figure out the I/O module type.
The second group suffix of the complete number can show the type of I/O module.

2. What's the warranty?
We supply 1 year warranty.
