Bently Nevada 3500/45 Position Monitor

Bently Nevada 3500/45 Position Monitor 176449-04

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    176449-04
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Market Price:

    999
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Weight:

    0.91 kg
  • Warranty:

    1 year
Product Detail

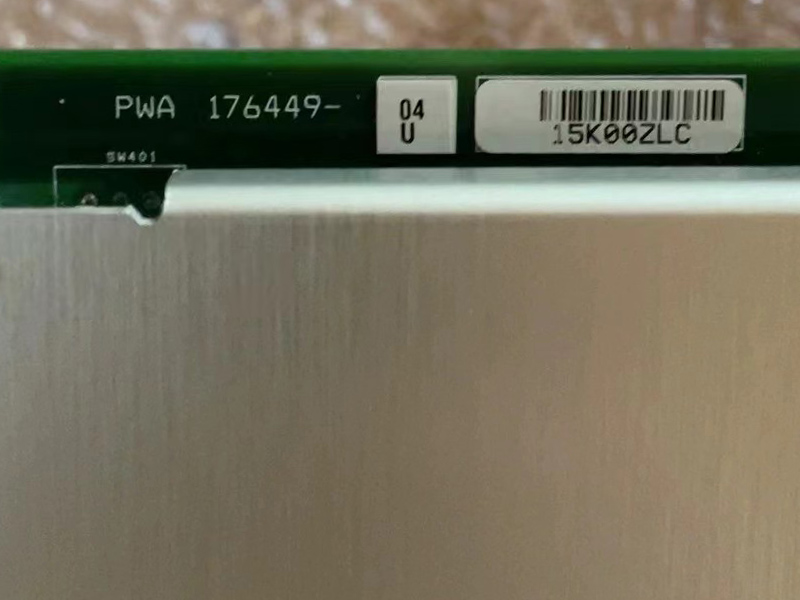

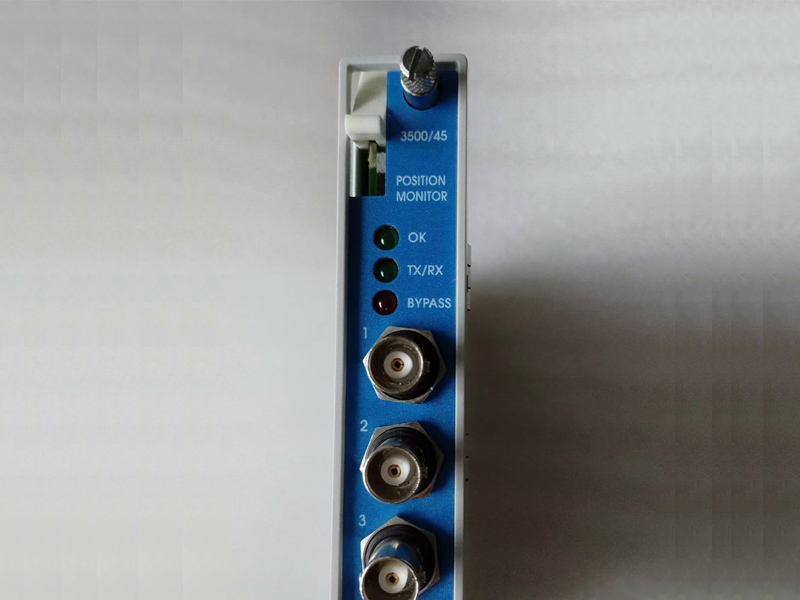

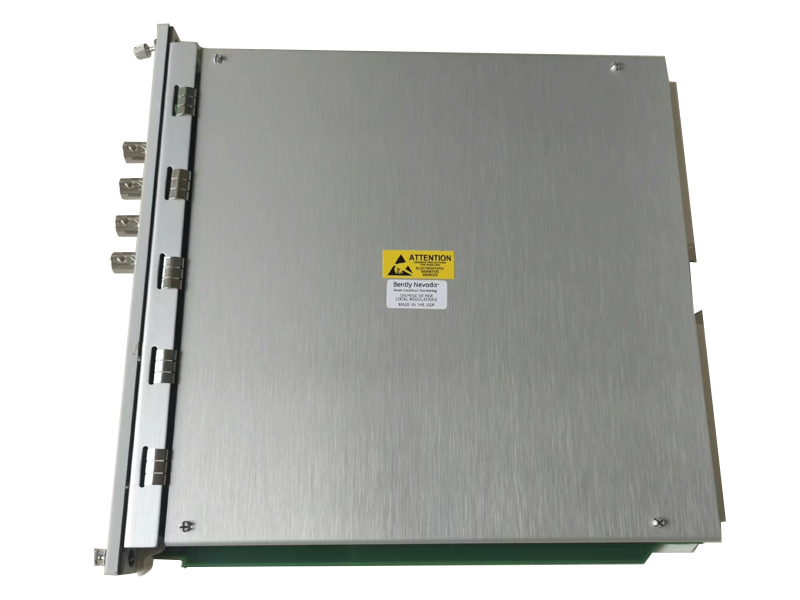

Bently Nevada 3500/45 Position Monitor 176449-04
Description:
176449-04 is 3500/45 Position Monitor. It requires 1 full-height rear slot. The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms.
Specifications:
Signal: Accepts from 1 to 4 signal inputs
Power consumption: 7.7 watts, typical, using Position I/O, or 8.5 watts typical, using AC LVDT I/O or 5.6 watts typical, using Rotary Potentiometer I/O
Input Impedance:  1 MΩ (DC LVDT inputs)10 kΩ (Proximitor or RPT inputs)137 kΩ (AC LVDT inputs)200 kΩ (Rotary Potentiometer inputs)
1 MΩ (DC LVDT inputs)
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm

You can program each channel using the 3500 Rack Configuration Software to perform the following functions:
· Axial (thrust) Position
· Differential Expansion
· Standard Single Ramp Differential Expansion
· Non-standard Single Ramp Differential Expansion
· Dual Ramp Differential Expansion
· Complementary Differential Expansion
· Case Expansion
· Valve Position

The primary purpose of the 3500/45 Position Monitor is to provide the following:
· Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
· Essential machine information for operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.


Ordering Information:

Spares:

176449-04 3500/45 Position Monitor

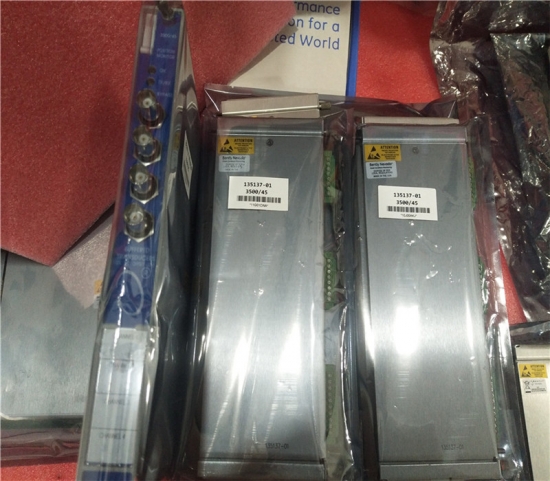

135137-01 Position I/O Module with Internal Terminations for use with Proximitors, RPTs or DC LVDTs
135145-01 Position I/O Module with External Terminations for use with Proximitors, RPTs or DC LVDTs
139554-01 AC LVDT Position I/O Module with Internal Terminations for use with AC LVDTs
139567-01 AC LVDT Position I/O Module with External Terminations for use with AC LVDTs
139978-01 Rotary Potentiometer Position I/O Module with Internal Terminations for use with Rotary Potentiometers
139991-01 Rotary Potentiometer Position I/O Module with External Terminations for use with Rotary Potentiometers

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
