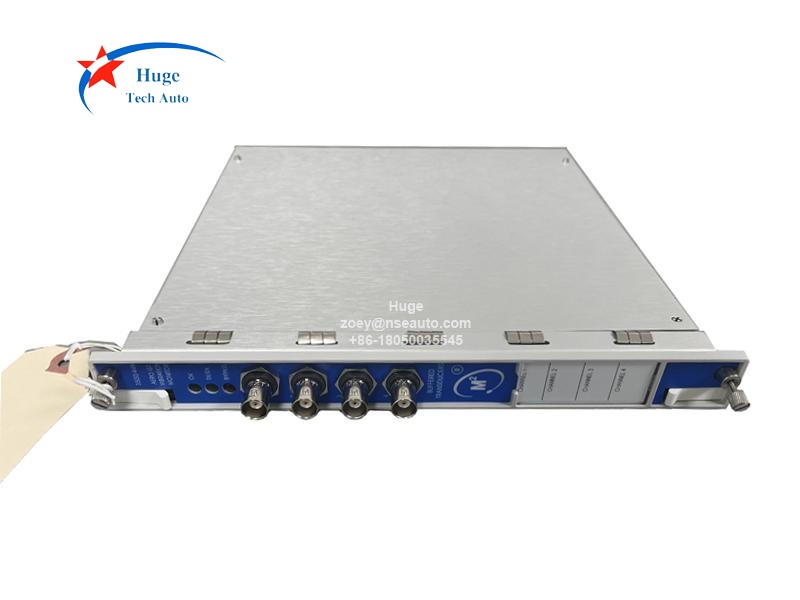

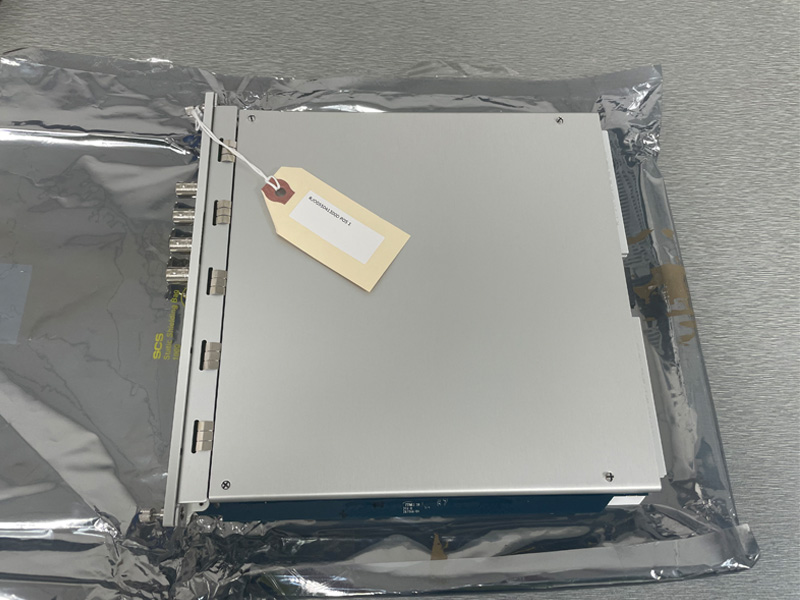

Bently Nevada 3500/44M 176449-03 Aeroderivitive GT Vibration Monitor
Bently Nevada 3500/44M 176449-03 Aeroderivitive GT Vibration Monitor
Brand:
Bently Nevada TSIItem NO.:
176449-03Order(MOQ):
1 PCPayment:
T/TProduct Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time:
IN STOCKWarranty:
1 year
Bently Nevada 3500/44M 176449-03 Aeroderivitive GT Vibration Monitor
Description:
The 3500/44M Aeroderivitive GT Vibration Monitor is a four-channel instrument designed for aeroderivative gas turbine applications. It:
Continuously monitors machinery by comparing monitored parameters against configured alarm setpoints to drive alarms
Communicates essential machine information for both operations and maintenance personnel
The 3500/44M 's Aero GT I/O modules interface to Velomitor sensors and accelerometers through Bently Nevada interface modules. The monitor uses the Prox/Velom I/O to interface to our.
Using the 3500 Rack Configuration Software, you can configure the 3500/44M Aeroderivitive GT Vibration Monitor for the following filter options:
Signal Integration
1X vibration tracking
Band-pass vibration
The 3500/44M Aeroderivitive GT Vibration Monitor accepts input from two separate Keyphasor signals, allowing each channel pair to use a different tracking filter.
You can configure multimode channels to have up to eight sets of alarm parameters including alert and danger setpoints and alarm time delays. Each set may be configured for a specific machine mode.
As the machine changes modes, the monitor can switch to a specific set using contacts on multimode I/O modules or software commands through a communications gateway.
Ordering Informaiton:
3500/44-AA-BB
Spares:
176449-03 3500/44M Aeroderivitive GT Vibration Monitor
143490-01 3500/44M Aeroderivitive GT Vibration MonitorUser Guide
126599-01 Aero GT I/O Module Internal Terminations
140471-01 Prox/Velom I/O Module with Internal Terminations
140482-01 Prox/Velom I/O Module with External Terminations
169459-01 Multimode Prox/Velom I/O Module with Internal Terminations
169459-02 Multimode Prox/Velom I/O Module with External Terminations
