Bently Nevada 3500/32M 149986-02

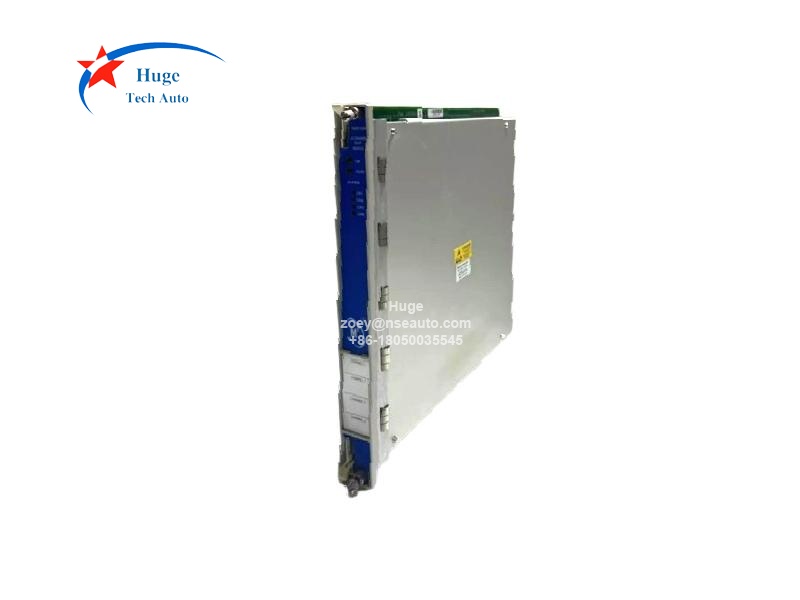

Bently Nevada 3500/32M Spare 4-Channel Relay Control Module 149986-02

Brand:
Bently Nevada TSI
Item NO.:
149986-02
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price:
$999
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
0.7 kg
Warranty:
1 year

Product Detail

Bently Nevada 3500/32M Spare 4-Channel Relay Control Module 149986-02
Description:
3500/32M 149986-02 is Bently Nevada 4-Channel Relay Module, it is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform voting logic.
Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic.
Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.

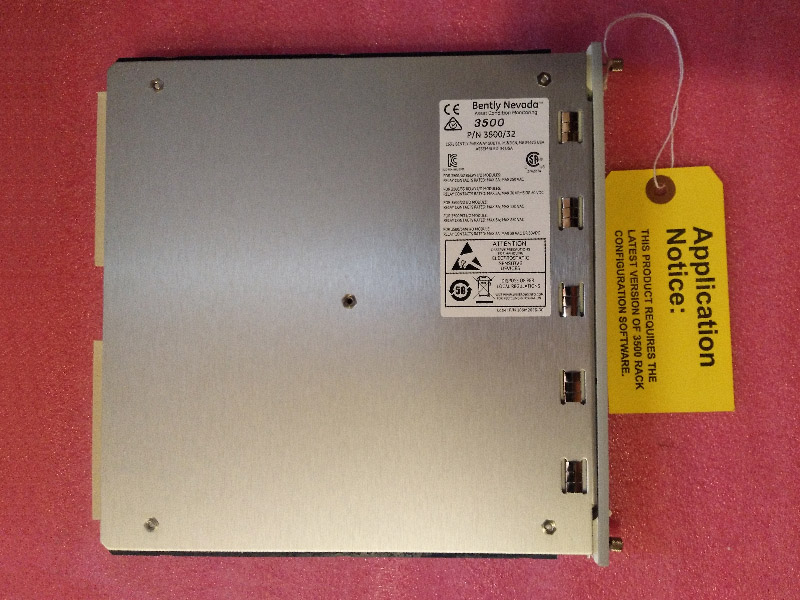

The 3500/32M Relay Modules provide a set of relays that can be programmed to actuate based on alarm conditions in other monitor modules in the rack. The /32M module (left photo) uses double pole double throw (DPDT) relays. The /32M module has 4 DPDT relay channels .
Although relay modules are not a required component of the 3500 System, we strongly recommend using them as the most appropriate way to integrate the 3500 System with automatic shutdown applications. Any number of relay modules can be placed in any of the slots to the right of the TDI.
3500 System Configuration software facilitates programing “Alarm Drive Logic” that controls relay actuation. This logic can be based on various combinations of alarms, ranging from an individual channel’s Alert, Danger, or NOT OK status to highly complex Boolean expressions that combine two or more channel statuses to provide special AND or OR voting.

Ordering number:
3500/32 -AXX-BXX
A: Output Module
01 4-Channel Relay I/O Module
B: Agency Approval Option
00 None
01 cNRTLus (Class I, Div 2)
02 ATEX/IECEx/CSA (Class I, Zone 2)
Spares

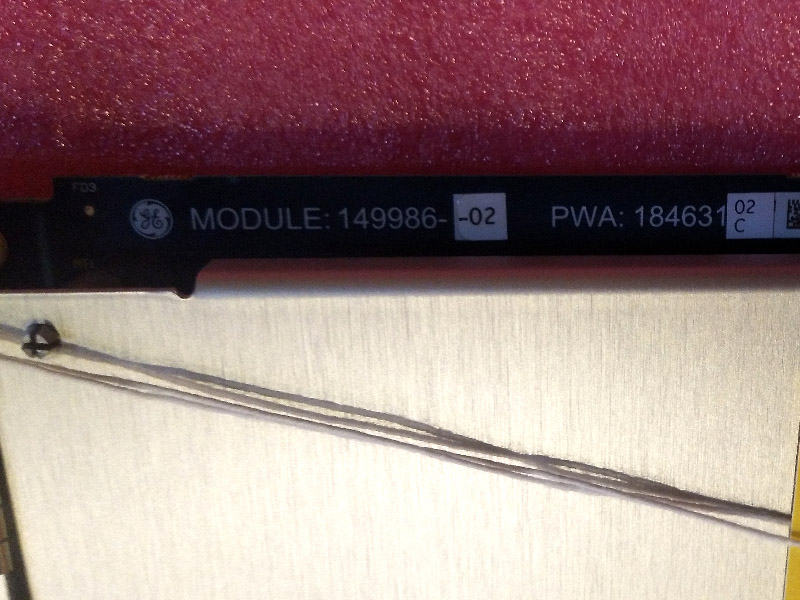

149986-02 Spare 4-Channel Relay Control Module
125720-01 Spare 4-Channel Relay Output Module
125720-02 Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems
166M2390 Connector header, push-in-spring type (alternative for PN 00580436)
