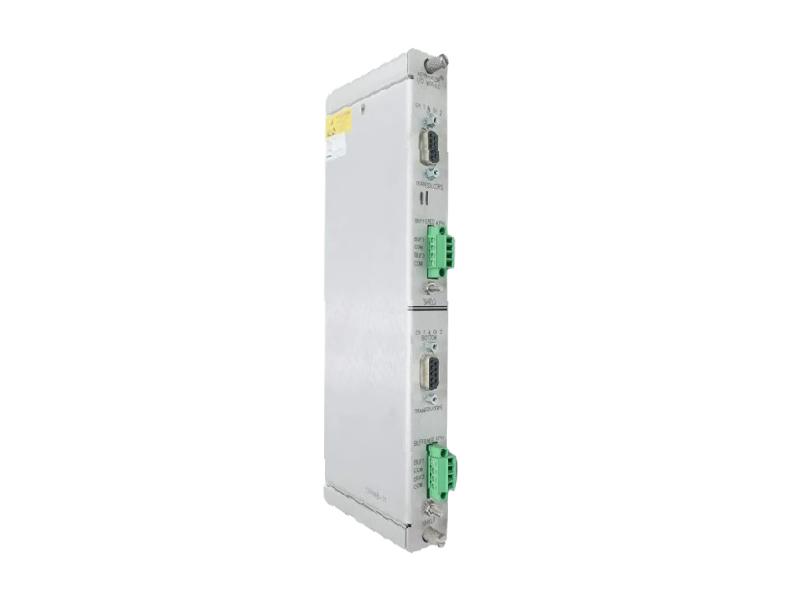

Bently Nevada 3500/25-01-02-00 126648-01 Keyphasor I/O Module (External Terminations)
Description:

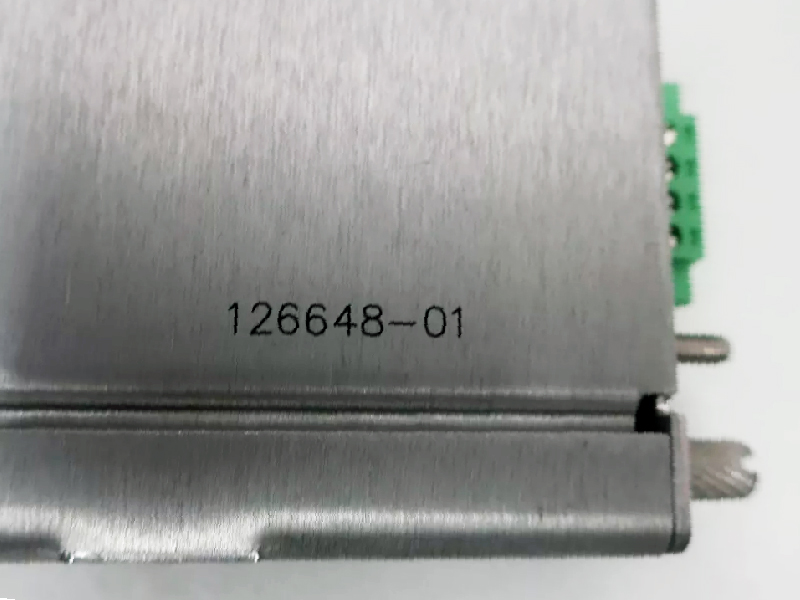

126648-01 is 3500/25 Keyphasor Module Non-Isolated External Termination Keyphasor I/O Module. When installed, 126648-01 need 1 full-height rear slot.
External Termination Keyphasor I/O Modules simplifies the wiring to the Keyphasor I/O Modules in a 3500 Rack by using a 9-pin cable to route the signals from 2 Keyphasor transducers to the Keyphasor I/O Module.
The 3500/25 is a half-height module that provides power and termination for up to two Keyphasor transducers. When applications require one or two Keyphasor transducers, simply install a single 3500/25 module.
The 3500 System can accommodate up to four Keyphasor transducers per rack by installing two 3500/25 Keyphasor modules in the rack.
When two 3500/25 Keyphasor modules are used, they must be installed in the same rack slot, one above the other.
Keyphasor signals from the 3500/25 module(s) can be routed to appropriate monitor modules via the 3500’s rack backplane for use in speed, phase, tracking filter, and other measurements.
Dimensions: 241.3 mm x 24.4 mm x 103.1 mm
Ordering Information:
149369-01 Enhanced Keyphasor Module
125800-01 Keyphasor I/O Module (Internal Terminations)
126648-01 Keyphasor I/O Module (External Terminations)
125800-02 Isolated Keyphasor I/O Module (Internal Terminations) (Designed for use with Magnetic Pickups)
126648-02 Isolated Keyphasor I/O Module (External Terminations) (Designed for use with Magnetic Pickups)
135473-01 Keyphasor I/O Module (Internal Barriers and Internal Terminations
