Bently Nevada 3500/22M Data Interface Module 138607-01

138607-01 is the Standard Transient Data Interface Module of3500/22M

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    138607-01
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

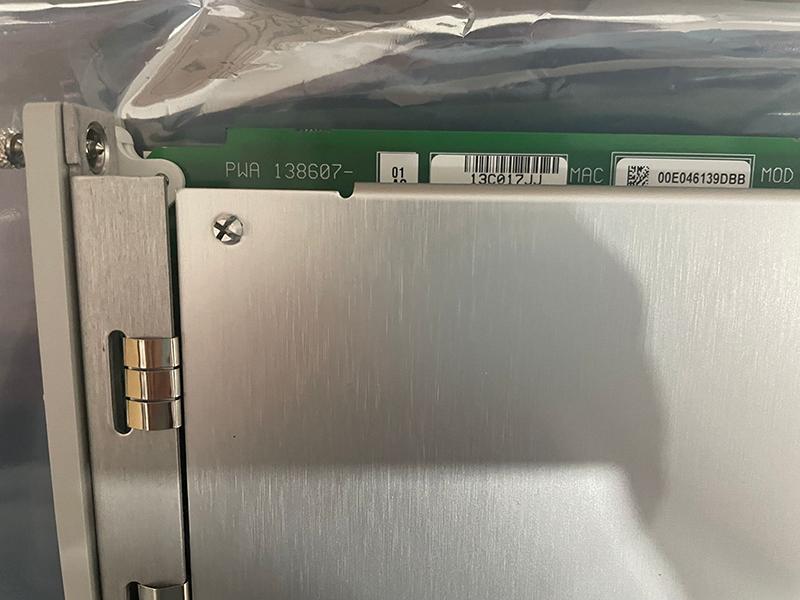

Bently Nevada 3500/22M Data Interface Module 138607-01

Description:

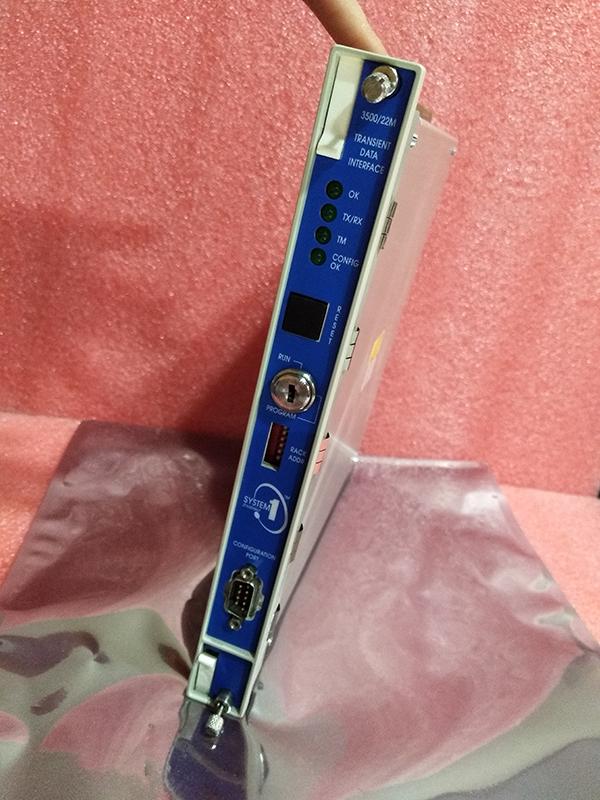

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.


The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.

Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).


Ordering Information:

3500/22-AA-BB-CC

A: Transient Data Interface Type

01

Standard (use for standard monitoring applications)

B: I/O Module Type

01

10Base-T/100Base-TX Ethernet

02

100Base-FX (Fiber Optic) Ethernet

03

10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts

04

100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts

C: Agency Approval

00

None

01

CSA/NRTL/C (Class 1, Division 2)

02

Multi (CSA, ATEX, IECEx)

Declaration of Conformity:


3500/22

138607-01/288055-01

Standard Transient Data Interface Monitor Module

138607-02/288055-02

TMR Transient Data Interface Module with USB cable

146031-01

10Base-T/100Base-TX I/O Module

146031-02

100Base-FX (Fiber Optic) I/O Module

146031-03

10Base-T/100Base-TX I/O Module (GLD RLY)

146031-04

100Base-FX (Fiber Optic) I/O Module (GLD RLY)

147364-01**

Buffered Signal Output Module
