Bently Nevada 3500/15 power supply 106M1081-01

Bently Nevada 106M1081-01 3500/15-05-05-00 power supply

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    106M1081-01
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

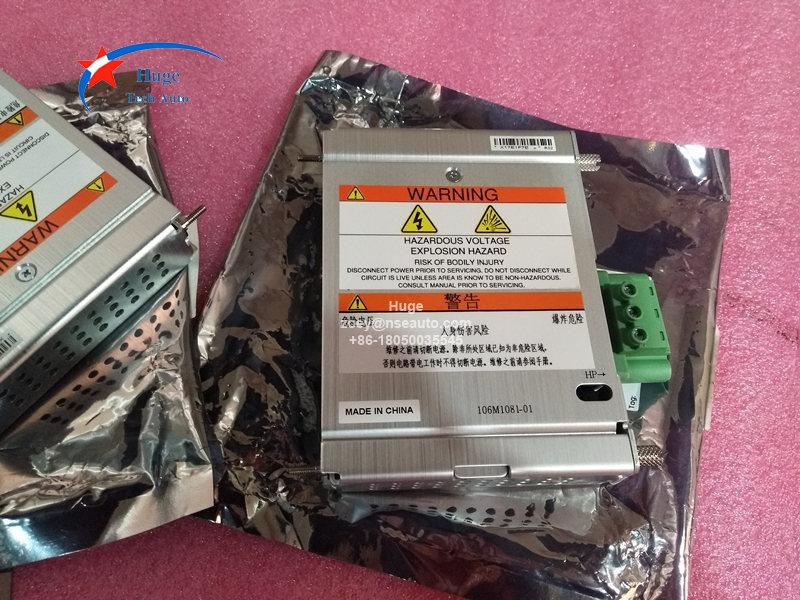

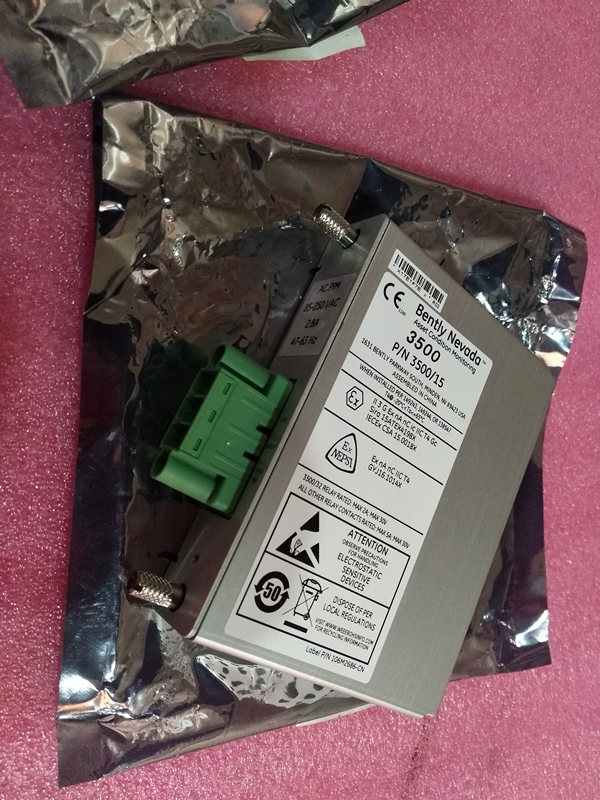

Bently Nevada 3500/15-05-05-00 power supply 106M1081-01
Description:

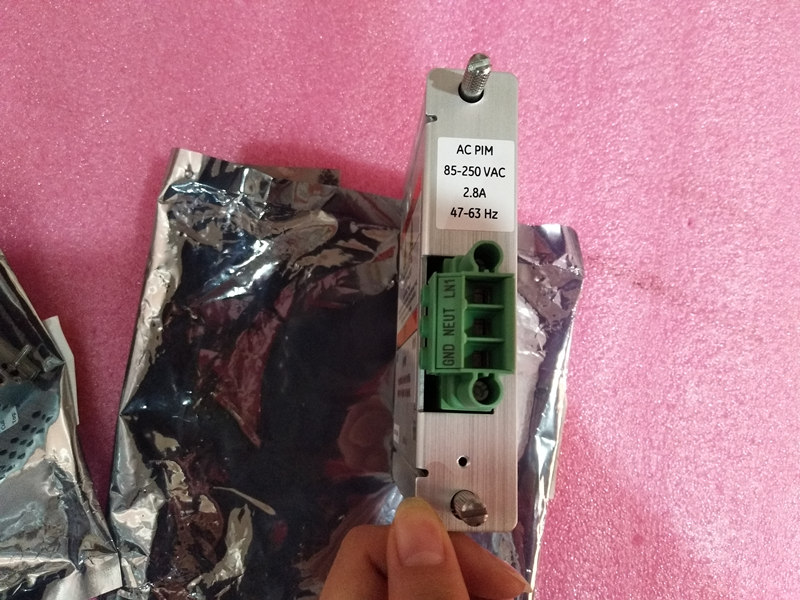

106M1081-01 is designed as Bently Nevada 3500/15-05-05-00 Universal AC Power Input Module.
The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply
Ordering Information:
3500/15 -AA-BB-CC
A: Power Supply Type (Top Slot)
03   Legacy High Voltage DC (88 to 140 Vdc)
04   Legacy Low Voltage DC (20 to 30 Vdc)
05   Universal AC Voltage (85 to 264 Vac rms)
B: Power Supply Type (Bottom Slot)
00   No Supply (Used when no supply is required)
03   Legacy High Voltage DC (88 to 140 Vdc)
04   Legacy Low Voltage DC (20 to 30 Vdc)
05   Universal AC Voltage (85 to 264 Vac rms)
C: Agency Approval
00   None
01   CSA / NRTL / C (Class 1, Division 2)
02   ATEX / IECEx / CSA (Class 1, Zone 2)
Spares:
106M1079-01 Universal AC Power Supply Module
106M1081-01 Universal AC Power Input Module
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
