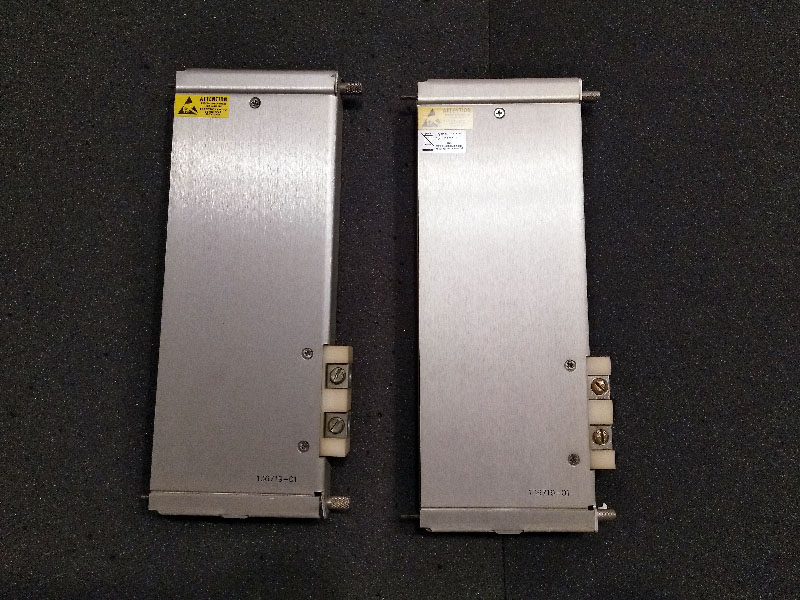

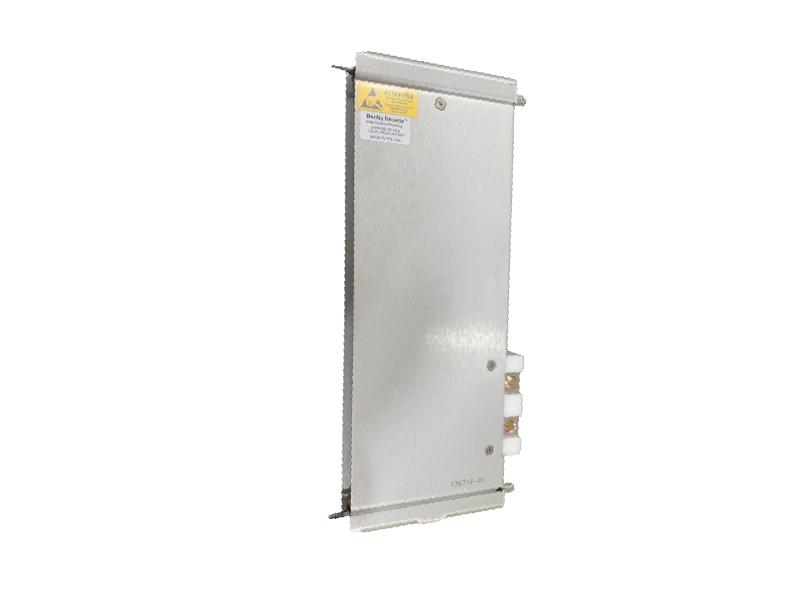

Bently Nevada 3500/04 Internal Barriers 136719-01 Earthing I/O Module
Description：
3500 Internal Barriers are intrinsically safe interfaces that provide explosion protection for transducer systems connected directly to the 3500 Machinery Protection System.
The internal barriers are fully compatible with the 3500 System and provide a convenient and cost-effective solution for installing all types of transducer systems within a hazardous area.
Bently Nevada offer transducer systems with comprehensive approvals for hazardous area installations. The transducer systems are matched to those of the 3500 Internal Barriers.
Each component complies both individually and as part of a system with the safety requirements of North American and international standards. Hence, you don't have to reference individual certificates to verify the compatibility between components.
Standard and internal barrier monitors can reside within the same 3500 rack. You can upgrade standard monitors by replacing existing I/O modules with those that contain internal barriers.
Internal barrier I/O modules have an increased depth over that of standard barrier I/O modules. Consider the rack position with respect to adjacent modules to ensure that you can easily access the I/O modules during maintenance.
Internal barrier I/O and IS Earthing modules can occupy any general-purpose rack position and can be adjacent to standard I/O module types without compromising the 50 mm (2 in) physical separation requirement between safe and hazardous area field wiring.
Follow these guidelines when positioning I/O modules:
Group all internal barrier I/O modules in adjacent rack positions to simplify the installation.
Place the IS Earthing Module in a rack position that provides easy access for routine online maintenance.
Consider the IS Earthing Module's positioning relative to adjacent internal barrier I/O modules and cabinet bulkheads.
If you plan to install standard I/O modules or the IS Earthing Module between a pair of internal barrier I/O modules, allow a minimum of two rack positions so that you can easily access the standard I/O or IS Earthing Module online without disturbing the adjacent I/O modules.
Ordering Information：
136719-01
Earthing I/O Module
138257-01
Earthing Module Front Panel
135473-01
3500/25 I/O Module with Internal Barriers and Internal Terminations
135489-01
3500/42, /70, /72 I/O Module with Internal Barriers (4 prox/accel channels) and Internal Terminations
135489-02
3500/42, /70 I/O Module with Internal Barriers (2 prox/accel + 2 Velomitor channels) and Internal Terminations
135489-03
3500/42, /70 I/O Module with Internal Barriers (4 Velomitor channels) and Internal Terminations
135489-04
3500/40 I/O Module with Internal Barriers and Internal Terminations
136703-01
3500/50 I/O Module with Internal Barriers and Internal Terminations
136711-01
3500/60 I/O Module with Internal Barriers and Internal Terminations
136711-02
3500/61 I/O Module with Internal Barriers and Internal Terminations
137110-01

3500/62 I/O Module with Internal Barriers and Internal Terminations
