Bently Nevada 330878-90-00 is 3300 XL 50 mm Proximity Transducer System Proximitor Sensor 9.0 metres system length, panel mount
Bently Nevada 330878-90-00 is 3300 XL 50 mm Proximity Transducer System Proximitor Sensor 9.0 metres system length, panel mount
Brand:
Bently Nevada TSIItem NO.:
Bently Nevada 330878Order(MOQ):
1Payment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time:
IN STOCK

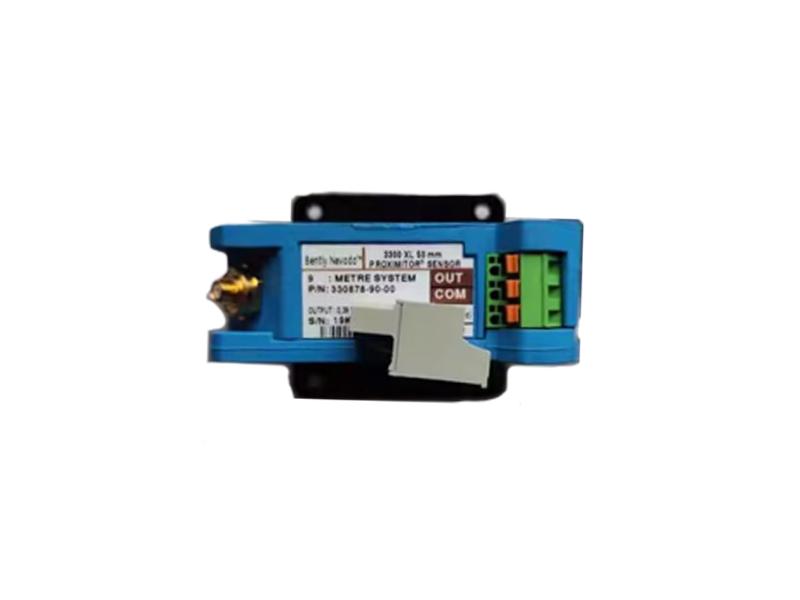

Bently Nevada 330878-90-00 3300 XL 50 mm Proximitor Sensor
Description:
The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor* Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).
The 3300 XL 50 mm Proximitor Sensor1 has the same advanced features as all 3300 XL Proximitor Sensors. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
Ordering Information:
