Bently Nevada 330400-02-05 Accelerometer

Bently Nevada 330400-02-05 Accelerometer

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    330400-02-05
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Market Price:

    999
  • Price:

    $999
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    In stock
  • Weight:

    100 g
  • Warranty:

    1 year
Product Detail

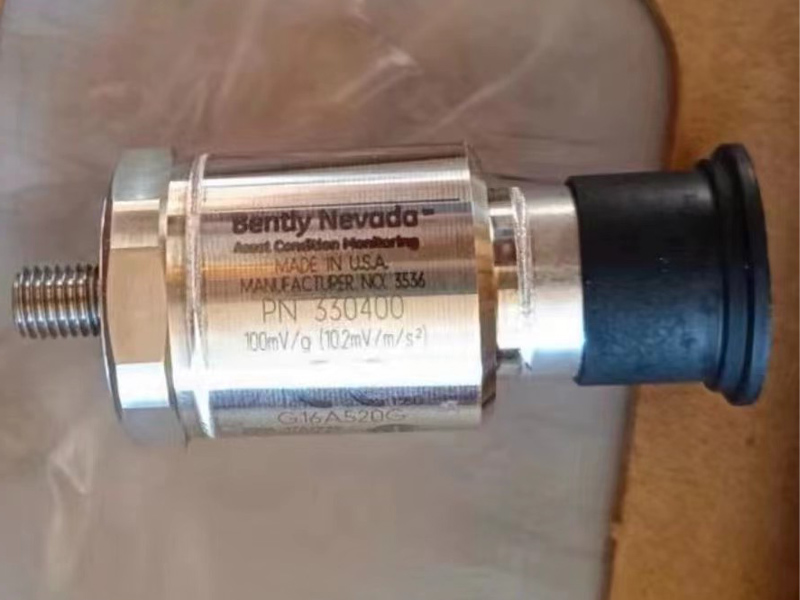

Bently Nevada 330400-02-05 Accelerometer
Description:
330400-02-05 accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g.
In addition, care should be exercised in the physical installation of the transducer. Improper installation can result in a degradation of the transducer’s performance, and/ or the generation of signals which do not represent actual machine vibration. Integration of the output to velocity can worsen this. Extreme caution should be exercised if integrating to velocity. For high quality velocity measurements the 330500 Velomitor Sensor should be used.
Upon request, we can provide engineering services to determine the appropriateness of housing measurements for the machine in question and/or to provide installation assistance.
Electrical
Sensitivity: 10.2 mV/m/s2 (100 mV/g) ±5%.
Acceleration range: 490 m/s2 (50 g) peak overall acceleration within the 10 Hz to 15 kHz frequency span. Vibration at frequencies above 15 kHz, especially at the transducers resonance will significantly decrease this range.
Amplitude Linearity: ±1% to 490 m/ s2 (50 g) peak.
Broadband Noise Floor (10 Hz to 15 kHz): 0.039 m/s2 (0.004 g) rms.
Ordering Information:
330400-AA-BB
A: Mounting Thread Option
01 ¼-28 UNF integral stud
0 2 M8 X 1 integral stud
B: Agency Approval Option
00 None
05 Multiple approvals (CSA, ATEX, IECEx,)
Related items:
330400-02-00
330400-02-CN

330400-02-05
