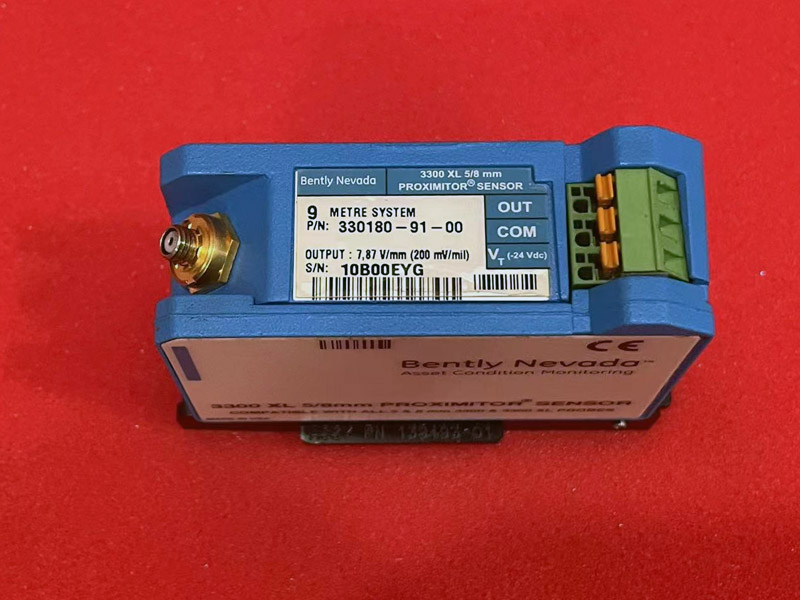

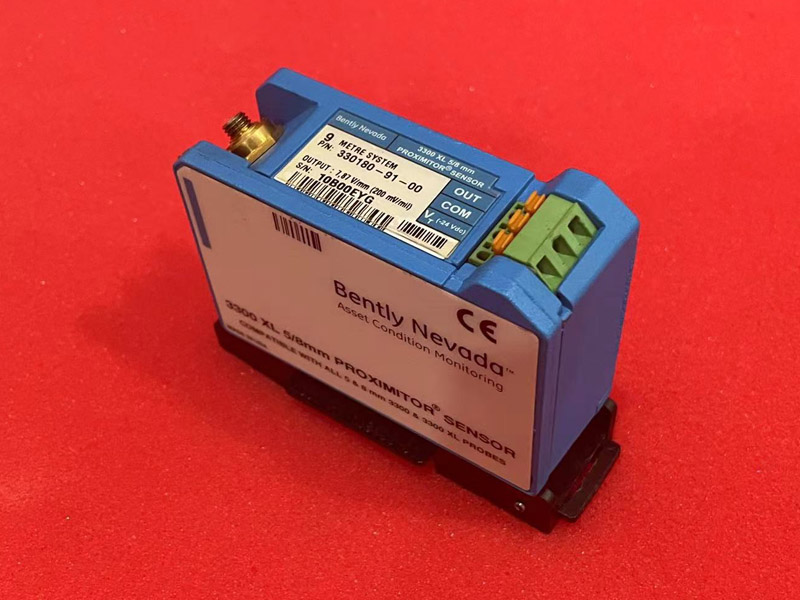

Bently Nevada 330180-91-00 3300 XL Proximitor Sensor
Description:
330180-91-00 Bently Nevada 8mm Proximitor Sensor. It is a Proximitor Sensor with 9.0 meters (29.5 feet) system length, panel mount.

The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.

The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

Ordering Information:
330180-AA-BB
A: Total Length and Mounting Option
10 1.0 meter (3.3 feet) system length, panel mount
11 1.0 meter (3.3 feet) system length, DIN mount
12 1.0 meter (3.3 feet) system length,no mounting hardware
50 5.0 meters (16.4 feet) system length, panel mount
51 5.0 meters (16.4 feet) system length, DIN mount
52 5.0 meters (16.4 feet) system length, no mounting hardware
90 9.0 meters (29.5 feet) system length, panel mount
91 9.0 meters (29.5 feet) system length, DIN mount
92 9.0 meters (29.5 feet) system length, no mounting hardware
B: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
